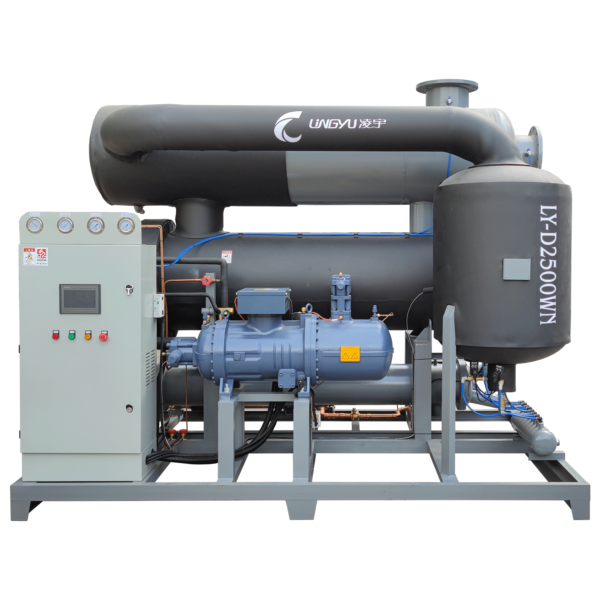

250m³Water-cooled high temperature refrigerated dryer

Reliable OEM Compressed Air Dryer Manufacturer In China

250m³Water-cooled high temperature refrigerated dryer

  1. High stability: core components – two devices are independently produced, compressors are mainly Panasonic, Copeland, Danfoss, Hanbell and other well-known brands, and well-known brand refrigeration accessories are also equipped;
  2. Good treatment effect: equipped with an independent water distribution system and it is a multiple upgraded version, the water distribution efficiency is guaranteed
  3. Wide application conditions: hydrophilic aluminum foil is used, and the whole series is equipped with heat exchangers and pre-coolers as standard, which can better adapt to harsh working conditions
  4. ntelligent dual system design: 95~180 cubic meters adopt 1+1 dual compressor design, size matching, automatic start and stop of compressor No. 2 according to load, more energy-saving and occasions with large gas fluctuations;
  5. Strong customization ability: color can be customized, PLC is optional, dry contacts, Modbus communication, Internet of Things communication, etc. can be customized according to customer needs
Get a quote

Product Details

Operating conditions and Technical requirements

  1. Applicable fluid: compressed air/non-corrosive air
  2. Working principle: double-stage pre-cooling, refrigeration, condensation, gas-water separation, heat recovery
  3. Inlet air flow: Std.250 Nm3 /min |15000 Nm3 /Hr
  4. Inlet air pressure: Std.7 bar | Min 6 bar Max:10 bar
  5. Inlet air temperature: Std.50 ℃ | Max: 80℃ Precision filter or oil-water separator required
  6. Working environment temperature: Min 2℃ Max: 45℃
  7. Pressure loss at full load: Std.0.25 bar
  8. Outlet air dew point (standard condition): +2℃～10℃
  9. Cooling and heat dissipation method: water cooling
  10. Cooling water temperature: Std.32℃ | Min 2℃ Max:38℃
  11. Cooling water flow/temperature rise: 89.4 T/h |8℃ Y-type water filter must be installed in front
  12. Cooling water pressure: Min 2 bar Max: 6 bar

Where are compressed air dryers used?

Compressed air dryers play a vital role in various industrial and professional applications, here are just a few examples.

OzoneGeneratorsLaboratory AnalyzersWaveguide DryingEnvironmental ChambersDry Sprinkler SystemsAir Brushing
Pneumatic Automation SystemsOutdoor HVAC ControlsGas ChromatographsMedical Air CompressorsElectronic Chip TestingRobotic Machinery
Dental Air CompressorsDry Nitrogen ReplacementCar Wash ControlsBus Door & Locking SystemsAir BearingsGraphic Printers
CEMS SystemsVortex TubesAir TurbinesFTIR SpectrometersAntenna PressurizationAir Operated Pumps

Lingyu offers much more than top-quality compressed air dryers:

– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.

– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.

Contact us

Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
