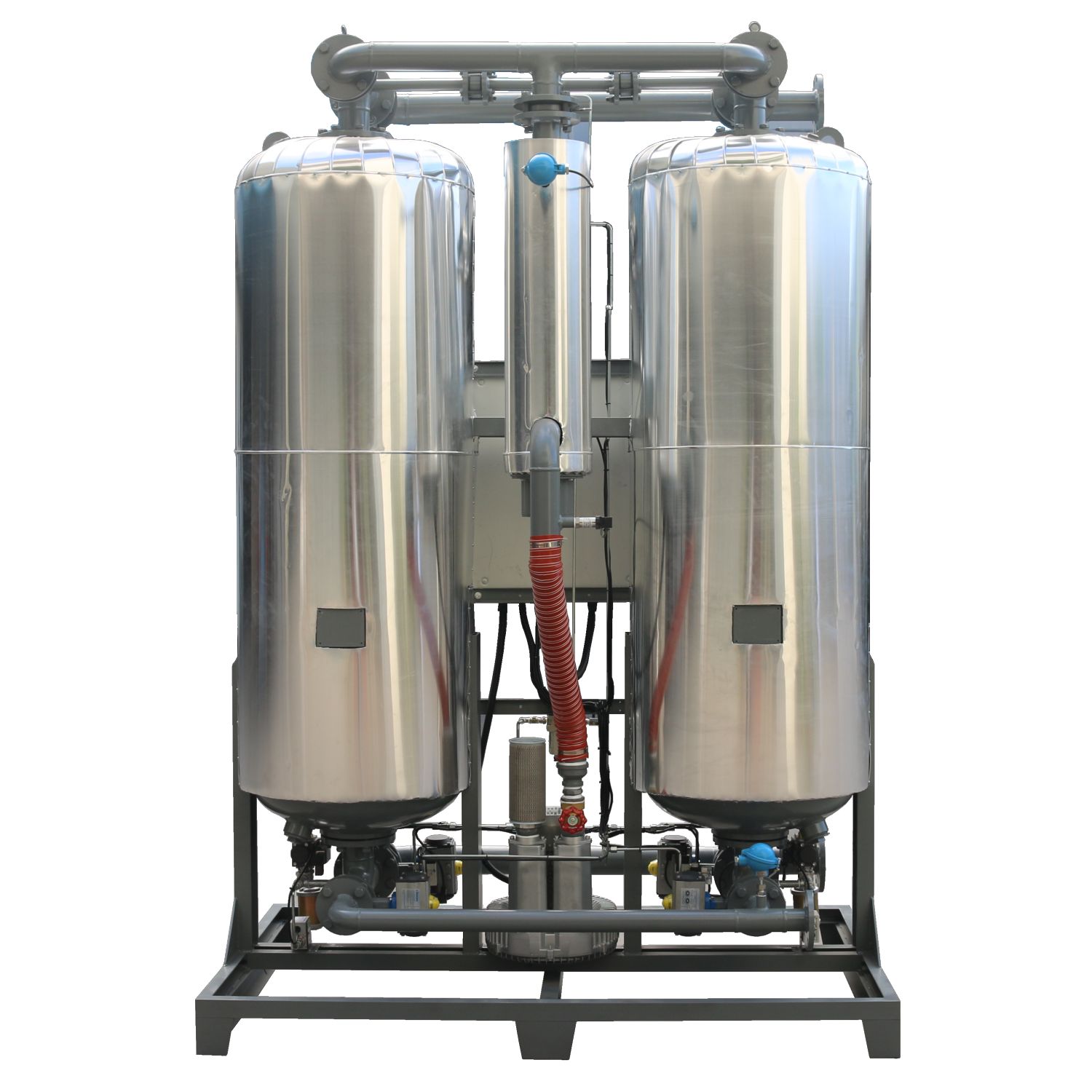

The zero-gas-consumption blast heat regeneration adsorption dryer is based on the micro-gas-consumption blast heat regeneration adsorption dryer, with an additional intermediate cooler. The ambient air sucked in by the blower is heated by the heater to heat the adsorbent to desorb moisture. During the cooling stage, the hot air circulates through the intermediate cooler and the regeneration tower, and the regeneration tower is cooled through a continuous closed cycle. The entire regeneration process does not consume compressed air.

Technical Paramete

• （Low gas consumption）

1. Applicable fluid: compressed air, non-corrosive air
2. Inlet air flow: Std.28.5Nm3/min|1710Nm3/Hr
3. Working principle: TSA temperature swing adsorption + blower thermal purge regeneration, micro air consumption
4. Working cycle: (single tower)≈240min|Max.300min
5. Inlet air pressure: Std.7bar|Min.6barMax.10bar
6. Pressure loss at full load: ≤3% of intake pressure
7. Inlet air oil content requirements: oil-free compressed air or ≤0.1ppm (mg/m3)
8. Inlet air temperature: Std.10～30℃|Min.2℃Max.40℃
9. Pressure dew point: ≤-20℃
10. Working environment temperature: Std.35℃|Min.2℃Max.40℃
