Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).
High Volume Capacity: Supports compressed air flow rates up to 1340 SCFM, ideal for large-scale operations.
Water Cooled System: Efficient heat removal through water circulation, reducing electrical load and improving cooling performance in hot environments.
Stable Dew Point Performance: Delivers consistent pressure dew point between 2–10°C (35.6–50°F).
Energy Efficient: Lower power consumption than air-cooled units in environments with available cooling water.
Compact Design: Smaller footprint compared to equivalent air-cooled models.
Automatic Drain System: Timely removal of condensate to prevent internal water accumulation.
Heavy-Duty Construction: Industrial-grade steel cabinet with rust-resistant finish.

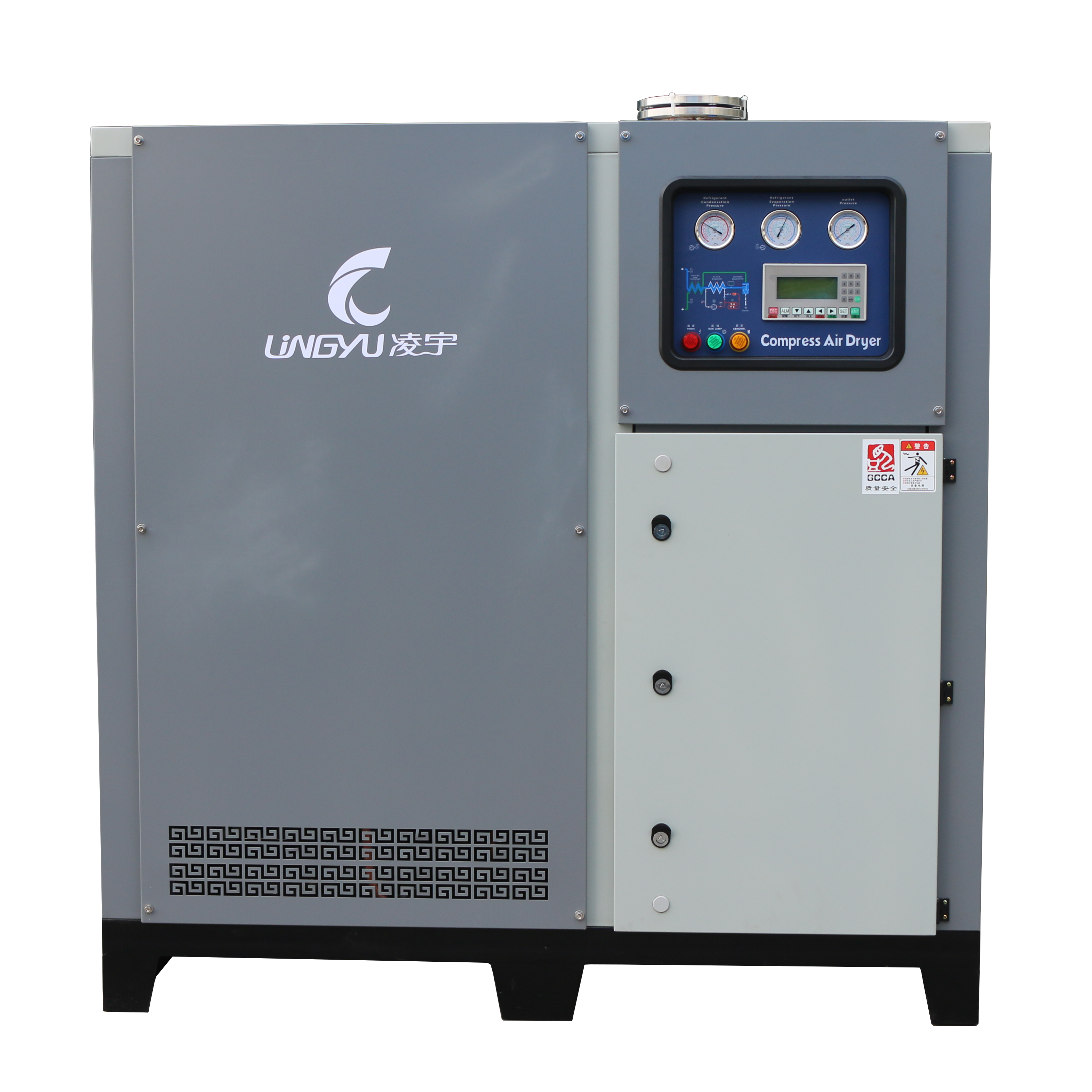

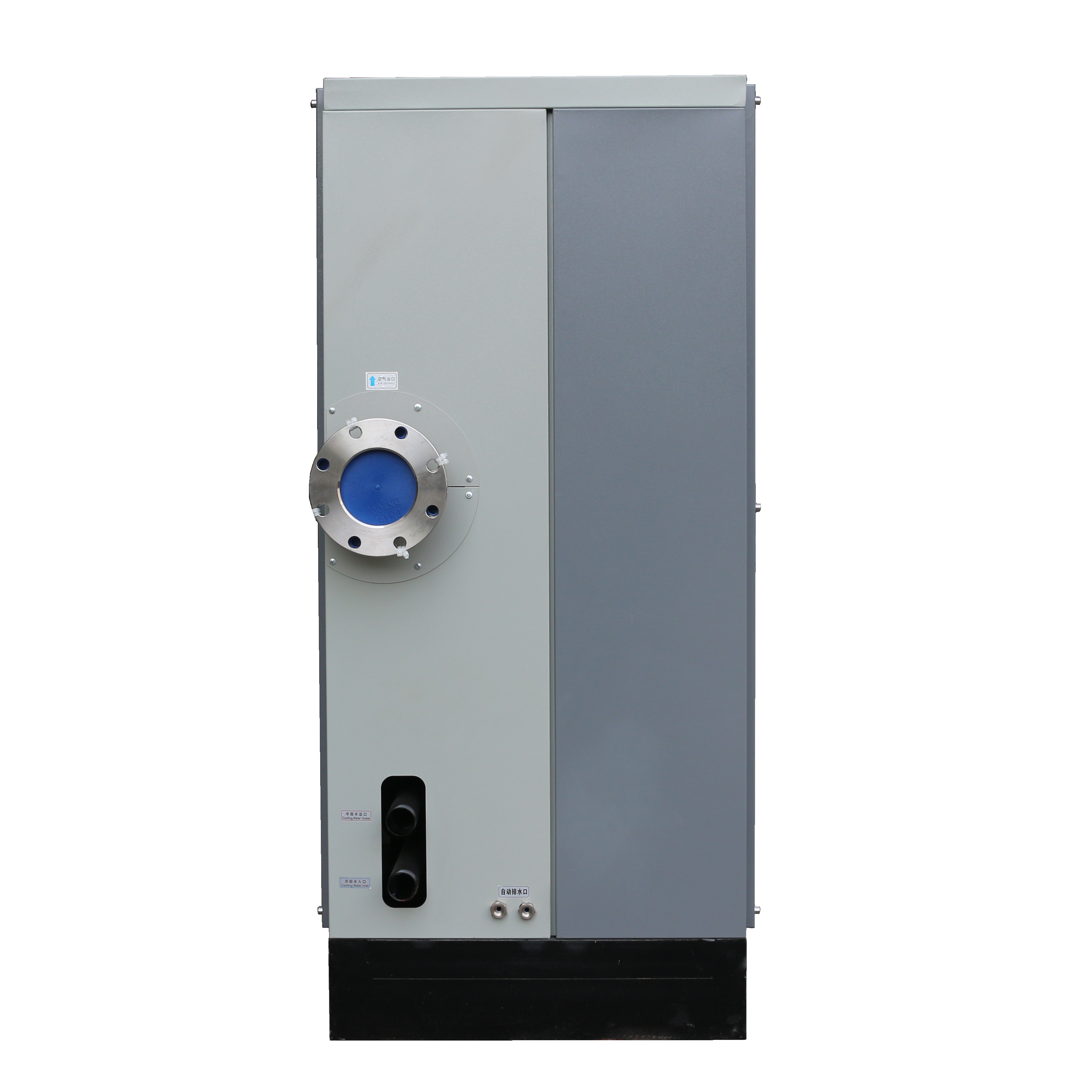

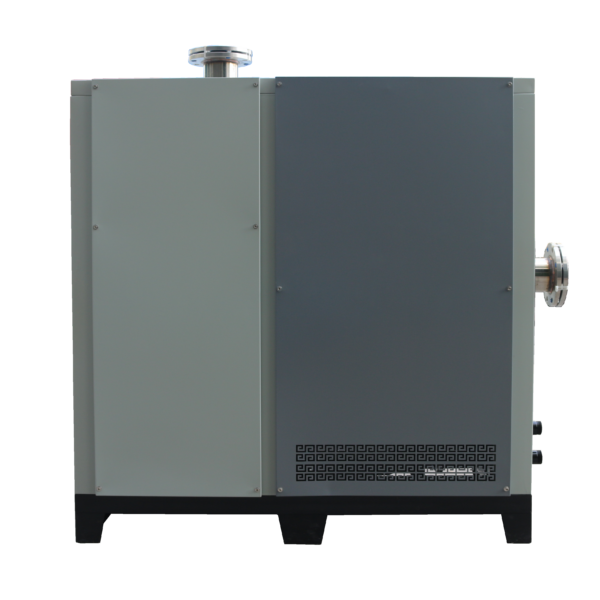

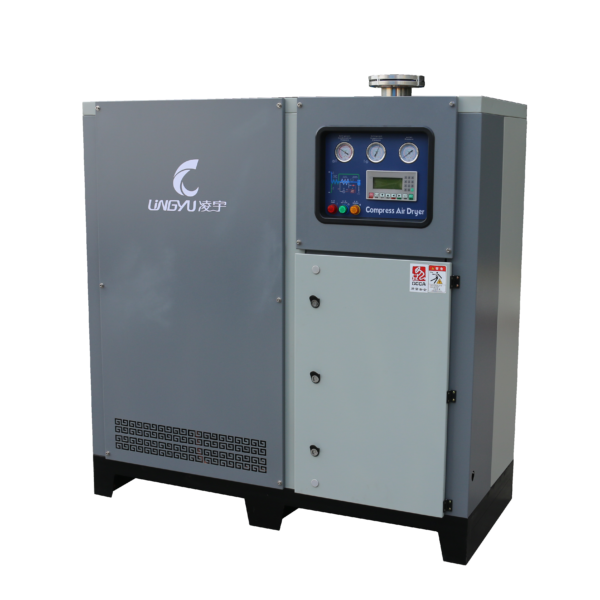

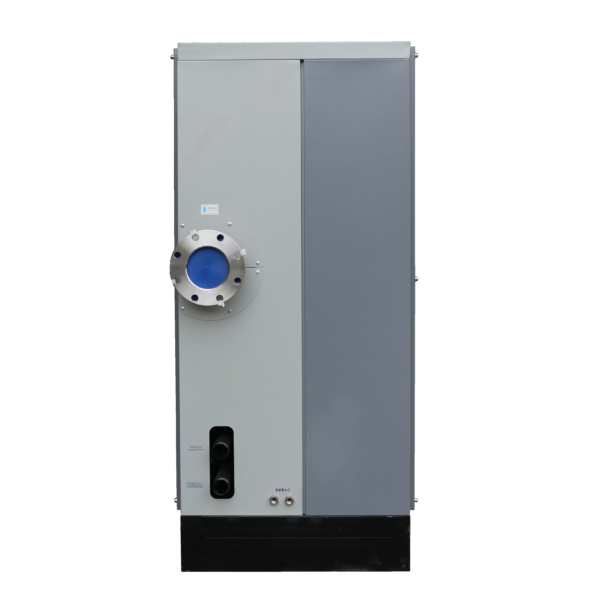

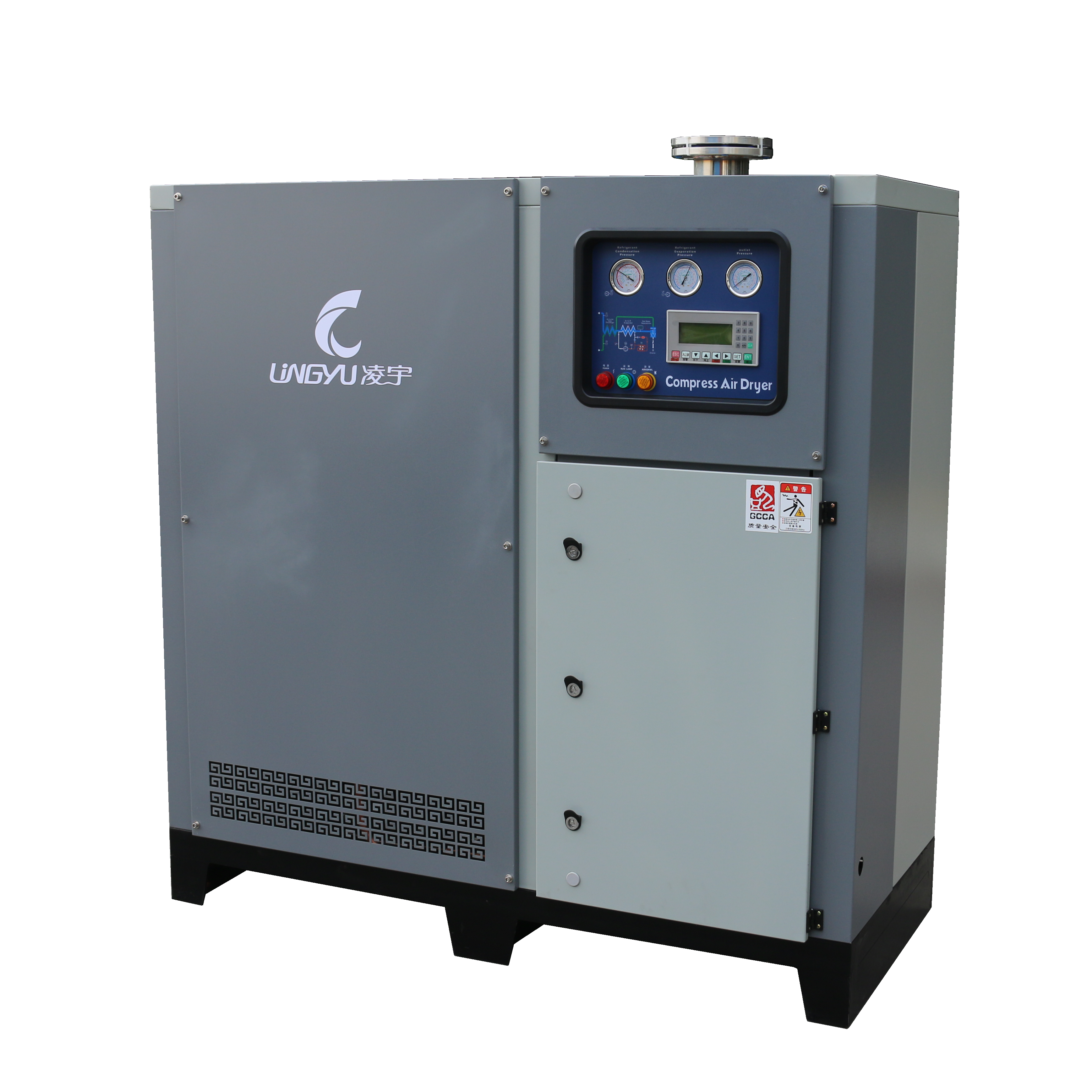

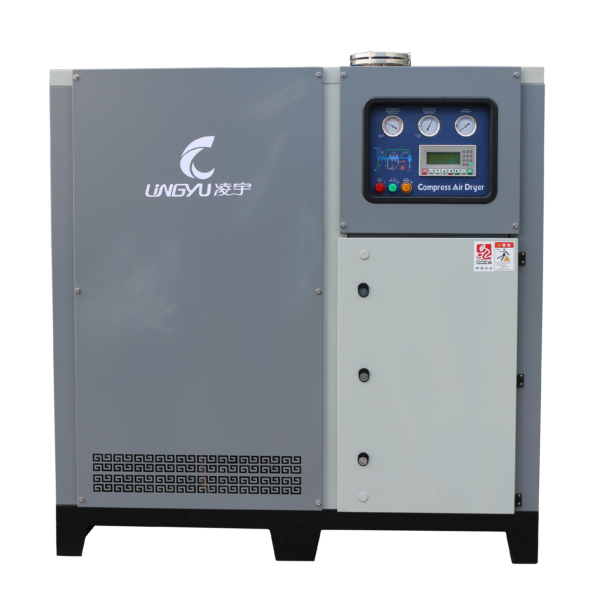

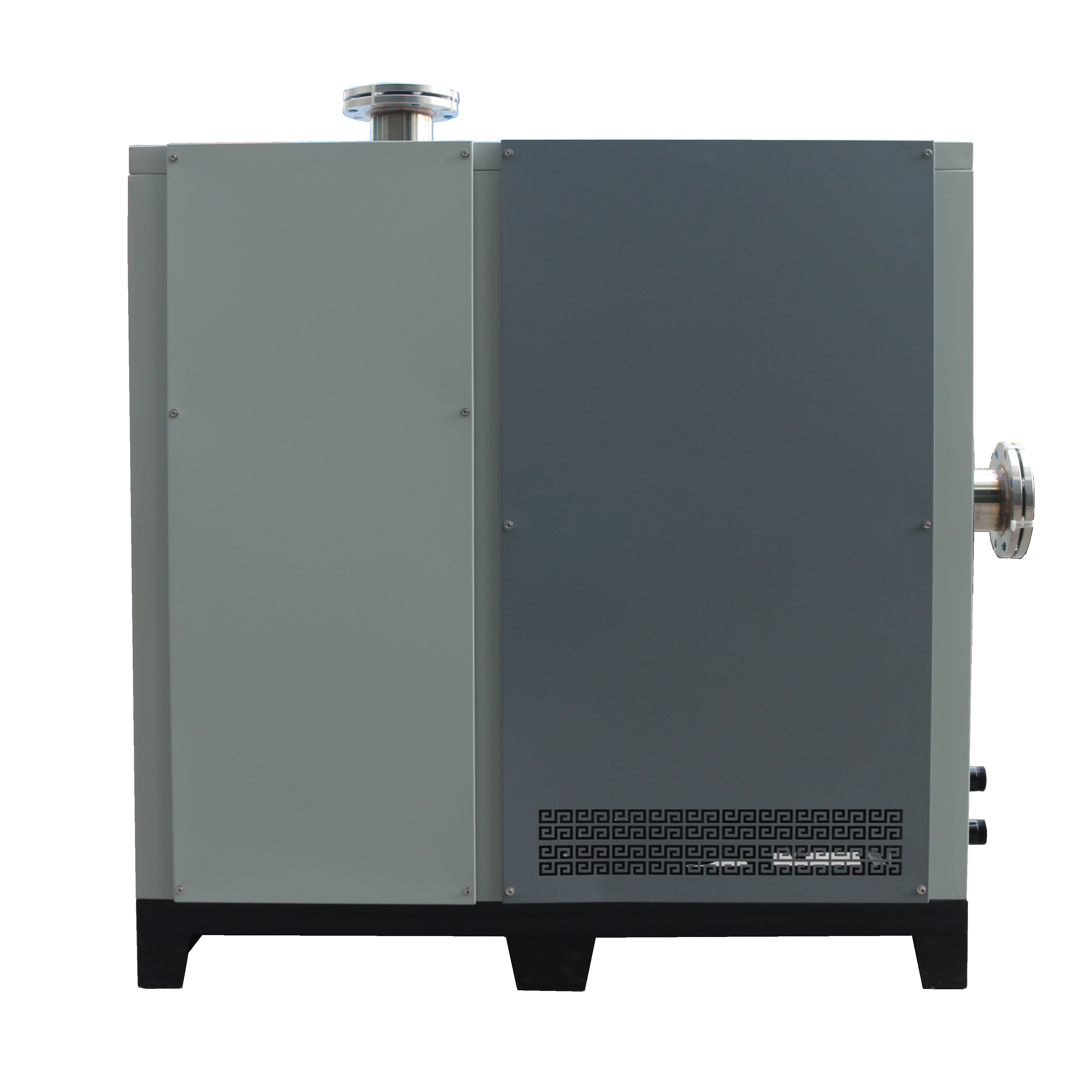

The 1340 SCFM refrigerated air dryer (water cooled) is built for intensive-duty cycles and stable long-term operation.
High-temperature compressed air containing moisture and oil first enters the water-cooled pre-cooler and air-to-air heat exchanger, where it is pre-cooled to reduce its temperature. It then passes through the air-to-refrigerant evaporator, where the compressed air is cooled to a dew point of 2–10°C.
During cooling, moisture, oil, and some impurities condense and are separated from the compressed air by the gas-liquid separator. The condensate is then discharged through an automatic drain valve.
Finally, the dry compressed air passes through the air-to-air heat exchanger, where it is reheated to near ambient temperature, providing clean, dry compressed air for downstream use.
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5 – 45°C (41 – 113°F)
Cooling Water Inlet Temperature: ≤ 32°C (89.6°F)
Cooling Water Flow Rate: Approx. 80–100 L/min
Power Supply: 380V / 3Ph / 50Hz (customizable)
Installation Site: Indoor, clean, and ventilated area
Refrigerant: R407C / R134a (environmentally friendly)
| Model | 1340 SCFM Refrigerated Air Dryer (Water Cooled) |
|---|---|
| Rated Capacity | 1340 SCFM (Standard Cubic Feet per Minute) |
| Cooling Method | Water Cooled |
| Refrigerant | R407C / R134a |
| Max Operating Pressure | 10 bar |
| Pressure Dew Point | 2 – 10°C |
| Power Supply | 380V / 3Ph / 50Hz |
| Water Connection Size | 1″ BSP or customized |
| Air Inlet/Outlet Size | 3″ Flanged |
| Dimensions (L×W×H) | 1900 × 1100 × 1750 mm |
| Weight | 540 kg |
The 1340 SCFM refrigerated air dryer (water cooled) combines cooling efficiency with high flow capacity to meet the toughest industrial demands.
The 1340 SCFM refrigerated air dryer (water cooled) is ideal for:
🏭 Heavy-Duty Manufacturing – Ensures dry compressed air for machine tools and assembly lines
🧪 Chemical & Petrochemical Plants – Moisture-free air for sensitive processes
🚗 Automotive Industry – Supports painting, pneumatic systems, and drying lines
📦 Food & Beverage Processing – Provides hygienic and clean compressed air
🧰 CNC & Metalworking – Prevents corrosion and water damage in precision equipment
💧 Facilities with Water Cooling Systems – Leverages existing cooling infrastructure for maximum energy efficiency
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
High Stability:Key heat exchangers are manufactured in-house. Refrigeration compressors are mainly sourced from well-known brands such as Panasonic, Copeland, Danfoss, and Hanbell, together with high-quality refrigeration components.
High-Efficiency Moisture Separation:Equipped with an independently designed and continuously upgraded water separation system, ensuring reliable and efficient moisture removal.
Wide Operating Range:Hydrophilic aluminum foil is used, while heat exchangers and pre-coolers are standard across the entire series, ensuring reliable operation even under demanding conditions.
Intelligent Dual-Compressor Design:Models from 5 to 180 m³/min feature a 1+1 dual-compressor configuration. The second compressor automatically starts or stops according to system load, improving energy efficiency and adapting to applications with significant fluctuations in air demand.
High Customization Capability:Custom colors and optional PLC control are available. Dry contacts, Modbus communication, IoT connectivity, and other functions can also be customized to meet specific customer requirements.
High Stability:Key heat exchangers are manufactured in-house. Refrigeration compressors are mainly sourced from well-known brands such as Panasonic, Copeland, Danfoss, and Hanbell, together with high-quality refrigeration components.
High-Efficiency Moisture Separation:Equipped with an independently designed and continuously upgraded water separation system, ensuring reliable and efficient moisture removal.
Wide Operating Range:Hydrophilic aluminum foil is used, while heat exchangers and pre-coolers are standard across the entire series, ensuring reliable operation even under demanding conditions.
Intelligent Dual-Compressor Design:Models from 5 to 180 m³/min feature a 1+1 dual-compressor configuration. The second compressor automatically starts or stops according to system load, improving energy efficiency and adapting to applications with significant fluctuations in air demand.
High Customization Capability:Custom colors and optional PLC control are available. Dry contacts, Modbus communication, IoT connectivity, and other functions can also be customized to meet specific customer requirements.
Low energy consumption: the three-in-one plate heat exchanger is adopted, and the whole machine can save 20~30% of energy consumption;
Low pressure drop: the pressure loss of the whole machine is less than 0.015MPa, which is lower than the national standard;
Low dew point: under standard working conditions, the pressure dew point is as low as 2~10℃, and the electronic bypass valve is adopted, making the system more stable;
Environmentally friendly and durable: the whole series adopts environmentally friendly refrigerant R410a/R407C, which meets international environmental standards and has a maximum pressure of 1.6MPa;
Ultra-Low Pressure Drop:The pre-cooler features a newly designed annular tube configuration with approximately three times more tubes than conventional designs. The increased flow area significantly reduces air resistance, resulting in an overall pressure drop of less than 0.1 bar.
Low Dew Point:An optimized integrated 3-in-1 design, combined with a unique water separation system, ensures a consistently low and stable pressure dew point.
Intelligent Control:Equipped with a PLC and touchscreen as standard. The system automatically adjusts the compressor’s refrigeration capacity according to the evaporator load, ensuring optimal and energy-efficient operation. An RS-485 communication interface is also included as standard.
