Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).
Ultra-Low Pressure Drop:The pre-cooler features a newly designed annular tube configuration with approximately three times more tubes than conventional designs. The increased flow area significantly reduces air resistance, resulting in an overall pressure drop of less than 0.1 bar.
Low Dew Point:An optimized integrated 3-in-1 design, combined with a unique water separation system, ensures a consistently low and stable pressure dew point.
Intelligent Control:Equipped with a PLC and touchscreen as standard. The system automatically adjusts the compressor’s refrigeration capacity according to the evaporator load, ensuring optimal and energy-efficient operation. An RS-485 communication interface is also included as standard.
The evaporator core is positioned at the center of the integrated heat exchanger assembly, effectively minimizing cooling loss and providing greater cooling capacity to the pre-cooler.
The newly designed integrated water separator provides highly efficient gas-liquid separation, ensuring effective removal of condensed moisture. Combined with a multi-layer 304 stainless steel wire mesh, it further enhances filtration and separation performance, delivering clean, dry compressed air.
To ensure stable drying performance and reliable long-term operation, the Low Pressure Differential Refrigerated Air Dryer should be used under the following recommended conditions:
For the best operating result, the dryer should be installed in a clean and well-ventilated environment with stable inlet conditions. Proper system matching and suitable pre-filtration help maintain drying efficiency, reduce pressure loss, and protect downstream equipment.
| Model | Airflow Capacity (m³/min) | Total Power (kW) | Connection Size | Weight (A/W, kg) | Overall Dimensions (L × W × H, mm) |
|---|---|---|---|---|---|
| LY-DD30A | 3.8 | 1.50 | G1½” | 202 | 1000 × 600 × 1050 |
| LY-DD50A | 6.5 | 2.50 | G1½” | 222 | 1100 × 600 × 1100 |
| LY-DD75A | 10.5 | 2.70 | G2″ | 276 | 1250 × 700 × 1155 |
| LY-DD100A/W | 13.5 | 3.20 | G2½” | 326 / 320 | 1400 × 800 × 1200 |
| LY-DD120A/W | 17.0 | 4.90 | DN80 | 358 / 352 | 1500 × 950 × 1400 |
| LY-DD150A/W | 21.5 | 5.05 | DN80 | 365 / 359 | 1450 × 800 × 1200 |
| LY-DD180A/W | 25.0 | 5.20 | DN80 | 486 / 473 | 1650 × 940 × 1480 |
| LY-DD200A/W | 28.5 | 6.50 | DN80 | 490 / 477 | 1650 × 940 × 1480 |
| LY-DD250A/W | 32.0 | 6.95 | DN80 | 505 / 492 | 1650 × 940 × 1480 |
| LY-DD300A/W | 37.0 | 9.80 | DN100 | 655 / 642 | 1900 × 980 × 1580 |
| LY-DD400A/W | 45.0 | 9.80 | DN100 | 657 / 639 | 1900 × 980 × 1580 |
| LY-DD500A/W | 55.0 | 12.30 | DN125 | 842 / 824 | 2100 × 1000 × 1700 |
| LY-DD600A/W | 65.0 | 14.50 | DN125 | 842 / 827 | 2100 × 1000 × 1700 |
| LY-DD700A/W | 75.0 | 18.50 | DN125 | 1150 / 1125 | 2400 × 1100 × 1650 |
| LY-DD800A/W | 85.0 | 18.80 | DN125 | 1370 / 1345 | 2400 × 1100 × 1650 |
| LY-DD900A/W | 95.0 | 23.50 | DN150 | 1680 / 1655 | 2450 × 1200 × 2250 |
| LY-DD1100A/W | 110.0 | 28.50 | DN150 | 1850 / 1825 | 2450 × 1200 × 2250 |
| LY-DD1200A/W | 120.0 | 28.50 | DN150 | 1890 / 1865 | 2450 × 1200 × 2250 |
Note: For air volume above 120 m³/min, or for special requirements related to specifications, materials, or operating temperature, please contact our company or dealer for technical support. The above data is for reference only and may change without prior notice.
The Low Pressure Differential Refrigerated Air Dryer is widely used in applications that require stable compressed air drying together with minimal pressure loss and reliable system efficiency.
Provides dry compressed air that helps improve ozone generation stability and protect internal components from moisture.
Suitable for analytical equipment and laboratory systems where clean and moisture-controlled compressed air is required for stable performance.
Helps prevent condensation and corrosion in waveguide systems and related communication equipment.
Used in testing environments where stable dew point control supports accurate simulation and operating consistency.
Supplies dry compressed air for fire protection systems, helping reduce internal corrosion and moisture accumulation.
Provides clean and dry compressed air for sensitive production lines where moisture can affect product quality and equipment reliability.
Suitable for packaging, conveying, and process air applications where dry compressed air supports hygiene standards and stable production conditions.
Used in pneumatic equipment, medical air applications, printing systems, and automated production lines where low pressure drop and reliable air quality are important.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.

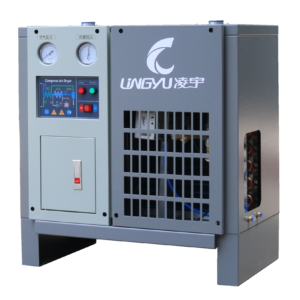

Rated Air Flow
Handles compressed air flow up to 75 CFM, ensuring effective dehumidification.
Air-Cooled System
No water cooling required, simplifying installation and maintenance.
Stable Dew Point
Maintains a consistent 2–10°C (35.6–50°F) pressure dew point for dry, reliable air.
Low Energy Consumption
Optimized refrigeration components minimize power usage while maintaining performance.
Automatic Drain Valve
Continuously removes condensate to prevent water accumulation in the system.
Compact & Durable Design
Space-saving enclosure with powder-coated steel housing ensures long service life.
Easy Operation
Plug-and-play setup with simple control interface and indicator lights.
Compact Capacity Range – Choose from 25, 35, or 50 CFM to match your compressor flow.
Air-Cooled Design – No water connection required; perfect for facilities without cooling water.
Stable Dew Point Control – Maintains 2–10°C (35.6–50°F) dew point for consistent dryness.
Energy Efficient – Equipped with low-power refrigeration systems for cost savings.
Automatic Drain Valve – Discharges moisture automatically.
Plug-and-Play Setup – Quick installation and operation in limited spaces.
Durable Construction – Built with powder-coated steel and corrosion-resistant components.

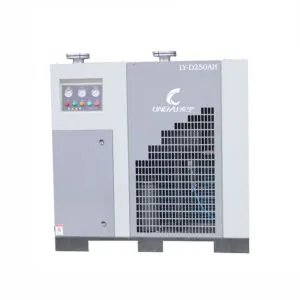

Rated for 200 CFM: Optimized to handle air flow rates up to 200 CFM, ideal for medium-scale operations.
Air Cooled Condenser: No need for cooling water — suitable for flexible installation in any plant environment.
Stable Dew Point: Maintains a consistent pressure dew point between 2–10°C (35.6–50°F).
Efficient Heat Exchanger: Maximizes moisture separation while minimizing pressure loss.
Energy Efficient: Designed to reduce power consumption with high-performance components.
Automatic Drain System: Prevents water accumulation and extends system life.
Compact Design: Space-saving footprint for easy integration into existing systems.
The 200 CFM refrigerated air dryer (air cooled) combines durability and performance to meet the demands of modern compressed air systems.
Low energy consumption: the three-in-one plate heat exchanger is adopted, and the whole machine can save 20~30% of energy consumption;
Low pressure drop: the pressure loss of the whole machine is less than 0.015MPa, which is lower than the national standard;
Low dew point: under standard working conditions, the pressure dew point is as low as 2~10℃, and the electronic bypass valve is adopted, making the system more stable;
Environmentally friendly and durable: the whole series adopts environmentally friendly refrigerant R410a/R407C, which meets international environmental standards and has a maximum pressure of 1.6MPa;
