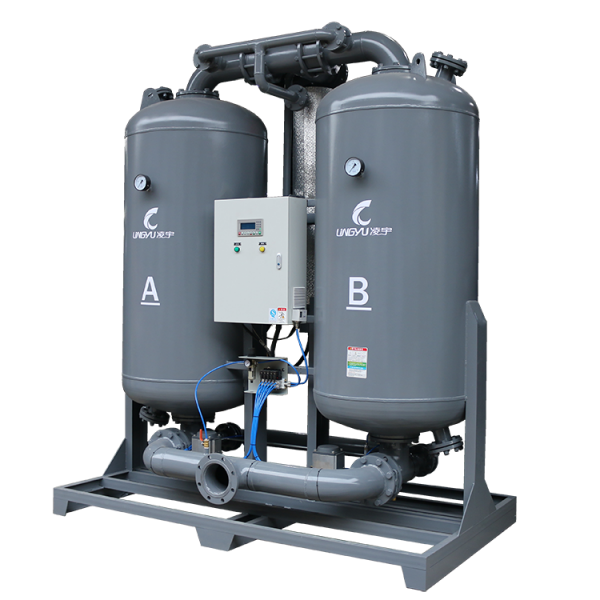

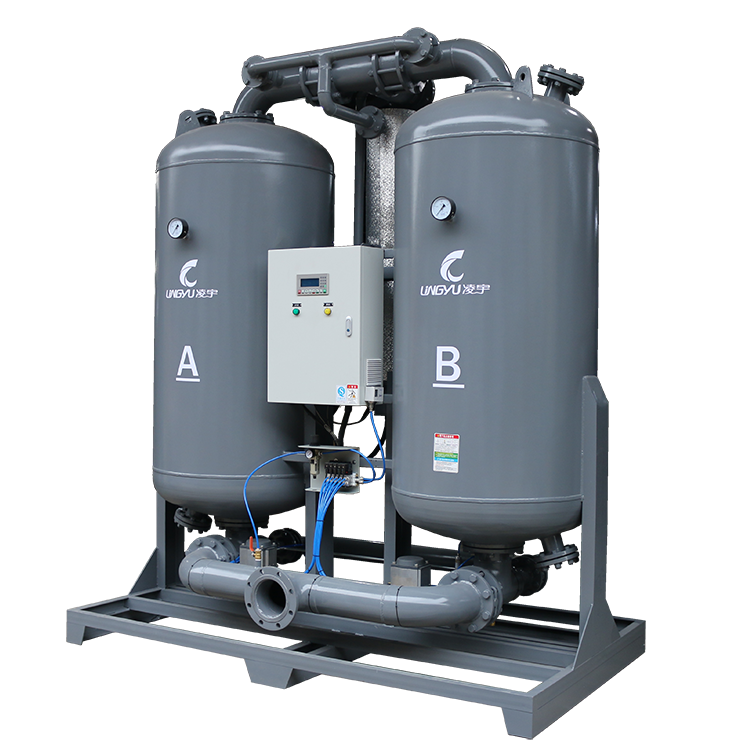

Heated Regeneration adsorption air dryer–HH Series

The micro-thermal regeneration adsorption dryer works according to the principle of temperature swing adsorption, that is, the adsorbent absorbs moisture at normal temperature, and at high temperature the moisture adsorbed by the adsorbent completes “desorption” and returns to the gas phase. This process provides the heat required for desorption from an external heat source and uses part of its own product gas as a heat carrier. In the heating regeneration process, the fact that all the adsorbed moisture returns to the gas phase does not mean that the adsorbent regeneration has been completed. The original adsorption activity is not fully restored until the temperature drops close to the starting value. Therefore, the regeneration process of the micro-thermal regeneration adsorption dryer must be carried out in two steps, that is, “heating and desorption” first, and then “cooling and regeneration”; “desorption” is only one step of adsorbent regeneration.

Operating conditions and Technical requirements

1. Applicable fluids: compressed air, non-corrosive air
2. Rated inlet pressure: 0.7MPa (0.6MPa~1.0MPa is allowed, other pressure levels are accepted for customization)
3. Rated inlet temperature: 10℃~30℃ (limit inlet temperature: ≤40℃)
4. Average regeneration gas consumption: 4%~8%
5. Outlet pressure dew point: ≤-40℃
6. Adsorbent: activated alumina + high-performance molecular sieve
7. Rated ambient temperature: 35℃ (2℃~45℃ can be used)

Technical Paramete

处理量m3/min	电源电压V/Hz	整机功率kW	空气进出口	设备重量kg	外形尺寸(mm)LxWxH
Processing capacity	Power supply and voltage	Total power	Air inlet and outlet	Equipment weight	Dimensions
1.5	380/50	1.7	G1″	125	725×630×1795
2.5	380/50	1.7	G1″	180	840×570×1695
3.8	380/50	2.5	G13”	310	1020×610×1690
6.5	380/50	3.7	G11₂”	436	1160×680×1860
10.5	380/50	3.7	G2″	610	1200×720×2180
13.5	380/50	6.1	G2″	720	1260×780×2230
17.0	380/50	10.0	DN65	850	1350×930×2440
21.5	380/50	10.0	DN80	1000	1470×1000×2270
25.0	380/50	10.0	DN80	1100	1460×1000×2470
28.5	380/50	10.0	DN80	1280	1560×1070×2450
32.0	380/50	13.1	DN80	1350	1600×1050×2650
37.0	380/50	13.1	DN100	1550	1700×1100×2680
41.5	380/50	13.1	DN100	1700	1830×1150×2700
45.0	380/50	20.1	DN100	1830	1830×1150×2790
50.0	380/50	20.1	DN100	2000	2040×1240×2780
55.0	380/50	20.1	DN100	2170	2040×1240×2875
60.0	380/50	27.1	DN100	2460	2130×1300×2790
65.0	380/50	27.1	DN125	2650	2210×1340×2970
75.0	380/50	27.1	DN125	3100	2350×1380×2920
85.0	380/50	34.1	DN125	3200	2350×1380×2920
95.0	380/50	34.1	DN150	4000	2446×1430×3170
110.0	380/50	42.1	DN150	4700	2610×1580×3060
130.0	380/50	50.1	DN150	5140	2900×1400×3079
150.0	380/50	55.1	DN200	6100	3100×1580×3274
Note: If the air volume is greater than 150m³/min or special specifications, materials, or temperature requirements are required, please contact our company or dealer for technical information. The above data is for reference only and is subject to change without prior notice. For other specifications, please contact our company directly.
