Supports customization with a processing capacity of up to 17660 CFM (cubic feet per minute).
Energy Efficient:Low regeneration air consumption of only 5–8%.
Stable Performance:High-quality desiccant is carefully selected to ensure reliable performance and a stable pressure dew point.
Cost-Effective:A full-capacity standby unit can be configured at relatively low cost, while maintenance and servicing costs remain low.
Clean Air & Long Service Life:All surfaces in contact with compressed air are treated with an anti-corrosion oxidation process, effectively preventing secondary contamination of the treated air. This makes the unit particularly suitable for food and pharmaceutical applications, with a service life of up to 30 years.
No Annual Pressure Vessel Inspection Required:The unit is not classified as a pressure vessel subject to mandatory special-equipment inspection and therefore does not require annual pressure vessel reinspection.*
Compact Modular Construction:The integrated structure is manufactured from aerospace-grade magnesium-aluminum extruded alloy, providing a compact and robust design. The unit can pass through standard doorways, making it suitable for installation in a wide variety of locations.
The M Series Modular Desiccant Air Dryer adopts an advanced modular structure based on the conventional twin-tower desiccant dryer design. Its straight-through adsorption chamber design improves desiccant utilization and adsorption efficiency.
The specially designed base incorporates an inlet air buffer chamber, together with a unique “snowstorm” desiccant filling method. This design effectively addresses common problems found in conventional dryers during adsorption and regeneration, including uneven airflow distribution, adsorption dead zones, channeling, and tunneling effects.
It also minimizes desiccant attrition and dusting caused by the impact of compressed air. As a result, the desiccant is more fully utilized, its service life is extended, and a stable pressure dew point can be maintained over long-term operation.
Applicable fluids: compressed air, non-corrosive air
| Model | Air Flow Capacity (m³/min) | Air Connection | Weight (kg) | Power Supply (V/Hz) | Overall Dimensions (L × W × H, mm) |
|---|---|---|---|---|---|
| LY-M10NX | 1.5 | G1″ | 35 | 220V / 50Hz | 460 × 300 × 752 |
| LY-M20NX | 2.5 | G1″ | 60 | 220V / 50Hz | 460 × 300 × 1246 |
| LY-M30NX | 3.8 | G1½” | 70 | 220V / 50Hz | 460 × 300 × 1546 |
| LY-M50NX | 6.5 | G1½” | 190 | 220V / 50Hz | 400 × 778 × 1735 |
| LY-M75NX | 10.5 | G2″ | 285 | 220V / 50Hz | 400 × 952 × 1735 |
| LY-M100NX | 13.5 | G2½” | 375 | 220V / 50Hz | 400 × 1126 × 1735 |
| LY-M120NX | 17.0 | G2½” | 470 | 220V / 50Hz | 400 × 1300 × 1735 |
| LY-M150NX | 21.5 | G2½” | 565 | 220V / 50Hz | 400 × 1474 × 1735 |
| LY-M180NX | 25.0 | G2½” | 660 | 220V / 50Hz | 400 × 1648 × 1735 |
| LY-M200NX | 28.5 | DN80 | 755 | 220V / 50Hz | 762 × 1126 × 1760 |
| LY-M300NX | 37.0 | DN100 | 940 | 220V / 50Hz | 762 × 1300 × 1760 |
| LY-M350NX | 41.5 | DN100 | 1130 | 220V / 50Hz | 762 × 1474 × 1760 |

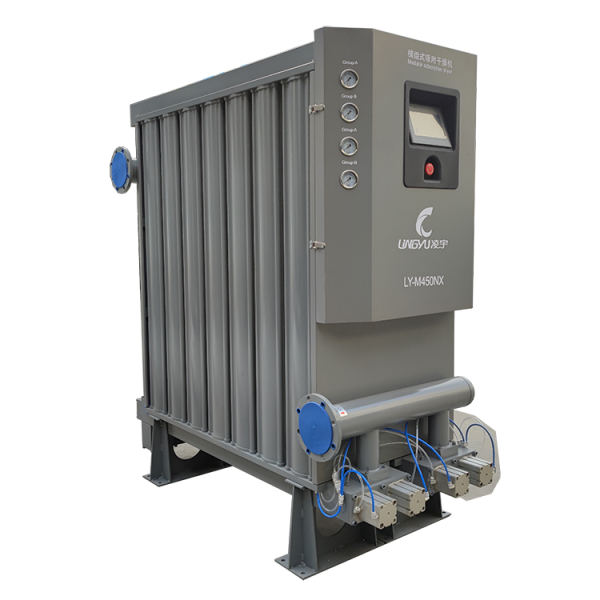

| LY-M450NX | 50.0 | DN100 | 1320 | 220V / 50Hz | 762 × 1648 × 1760 |
| LY-M500NX | 55.0 | DN125 | 1510 | 220V / 50Hz | 762 × 1884 × 1760 |
Note: For air volumes above 55 m³/min, or for special requirements related to specifications, materials, or temperature, please contact our company or dealer for technical support. The above data is for reference only and may change without prior notice. For other specifications, please contact our company directly.
The Modular Adsorption Air Dryer is widely used in industries and compressed air systems that require clean air quality, compact installation, and low maintenance costs.
The anti-rust and oxidation-treated compressed-air contact surfaces help reduce secondary contamination, making the dryer suitable for food processing, packaging, and conveying systems.
Its clean internal design and long-term stable performance make it suitable for pharmaceutical manufacturing processes that demand reliable and contamination-controlled compressed air.
The dryer is suitable for workshops and production facilities that require economical compressed air drying, low maintenance, and long service life.
Because of its integrated modular structure and ability to pass through standard doors, it is especially suitable for sites with limited installation space or projects requiring flexible equipment placement.
Its modular design makes it a practical choice for multiple-point air treatment applications in factories, processing plants, and other industrial venues.
