Supports customization with a processing capacity of up to 70630 CFM (cubic feet per minute).
Fully Automatic Operation:Automatic start/stop and operating-cycle switching provide fully automated system operation.
PLC-Controlled Pneumatic Valves:Pneumatic valve switching is automatically controlled by the PLC, ensuring accurate sequencing and reliable operation.
Real-Time Nitrogen Monitoring:Nitrogen purity and flow rate are continuously monitored online in real time.
Off-Spec Nitrogen Alarm & Protection:An alarm is activated when nitrogen purity falls below the specified value. If the off-spec condition persists for a preset period, the system automatically shuts down for protection.
Automatic CMS Compaction System:Equipped with an automatic Carbon Molecular Sieve compaction device to maintain proper packing density and help prevent CMS pulverization caused by bed movement.
Digital Touchscreen Display:The digital touchscreen provides real-time display and monitoring of key operating parameters, including pressure, nitrogen purity, flow rate, and system operating status.
Energy-Efficient Pressure Equalization:An optimized unequal-pressure equalization process improves nitrogen recovery efficiency and indirectly reduces overall energy consumption by approximately 5%.

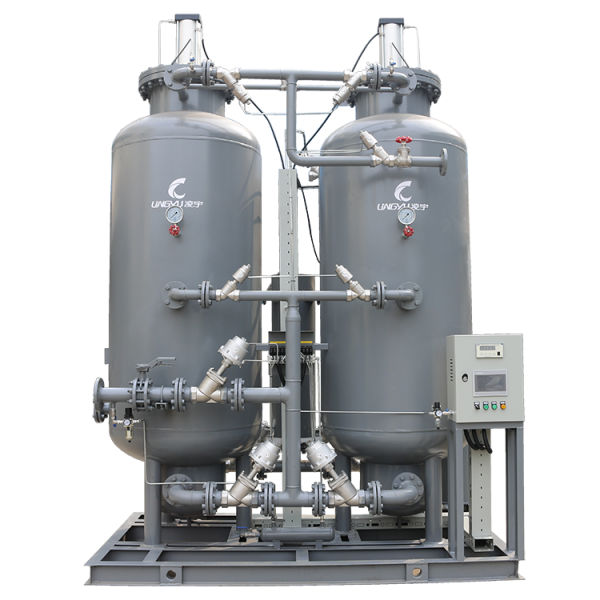

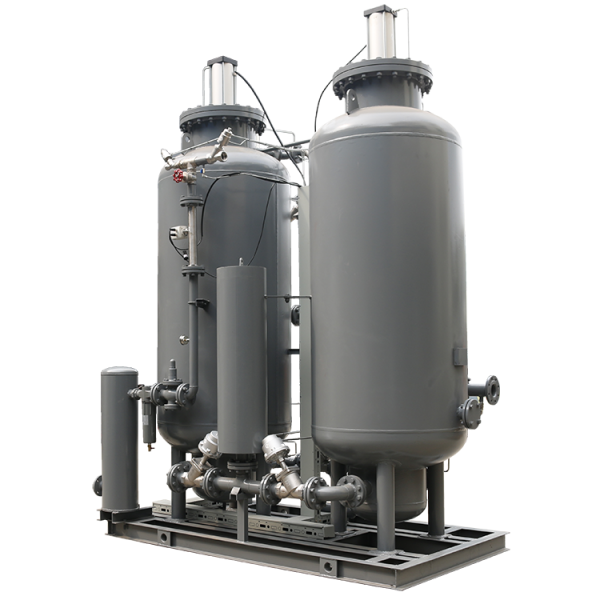

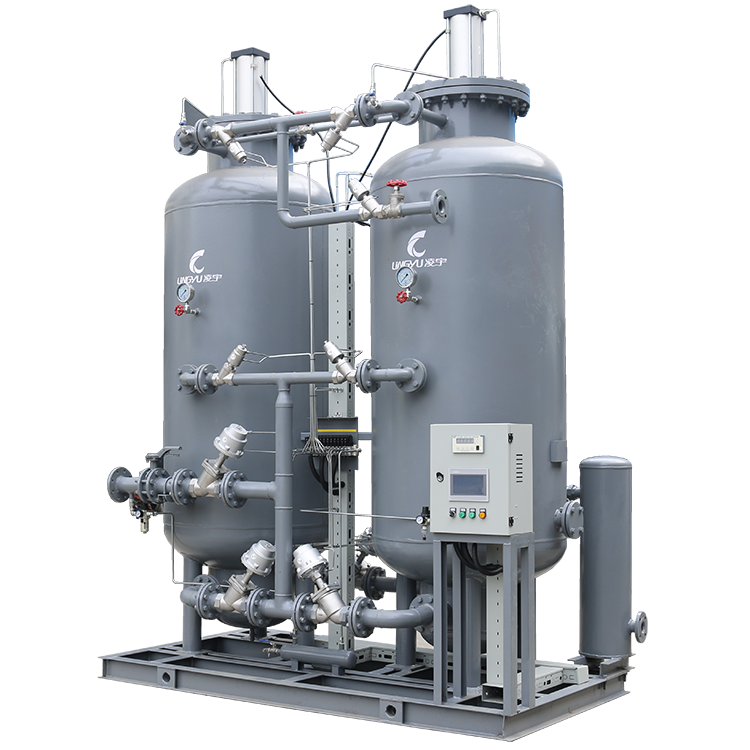

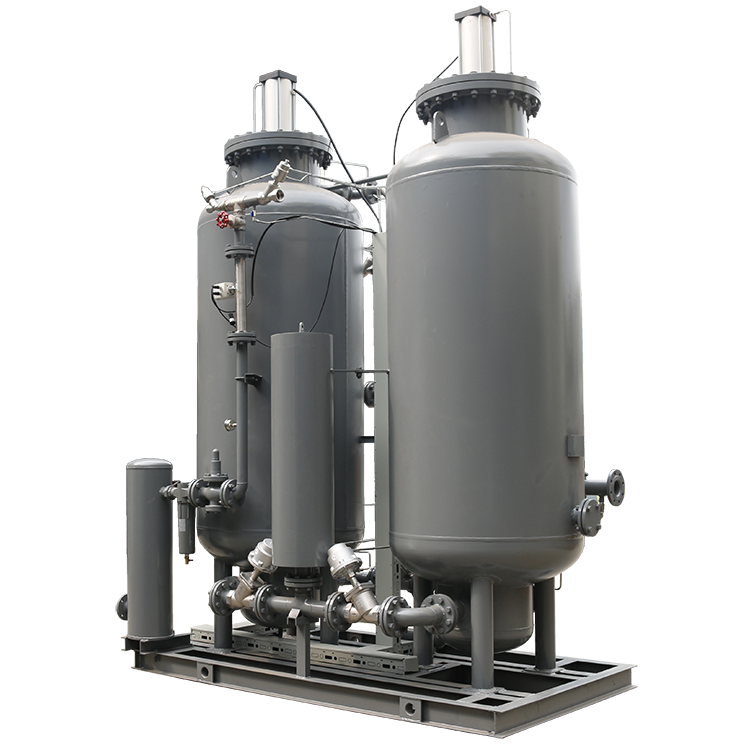

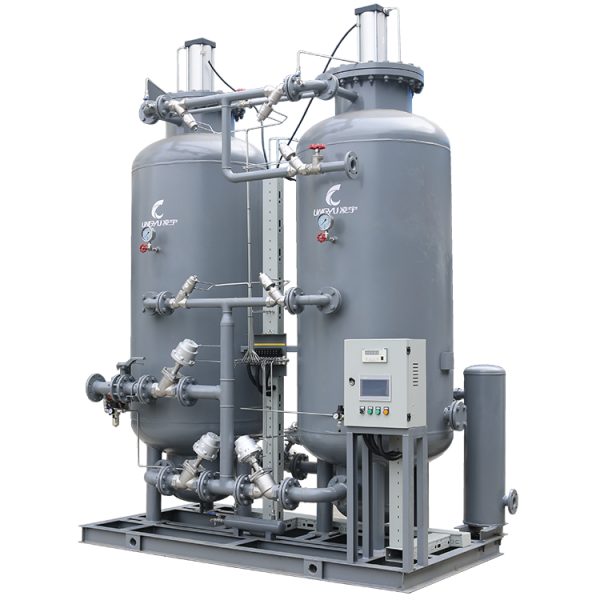

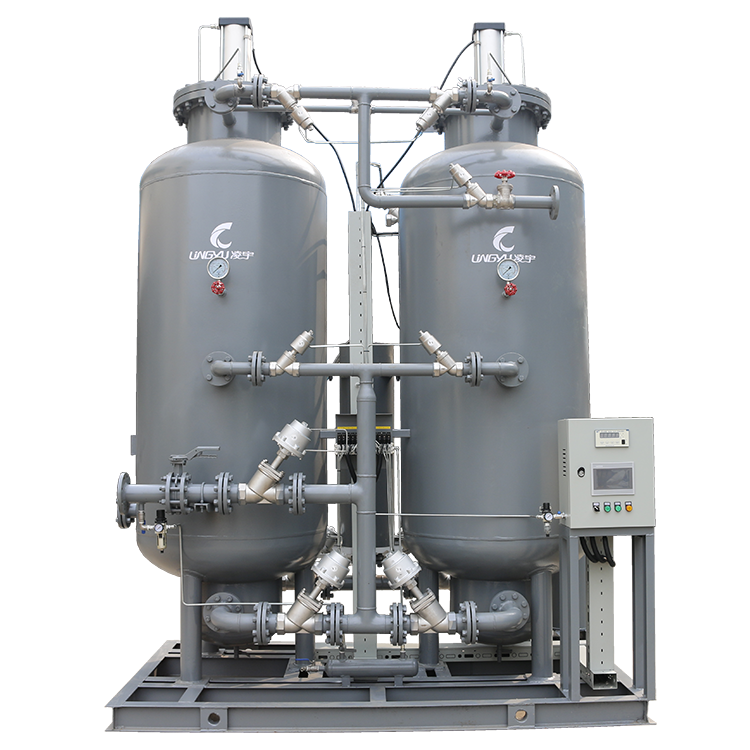

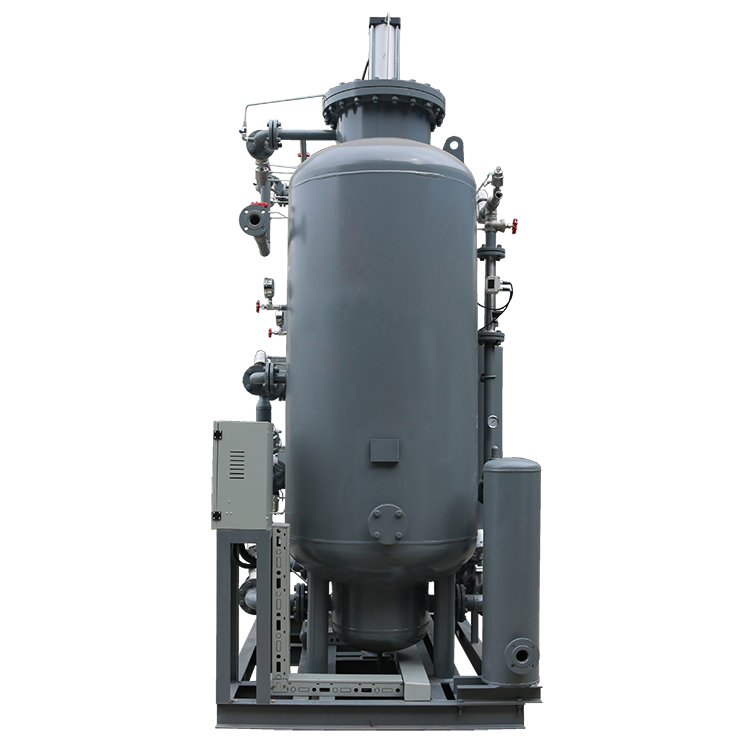

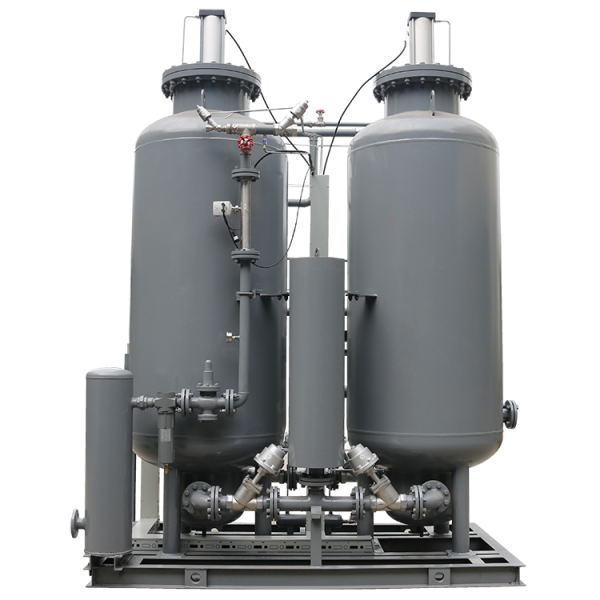

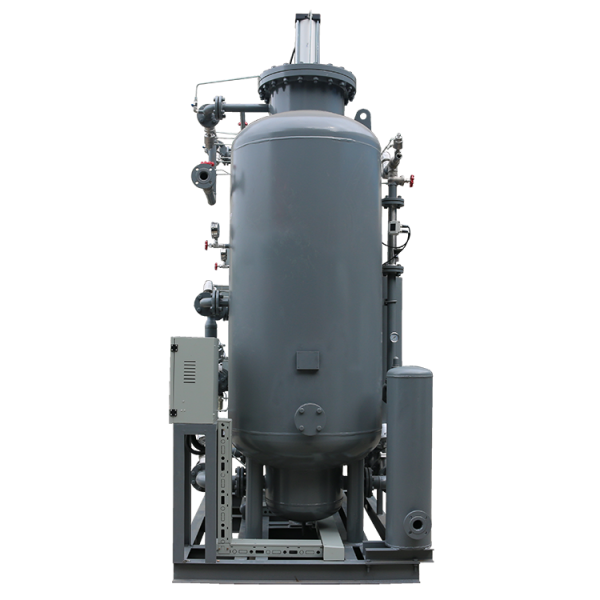

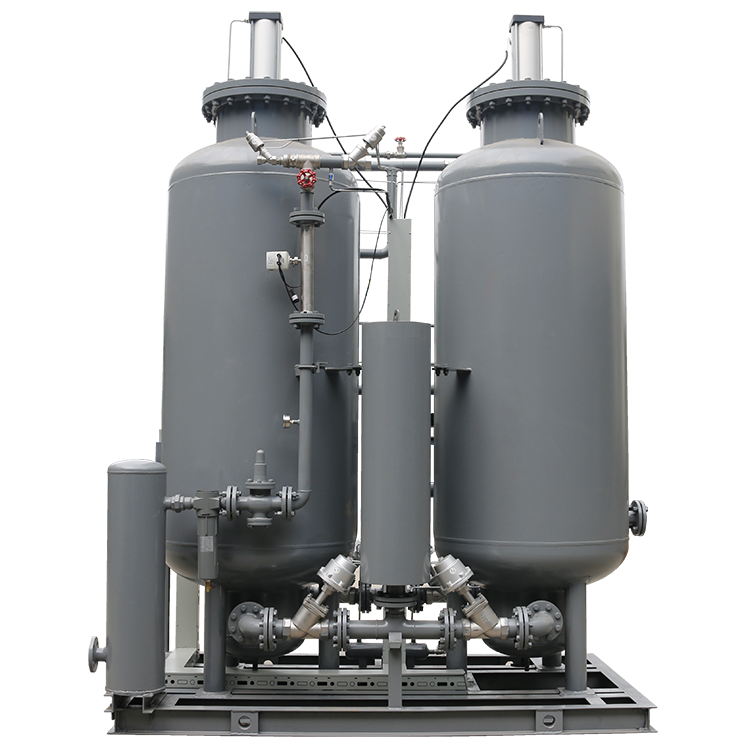

The PSA (Pressure Swing Adsorption) Nitrogen Generator operates with two pressure vessels (adsorption towers) that alternate between adsorption and regeneration cycles. Each tower is filled with Carbon Molecular Sieve (CMS), a specialized adsorbent that selectively adsorbs oxygen molecules from compressed air.Compressed air enters Tower A, where oxygen molecules are preferentially adsorbed by the CMS, while nitrogen passes through the adsorption bed and is collected as product gas. While Tower A is in the adsorption cycle, Tower B simultaneously undergoes depressurization and regeneration. During regeneration, the oxygen previously adsorbed by the CMS is desorbed and discharged to the atmosphere with the assistance of a small amount of nitrogen purge gas.When the CMS in Tower A reaches its predetermined adsorption capacity and Tower B has completed regeneration, the system automatically switches operating modes: Tower B begins adsorption while Tower A undergoes regeneration. The two towers continuously alternate between adsorption and regeneration under automatic PLC control, ensuring a continuous supply of nitrogen at the specified purity.
To ensure stable nitrogen purity and efficient long-term operation, the PSA Nitrogen Generator should be used under the following recommended conditions:
For the best operating result, the generator should be supplied with clean and stable compressed air. Proper pre-treatment, including air filtration and drying, is recommended to protect the carbon molecular sieve, maintain nitrogen purity, and extend equipment service life.
| Model | Nitrogen Production (m³/h) | Inlet Pipe Size | Outlet Pipe Size | Overall Dimensions (H × W × L, mm) | Effective Air Consumption (m³/min) |
|---|---|---|---|---|---|
| LYZD-A20 | 20 | DN20 | DN15 | 1500 × 850 × 500 | 0.66 |
| LYZD-A30 | 30 | DN20 | DN15 | 1800 × 900 × 600 | 1.00 |
| LYZD-A50 | 50 | DN20 | DN20 | 1900 × 1000 × 600 | 1.67 |
| LYZD-A70 | 70 | DN32 | DN25 | 2400 × 1150 × 700 | 2.33 |
| LYZD-A80 | 80 | DN32 | DN25 | 2400 × 1150 × 700 | 2.66 |
| LYZD-A100 | 100 | DN32 | DN32 | 2230 × 1700 × 800 | 3.33 |
| LYZD-A120 | 120 | DN40 | DN32 | 2600 × 1200 × 800 | 4.00 |
| LYZD-A140 | 140 | DN40 | DN32 | 2600 × 1400 × 900 | 4.66 |
| LYZD-A160 | 160 | DN50 | DN40 | 2600 × 1500 × 900 | 5.33 |
| LYZD-A180 | 180 | DN50 | DN40 | 2780 × 2150 × 900 | 6.00 |
| LYZD-A200 | 200 | DN50 | DN40 | 2750 × 1750 × 900 | 6.67 |
| LYZD-A250 | 250 | DN50 | DN50 | 2750 × 1900 × 1000 | 8.33 |
| LYZD-A300 | 300 | DN65 | DN50 | 2807 × 2100 × 1050 | 10.00 |
| LYZD-A350 | 350 | DN65 | DN50 | 2890 × 2200 × 1200 | 11.67 |
| LYZD-A400 | 400 | DN65 | DN65 | 2890 × 2200 × 1200 | 13.33 |
| LYZD-A450 | 450 | DN65 | DN65 | 2900 × 2500 × 1350 | 15.00 |
| LYZD-A500 | 500 | DN80 | DN80 | 2900 × 2500 × 1350 | 16.67 |
| LYZD-A550 | 550 | DN80 | DN80 | 2900 × 2500 × 1350 | 18.33 |
| LYZD-A600 | 600 | DN80 | DN80 | 2900 × 2500 × 1400 | 20.00 |
Note: The above data is based on an adsorption pressure of 0.8 MPa (gauge pressure), an ambient temperature of 20℃, and 80% relative humidity. It is for reference only and may change without prior notice.
The PSA Nitrogen Generator is widely used in industries that require a stable, continuous, and cost-effective nitrogen supply.
Used for nitrogen flushing and modified atmosphere packaging to reduce oxidation, maintain freshness, and extend product shelf life.
Provides nitrogen for soldering, assembly, and sensitive production processes where oxidation control and stable gas supply are important.
Suitable for pharmaceutical production, packaging, and storage applications that require clean and reliable nitrogen.
Used for inerting, blanketing, purging, and oxidation prevention in tanks, pipelines, and processing systems.
Supplies nitrogen for laser cutting, metal fabrication, and related industrial processes where clean cutting quality and reduced oxidation are required.
Provides a dependable on-site nitrogen source for instruments, testing systems, and controlled research environments.
