Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).
High Processing Capacity: Handles compressed air volumes up to 1130 SCFM, ideal for large-scale systems.

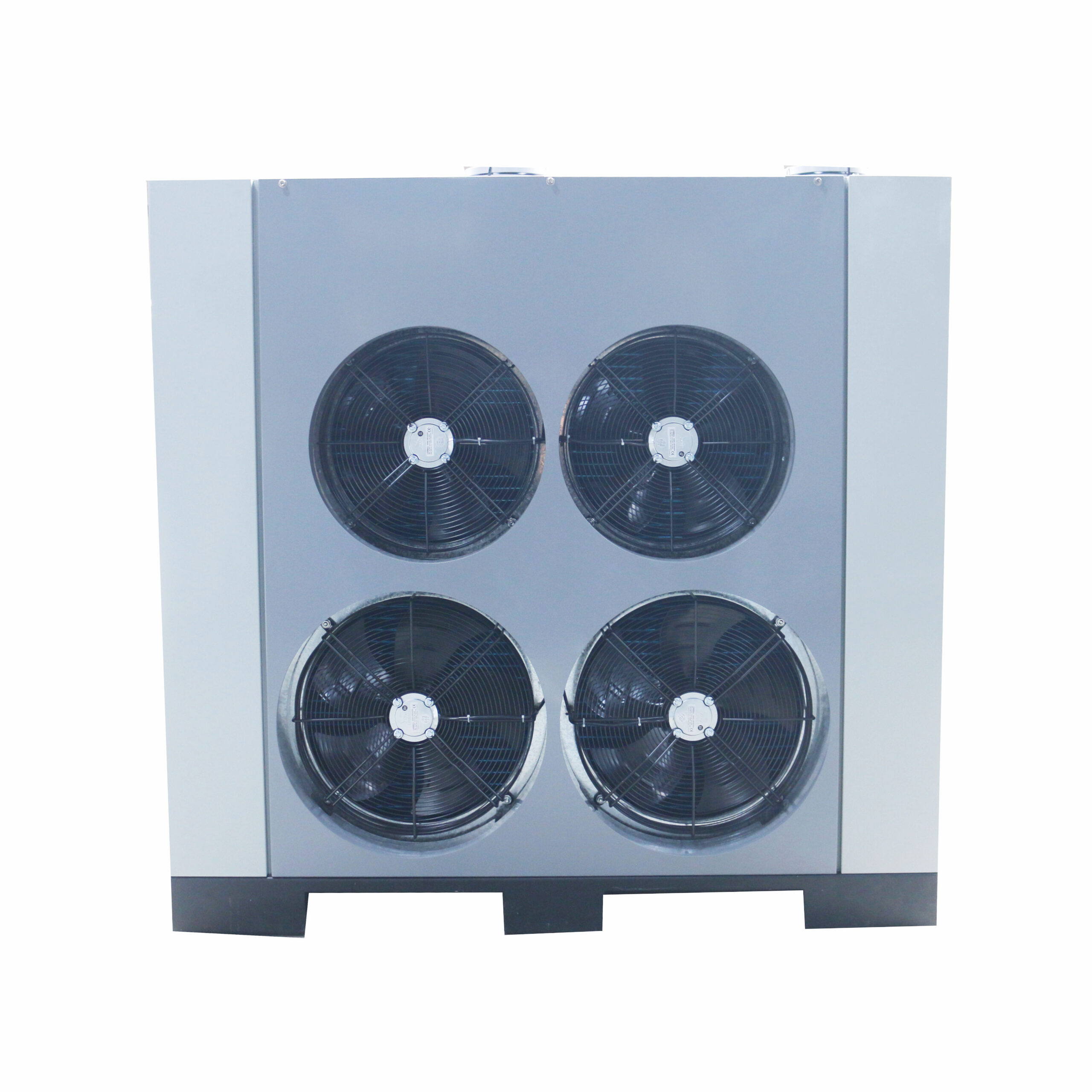

Air Cooled System: Eliminates the need for water cooling infrastructure, reducing installation and operational costs.
Stable Dew Point: Maintains a reliable pressure dew point between 2–10°C (35.6–50°F), preventing condensation and corrosion.
Efficient Refrigeration Circuit: Equipped with a durable scroll or rotary compressor for low energy consumption.
User-Friendly Interface: Real-time monitoring, alarms for high temperature, and system status indicators.
Automatic Condensate Drain: Ensures consistent moisture discharge without manual intervention.

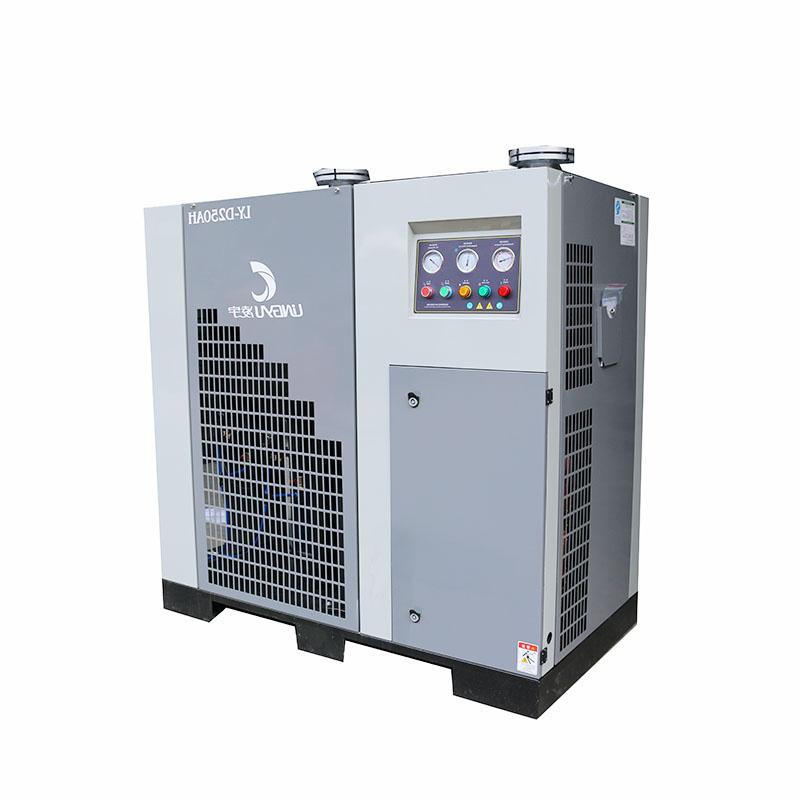

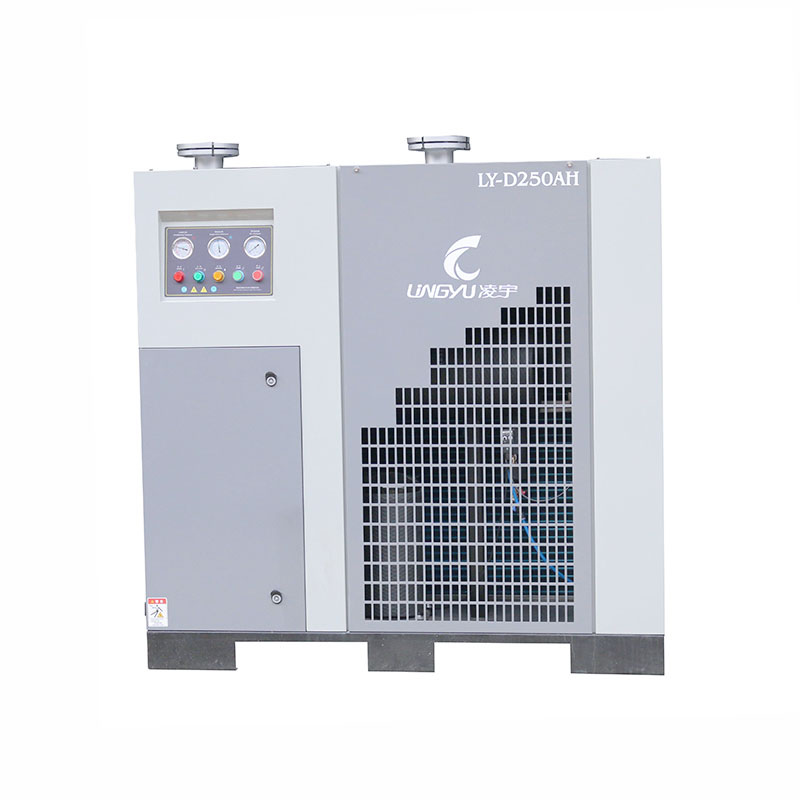

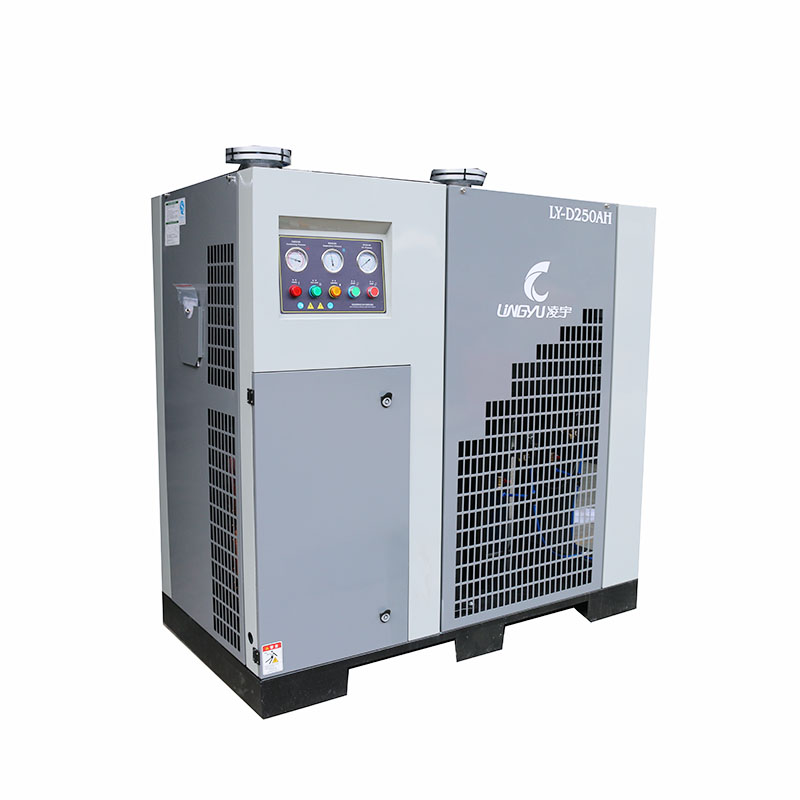

The 1130 SCFM refrigerated air dryer (air cooled) is engineered for performance, reliability, and long-term value.

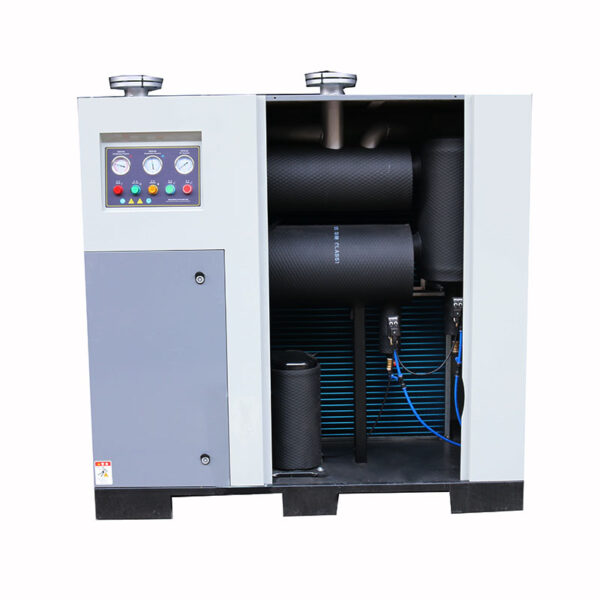

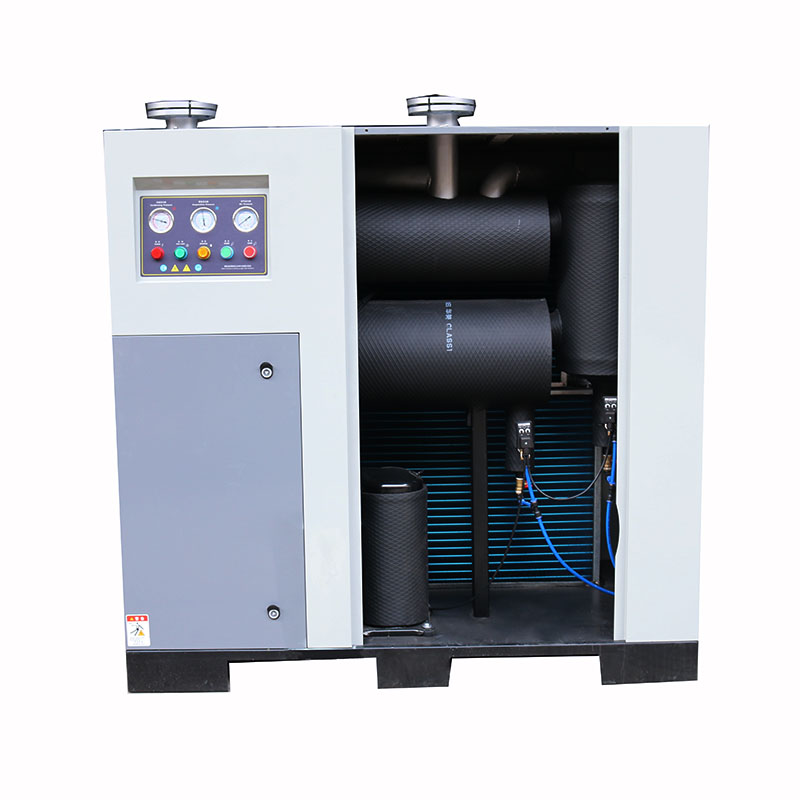

High-temperature compressed air containing moisture and oil first enters the air-cooled pre-cooler and the air-to-air heat exchanger, where it is pre-cooled to reduce its temperature. It then passes through the air-to-refrigerant evaporator, where the compressed air is cooled to a dew point of 2–10°C. During cooling, moisture, oil, and some impurities condense and are separated from the compressed air by the gas-liquid separator. The condensate is then discharged through an automatic drain valve. Finally, the dry compressed air passes through the air-to-air heat exchanger, where it is reheated to near ambient temperature, providing clean, dry compressed air for downstream use.
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5 – 45°C (41 – 113°F)
Installation Location: Indoor, well-ventilated, dust-free environment
Power Supply: 380V / 3Ph / 50Hz (or customizable)
Refrigerant Type: R407C or R134a (environmentally friendly options)
Recommended Filters: Pre-filter and after-filter for optimal protection and air quality
| Model | 1130 SCFM Refrigerated Air Dryer (Air Cooled) |
|---|---|
| Capacity | 1130 SCFM (Standard Cubic Feet per Minute) |
| Cooling Method | Air Cooled |
| Power Supply | 380V / 3Ph / 50Hz |
| Max Operating Pressure | 10 bar |
| Pressure Dew Point | 2 – 10°C |
| Refrigerant | R407C / R134a |
| Connection Size | 3″ NPT or Flanged |
| Dimensions (L×W×H) | 1850 × 1100 × 1800 mm |
| Weight | 520 kg |
The 1130 SCFM refrigerated air dryer (air cooled) is built for durability and continuous operation in challenging conditions.
The 1130 SCFM refrigerated air dryer (air cooled) is suitable for a wide range of industrial applications where clean and dry compressed air is critical:
🏭 Manufacturing Plants – Protects pneumatic tools and extends the life of machinery
🚗 Automotive Production Lines – Prevents water contamination in painting and assembly
🧪 Chemical & Petrochemical Industries – Supports process stability and product quality
🛠️ Metalworking & Welding – Avoids moisture in precision tools and plasma cutting systems
📦 Food & Beverage – Ensures hygienic and dry air in packaging and processing zones
🧰 Compressed Air Distribution Systems – Centralized drying for large-scale compressed air networks
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
Rated for 200 CFM: Optimized to handle air flow rates up to 200 CFM, ideal for medium-scale operations.
Air Cooled Condenser: No need for cooling water — suitable for flexible installation in any plant environment.
Stable Dew Point: Maintains a consistent pressure dew point between 2–10°C (35.6–50°F).
Efficient Heat Exchanger: Maximizes moisture separation while minimizing pressure loss.
Energy Efficient: Designed to reduce power consumption with high-performance components.
Automatic Drain System: Prevents water accumulation and extends system life.
Compact Design: Space-saving footprint for easy integration into existing systems.
The 200 CFM refrigerated air dryer (air cooled) combines durability and performance to meet the demands of modern compressed air systems.
Capacity: Precisely rated for 100 CFM, ensuring optimal moisture removal for consistent compressed air quality.
Air Cooled Design: No need for water cooling infrastructure — plug and play installation.
Energy Efficient: Incorporates a high-efficiency refrigeration compressor and heat exchanger to reduce power consumption.
Compact & Durable: Space-saving footprint with a heavy-duty steel casing for long-term durability.
Low Dew Point: Delivers a stable pressure dew point as low as 2–10°C (35.6–50°F).
Automatic Drain Valve: Prevents liquid buildup and minimizes maintenance time.
Simple Controls: User-friendly interface with operating indicators and safety alarms.
The air is pure, no secondary pollution, integrated skid-mounted design, compact structure, stable dew point, remarkable water removal effect.
Stainless steel plate heat exchanger with high heat exchange efficiency and compact structure.
Independent stainless steel steam-water separator with high water separation efficiency, timely separates condensed water and other impurities from compressed air and discharges them out of the machine.
The whole machine is made of stainless steel or aluminum alloy, which will not rust and prevent secondary contamination of compressed air.
Single chip intelligent control, real-time display of evaporation temperature, including over-temperature alarm, electrical fault, high pressure alarm, low pressure alarm and other functions.
Ultra-Low Pressure Drop:The pre-cooler features a newly designed annular tube configuration with approximately three times more tubes than conventional designs. The increased flow area significantly reduces air resistance, resulting in an overall pressure drop of less than 0.1 bar.
Low Dew Point:An optimized integrated 3-in-1 design, combined with a unique water separation system, ensures a consistently low and stable pressure dew point.
Intelligent Control:Equipped with a PLC and touchscreen as standard. The system automatically adjusts the compressor’s refrigeration capacity according to the evaporator load, ensuring optimal and energy-efficient operation. An RS-485 communication interface is also included as standard.
