Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).
Rated for 200 CFM: Optimized to handle air flow rates up to 200 CFM, ideal for medium-scale operations.

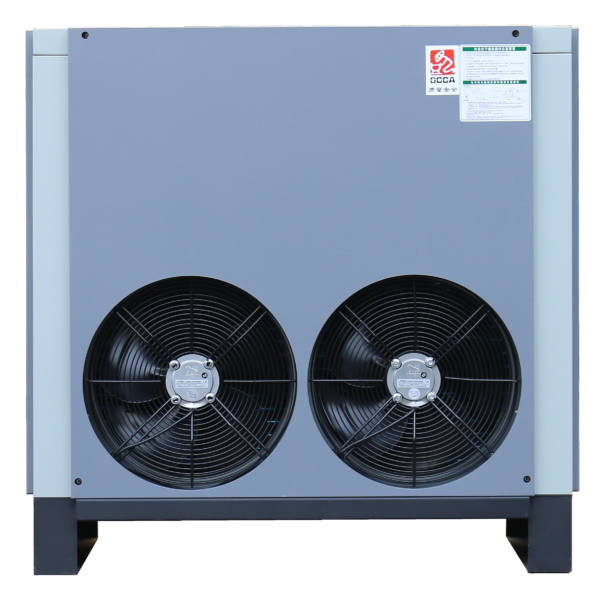

Air Cooled Condenser: No need for cooling water — suitable for flexible installation in any plant environment.
Stable Dew Point: Maintains a consistent pressure dew point between 2–10°C (35.6–50°F).
Efficient Heat Exchanger: Maximizes moisture separation while minimizing pressure loss.
Energy Efficient: Designed to reduce power consumption with high-performance components.

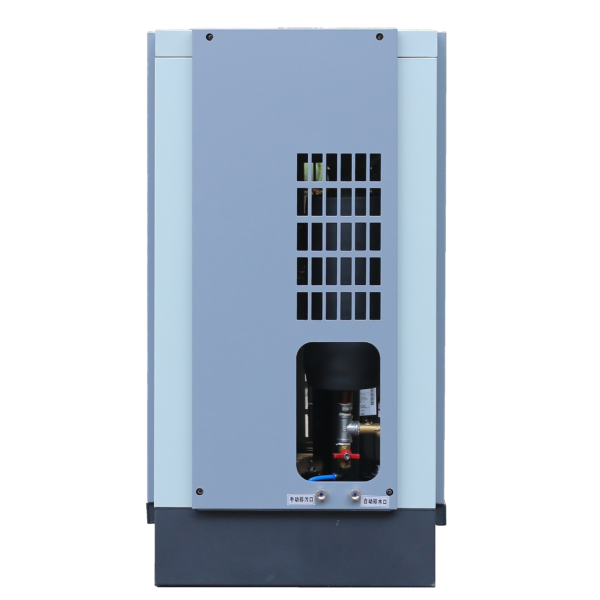

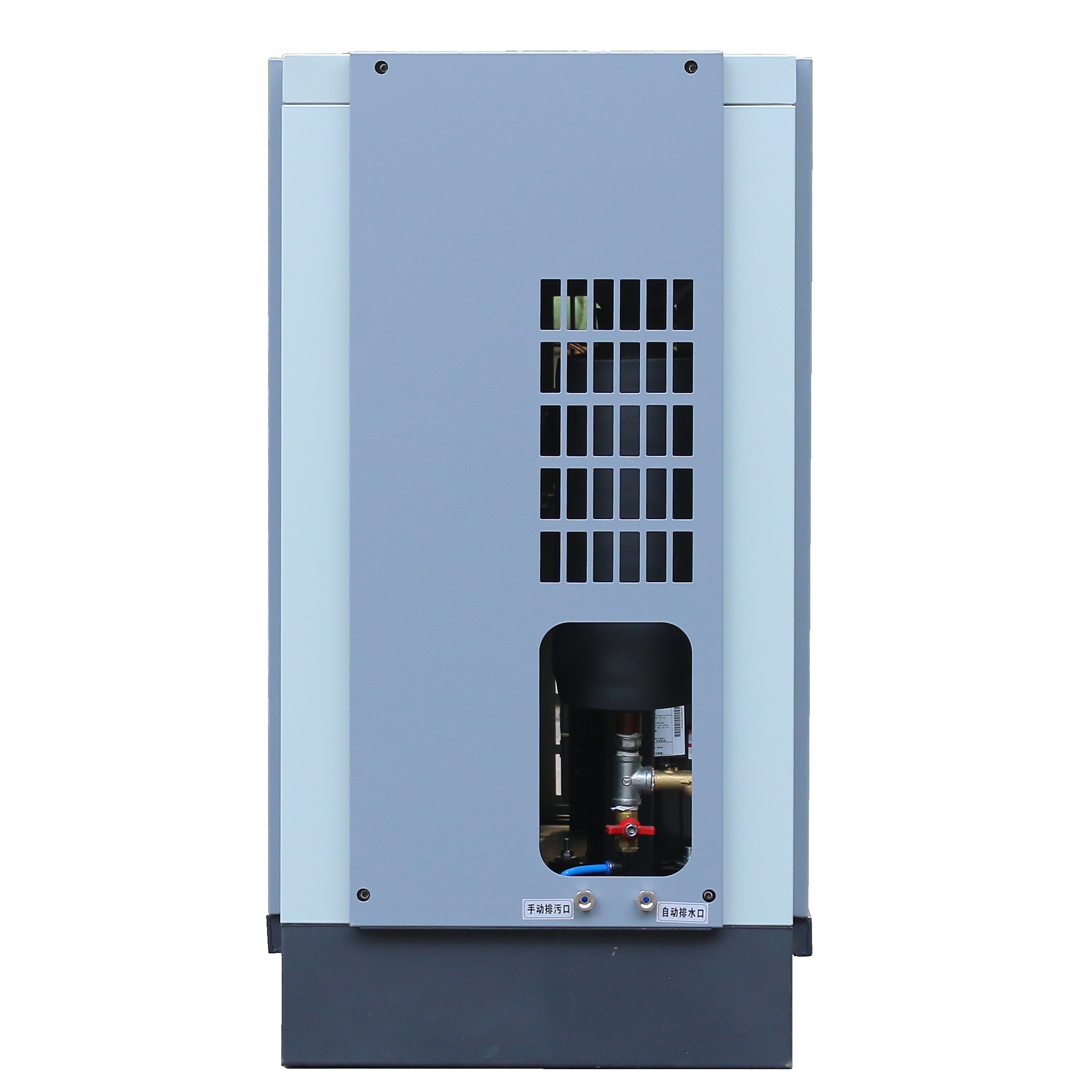

Automatic Drain System: Prevents water accumulation and extends system life.
Compact Design: Space-saving footprint for easy integration into existing systems.

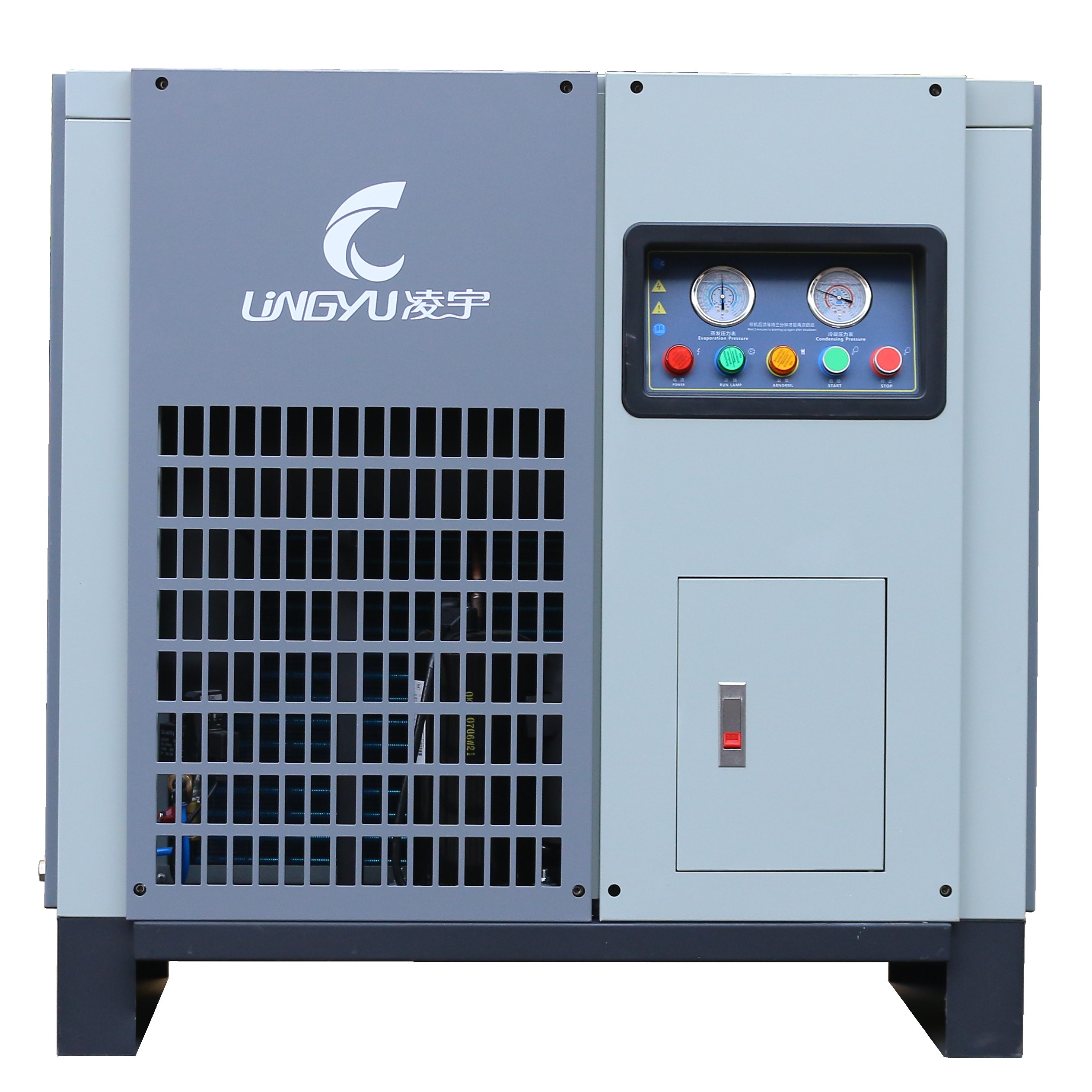

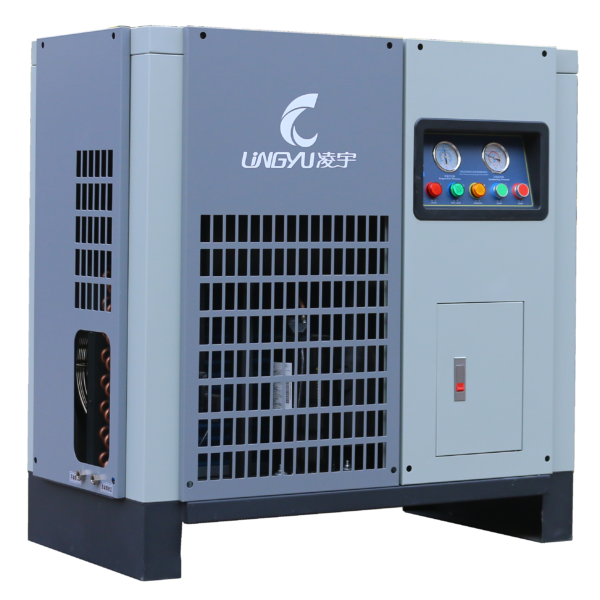

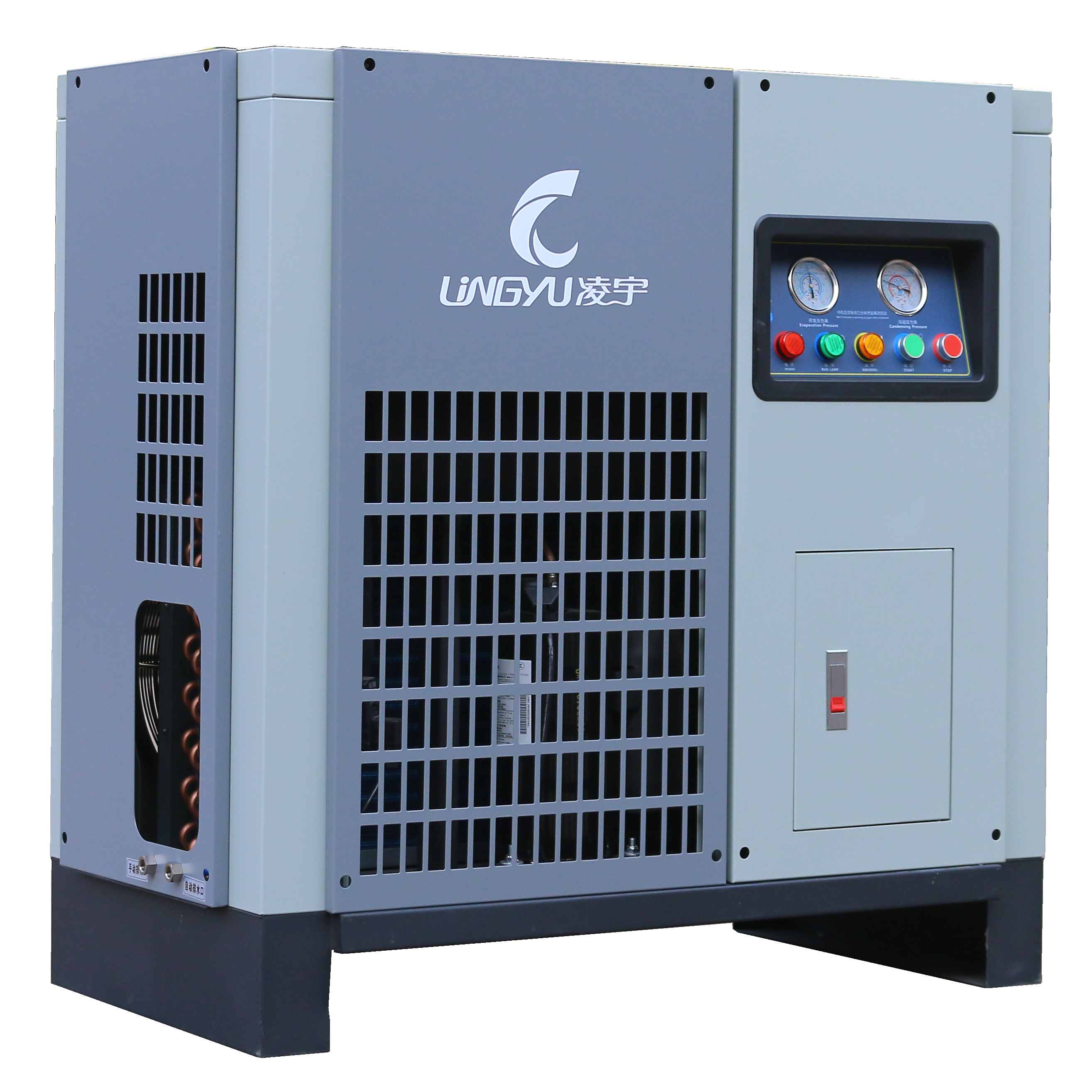

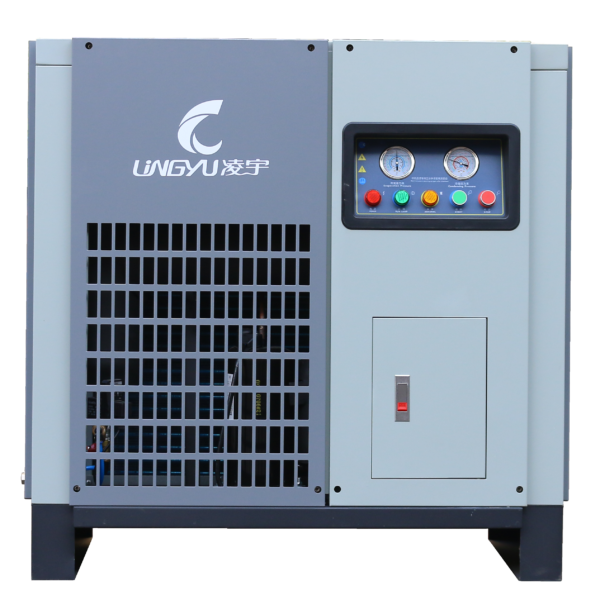

The 200 CFM refrigerated air dryer (air cooled) combines durability and performance to meet the demands of modern compressed air systems.
High-temperature compressed air containing moisture and oil first enters the air-cooled pre-cooler and the air-to-air heat exchanger, where it is pre-cooled to reduce its temperature. It then passes through the air-to-refrigerant evaporator, where the compressed air is cooled to a dew point of 2–10°C. During cooling, moisture, oil, and some impurities condense and are separated from the compressed air by the gas-liquid separator. The condensate is then discharged through an automatic drain valve. Finally, the dry compressed air passes through the air-to-air heat exchanger, where it is reheated to near ambient temperature, providing clean, dry compressed air for downstream use.
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5 – 45°C (41 – 113°F)
Installation Location: Indoor, clean and well-ventilated environment
Power Supply: 220V / 1Ph / 50Hz (custom options available)
Refrigerant Type: R134a or R410A (environmentally friendly refrigerants)
Filtration Advice: Pre-filters and after-filters recommended for best air quality
| Model | 200 CFM Refrigerated Air Dryer (Air Cooled) |
|---|---|
| Air Capacity | 200 CFM (Cubic Feet per Minute) |
| Cooling Type | Air Cooled |
| Refrigerant | R134a / R410A |
| Max Pressure | 10 bar |
| Pressure Dew Point | 2 – 10°C |
| Power Supply | 220V / 1Ph / 50Hz |
| Connection Size | 1¼” NPT |
| Dimensions (L×W×H) | 850 × 500 × 900 mm |
| Weight | 95 kg |
The 200 CFM refrigerated air dryer (air cooled) is engineered for easy installation, consistent performance, and long service life.
The 200 CFM refrigerated air dryer (air cooled) is ideal for a wide range of industries where moisture-free compressed air is essential:
🏭 Manufacturing – Improve performance and longevity of pneumatic tools and automation systems
🧰 Metalworking & Machining – Prevent rust and moisture in cutting, drilling, and CNC operations
🚗 Automotive Workshops – Maintain clean air for painting, air tools, and tire systems
🍴 Food & Beverage – Ensure hygienic conditions in packaging and processing
📦 General Industrial Use – Reliable air drying for air compressors and distribution systems
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
Rated Air Flow
Handles compressed air flow up to 75 CFM, ensuring effective dehumidification.
Air-Cooled System
No water cooling required, simplifying installation and maintenance.
Stable Dew Point
Maintains a consistent 2–10°C (35.6–50°F) pressure dew point for dry, reliable air.
Low Energy Consumption
Optimized refrigeration components minimize power usage while maintaining performance.
Automatic Drain Valve
Continuously removes condensate to prevent water accumulation in the system.
Compact & Durable Design
Space-saving enclosure with powder-coated steel housing ensures long service life.
Easy Operation
Plug-and-play setup with simple control interface and indicator lights.
The compressed air first enters the pre-cooler for initial cooling, and then passes through the pre-cooling/reheating section of the high-performance 3-in-1 plate heat exchanger for further cooling. It subsequently enters the evaporator section, where it is rapidly cooled and the condensed moisture is separated.The treated low-temperature compressed air then returns to the pre-cooling/reheating heat exchanger, where it exchanges heat with the incoming hot compressed air. This reheats the dry compressed air before it is discharged from the dryer.The refrigeration system precisely adjusts the compressor speed according to changes in system load. The operating frequency is automatically regulated to match the actual air treatment demand, ensuring stable and energy-efficient operation.
Low energy consumption: the three-in-one plate heat exchanger is adopted, and the whole machine can save 20~30% of energy consumption;
Low pressure drop: the pressure loss of the whole machine is less than 0.015MPa, which is lower than the national standard;
Low dew point: under standard working conditions, the pressure dew point is as low as 2~10℃, and the electronic bypass valve is adopted, making the system more stable;
Environmentally friendly and durable: the whole series adopts environmentally friendly refrigerant R410a/R407C, which meets international environmental standards and has a maximum pressure of 1.6MPa;
Good treatment effect: equipped with an independent water distribution system and it is a multiple upgraded version, the water distribution efficiency is guaranteed;
Wide application conditions: hydrophilic aluminum foil is used, and the whole series is equipped with heat exchangers and pre-coolers as standard, which can better adapt to harsh working conditions
Wide application conditions: hydrophilic aluminum foil is used, and the whole series is equipped with heat exchangers and pre-coolers as standard, which can better adapt to harsh working conditions
Customized according to needs: color can be customized, PLC is optional, dry contacts, Modbus communication, Internet of Things communication, etc. can be customized according to customer needs
