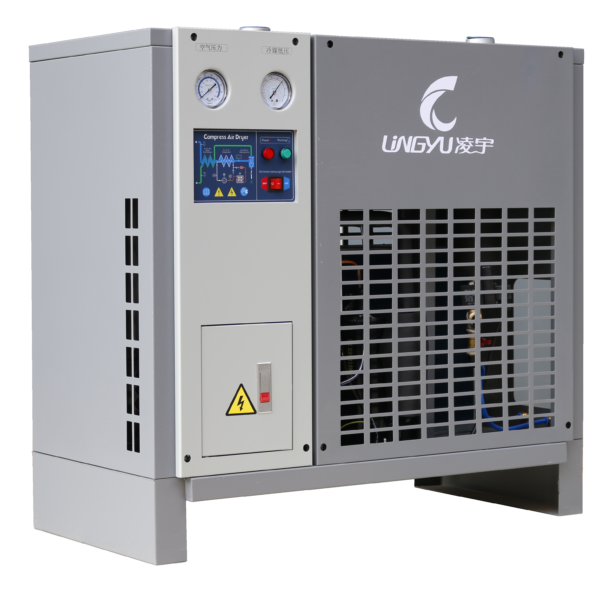

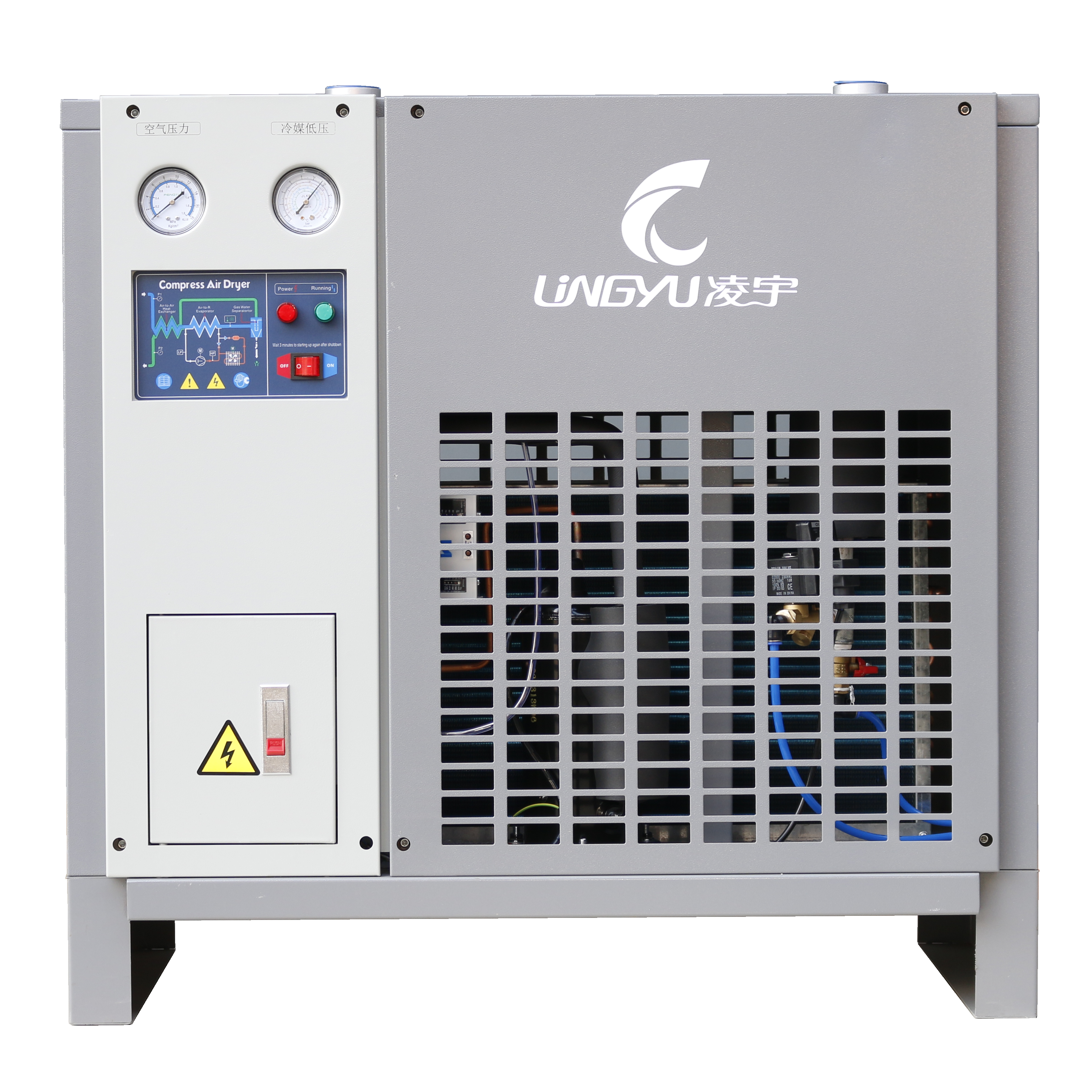

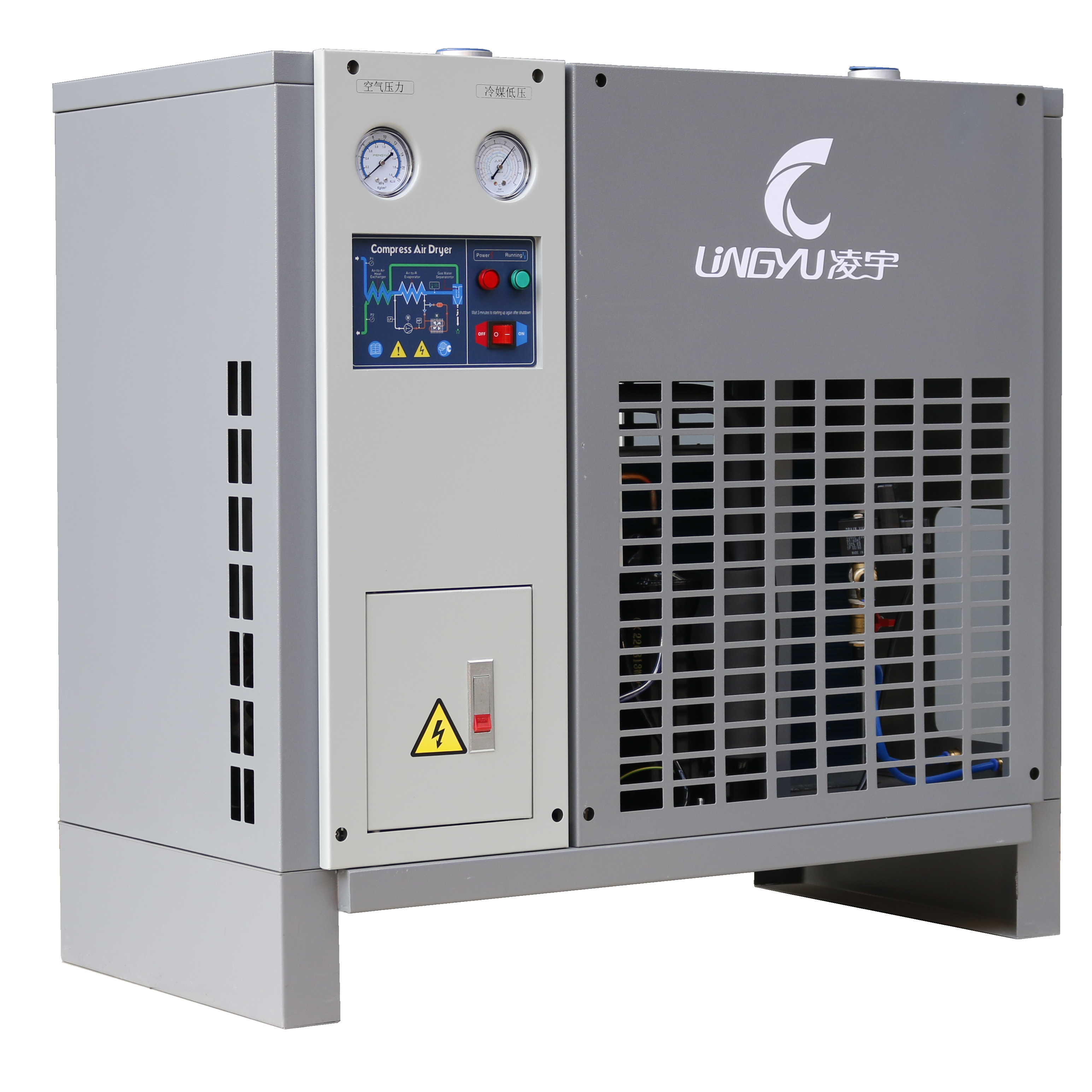

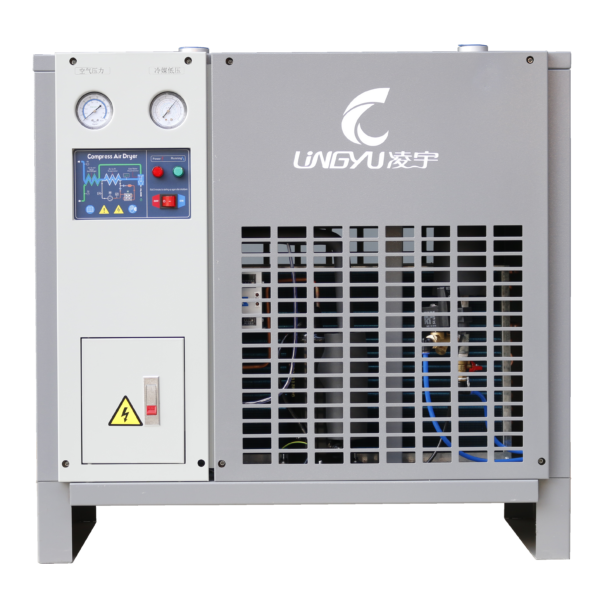

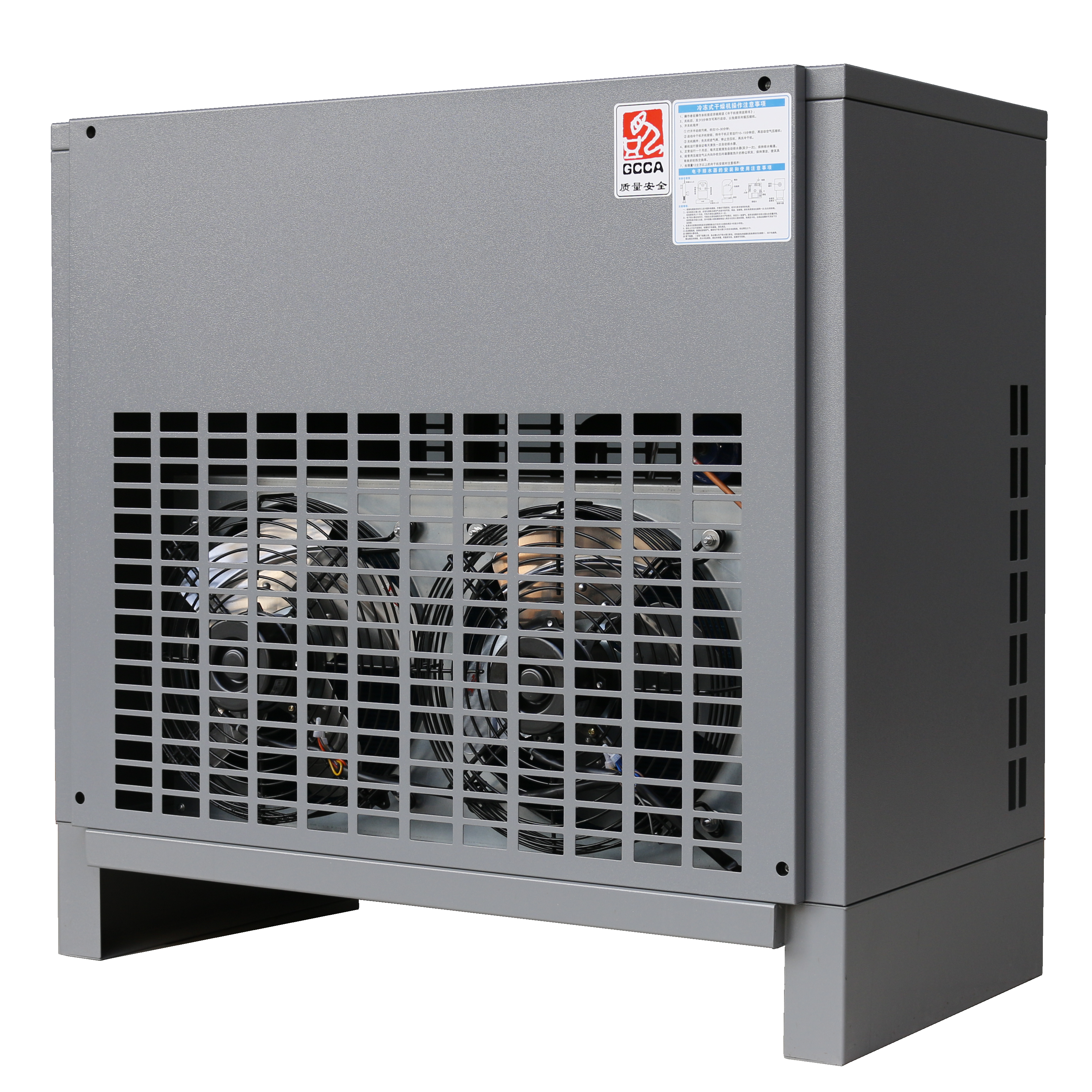

Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).
Capacity: Precisely rated for 100 CFM, ensuring optimal moisture removal for consistent compressed air quality.
Air Cooled Design: No need for water cooling infrastructure — plug and play installation.
Energy Efficient: Incorporates a high-efficiency refrigeration compressor and heat exchanger to reduce power consumption.
Compact & Durable: Space-saving footprint with a heavy-duty steel casing for long-term durability.
Low Dew Point: Delivers a stable pressure dew point as low as 2–10°C (35.6–50°F).
Automatic Drain Valve: Prevents liquid buildup and minimizes maintenance time.
Simple Controls: User-friendly interface with operating indicators and safety alarms.
High-temperature compressed air containing moisture and oil first enters the air-cooled pre-cooler and the air-to-air heat exchanger, where it is pre-cooled to reduce its temperature. It then passes through the air-to-refrigerant evaporator, where the compressed air is cooled to a dew point of 2–10°C. During cooling, moisture, oil, and some impurities condense and are separated from the compressed air by the gas-liquid separator. The condensate is then discharged through an automatic drain valve. Finally, the dry compressed air passes through the air-to-air heat exchanger, where it is reheated to near ambient temperature, providing clean, dry compressed air for downstream use.
Inlet Air Pressure: 4–10 bar (58–145 psi)
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5–45°C (41–113°F)
Power Supply: 220V/1Ph/50Hz or customized
Installation: Indoor, well-ventilated area, free from dust and corrosive gas
Refrigerant Type: R134a (environmentally friendly and efficient)
Filtration Recommendation: Use with pre- and post-filters for enhanced performance and protection
| Model | 100 CFM Refrigerated Air Dryer (Air Cooled) |
|---|---|
| Capacity | 100 CFM (Cubic Feet per Minute) |
| Cooling Method | Air Cooled |
| Power Consumption | ≤ 0.75 kW |
| Pressure Dew Point | 2–10°C |
| Refrigerant | R134a |
| Connection Size | 1″ NPT |
| Dimensions (L×W×H) | 700 × 450 × 800 mm |
| Weight | 65 kg |
The 100 CFM refrigerated air dryer (air cooled) is widely used across various industries where clean and dry compressed air is essential:
Automotive workshops: Protect air tools and painting systems from moisture.
Food & Beverage: Ensure hygienic compressed air for processing and packaging.
Electronics: Maintain dry air for circuit board manufacturing.
Pharmaceutical: Prevent contamination in air-driven equipment.
General manufacturing: Enhance pneumatic tool performance and reduce downtime.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
Compact Capacity Range – Choose from 25, 35, or 50 CFM to match your compressor flow.
Air-Cooled Design – No water connection required; perfect for facilities without cooling water.
Stable Dew Point Control – Maintains 2–10°C (35.6–50°F) dew point for consistent dryness.
Energy Efficient – Equipped with low-power refrigeration systems for cost savings.
Automatic Drain Valve – Discharges moisture automatically.
Plug-and-Play Setup – Quick installation and operation in limited spaces.
Durable Construction – Built with powder-coated steel and corrosion-resistant components.
Rated for 200 CFM: Optimized to handle air flow rates up to 200 CFM, ideal for medium-scale operations.
Air Cooled Condenser: No need for cooling water — suitable for flexible installation in any plant environment.
Stable Dew Point: Maintains a consistent pressure dew point between 2–10°C (35.6–50°F).
Efficient Heat Exchanger: Maximizes moisture separation while minimizing pressure loss.
Energy Efficient: Designed to reduce power consumption with high-performance components.
Automatic Drain System: Prevents water accumulation and extends system life.
Compact Design: Space-saving footprint for easy integration into existing systems.
The 200 CFM refrigerated air dryer (air cooled) combines durability and performance to meet the demands of modern compressed air systems.
High Processing Capacity: Handles compressed air volumes up to 1130 SCFM, ideal for large-scale systems.
Air Cooled System: Eliminates the need for water cooling infrastructure, reducing installation and operational costs.
Stable Dew Point: Maintains a reliable pressure dew point between 2–10°C (35.6–50°F), preventing condensation and corrosion.
Efficient Refrigeration Circuit: Equipped with a durable scroll or rotary compressor for low energy consumption.
User-Friendly Interface: Real-time monitoring, alarms for high temperature, and system status indicators.
Automatic Condensate Drain: Ensures consistent moisture discharge without manual intervention.
The 1130 SCFM refrigerated air dryer (air cooled) is engineered for performance, reliability, and long-term value.
Ultra-Low Pressure Drop:The pre-cooler features a newly designed annular tube configuration with approximately three times more tubes than conventional designs. The increased flow area significantly reduces air resistance, resulting in an overall pressure drop of less than 0.1 bar.
Low Dew Point:An optimized integrated 3-in-1 design, combined with a unique water separation system, ensures a consistently low and stable pressure dew point.
Intelligent Control:Equipped with a PLC and touchscreen as standard. The system automatically adjusts the compressor’s refrigeration capacity according to the evaporator load, ensuring optimal and energy-efficient operation. An RS-485 communication interface is also included as standard.
