Supports customization, with a processing capacity of up to 15,900 CFM (cubic feet per minute).
Rated Air Flow
Handles compressed air flow up to 75 CFM, ensuring effective dehumidification.
Air-Cooled System
No water cooling required, simplifying installation and maintenance.
Stable Dew Point
Maintains a consistent 2–10°C (35.6–50°F) pressure dew point for dry, reliable air.
Low Energy Consumption
Optimized refrigeration components minimize power usage while maintaining performance.
Automatic Drain Valve
Continuously removes condensate to prevent water accumulation in the system.
Compact & Durable Design
Space-saving enclosure with powder-coated steel housing ensures long service life.
Easy Operation
Plug-and-play setup with simple control interface and indicator lights.
High-temperature compressed air containing moisture and oil first enters the air-cooled pre-cooler and the air-to-air heat exchanger, where it is pre-cooled to reduce its temperature. It then passes through the air-to-refrigerant evaporator, where the compressed air is cooled to a dew point of 2–10°C. During cooling, moisture, oil, and some impurities condense and are separated from the compressed air by the gas-liquid separator. The condensate is then discharged through an automatic drain valve. Finally, the dry compressed air passes through the air-to-air heat exchanger, where it is reheated to near ambient temperature, providing clean, dry compressed air for downstream use.
Inlet Air Pressure: 4–10 bar (58–145 psi)
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5–45°C (41–113°F)
Installation Environment: Indoor, dry, well-ventilated
Power Supply: 220V / 1Ph / 50Hz (customizable)
Refrigerant Type: R134a or R410A
Filtration Requirement: Pre-filter and after-filter recommended
| Parameter | Specification |
|---|---|

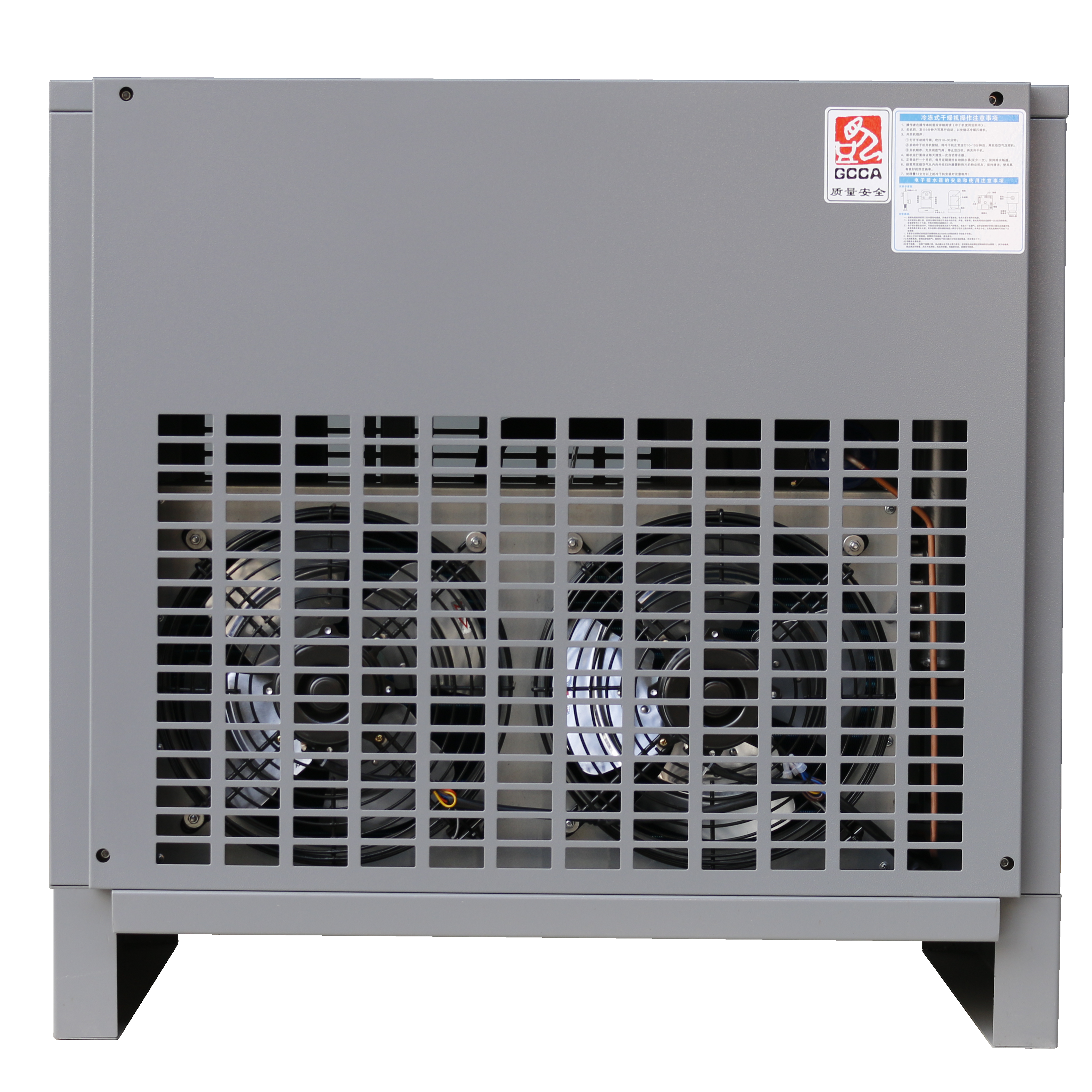

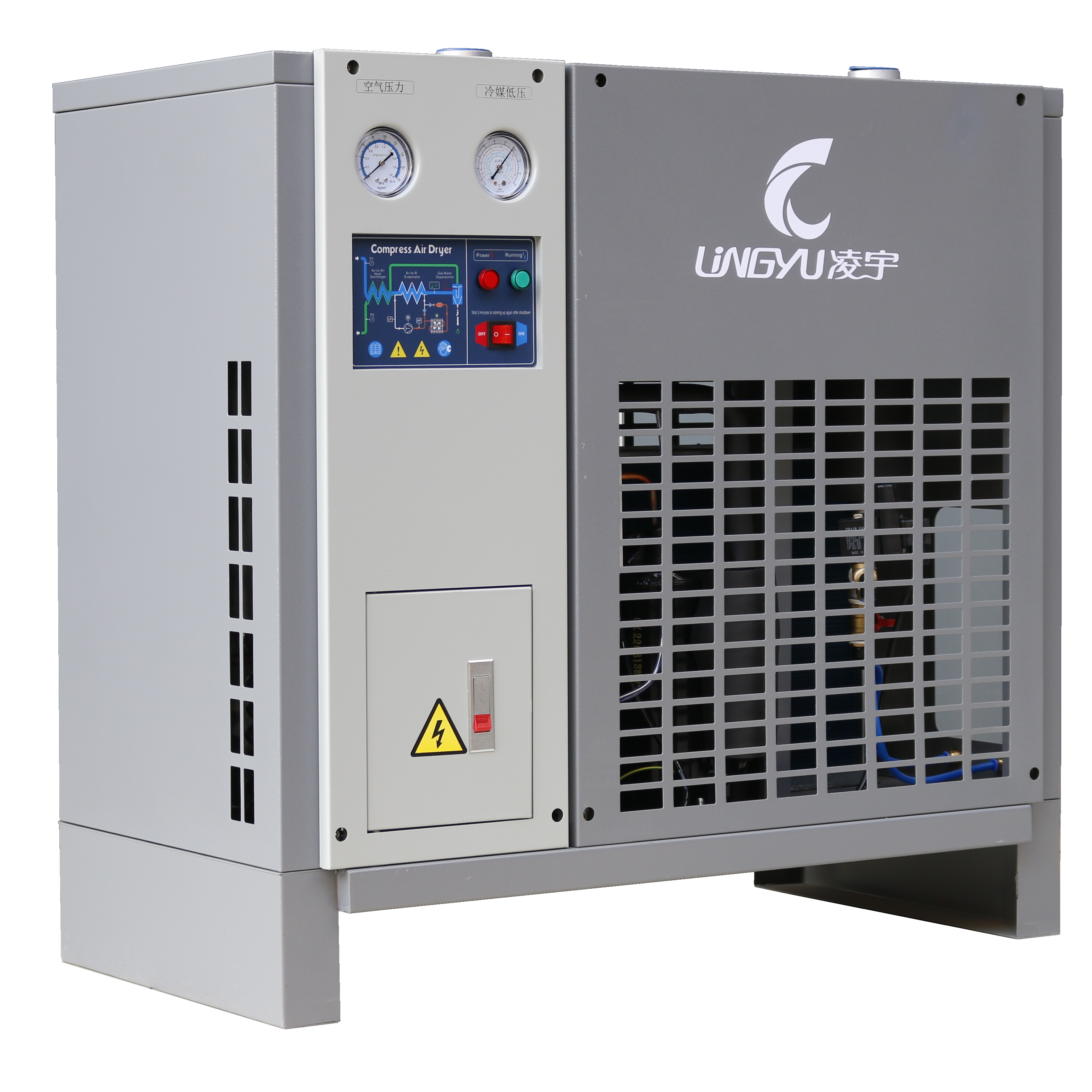

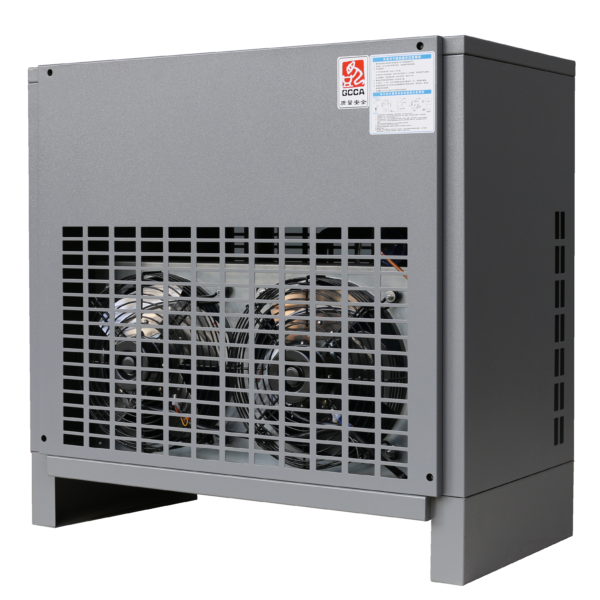

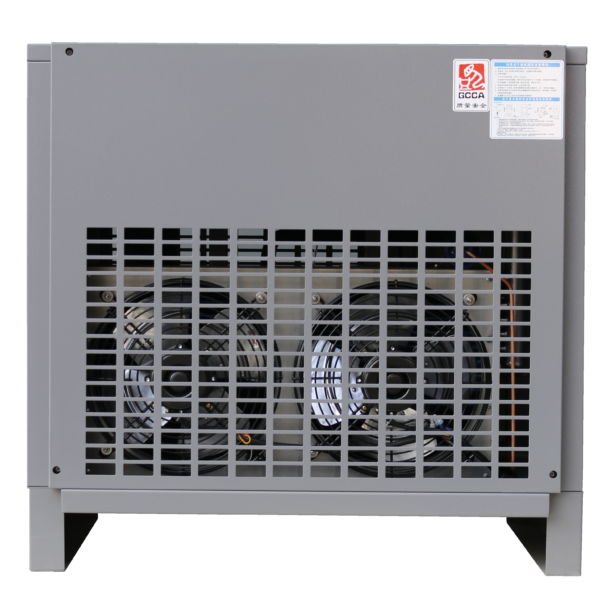

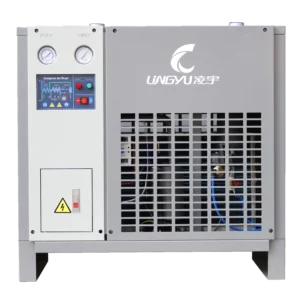

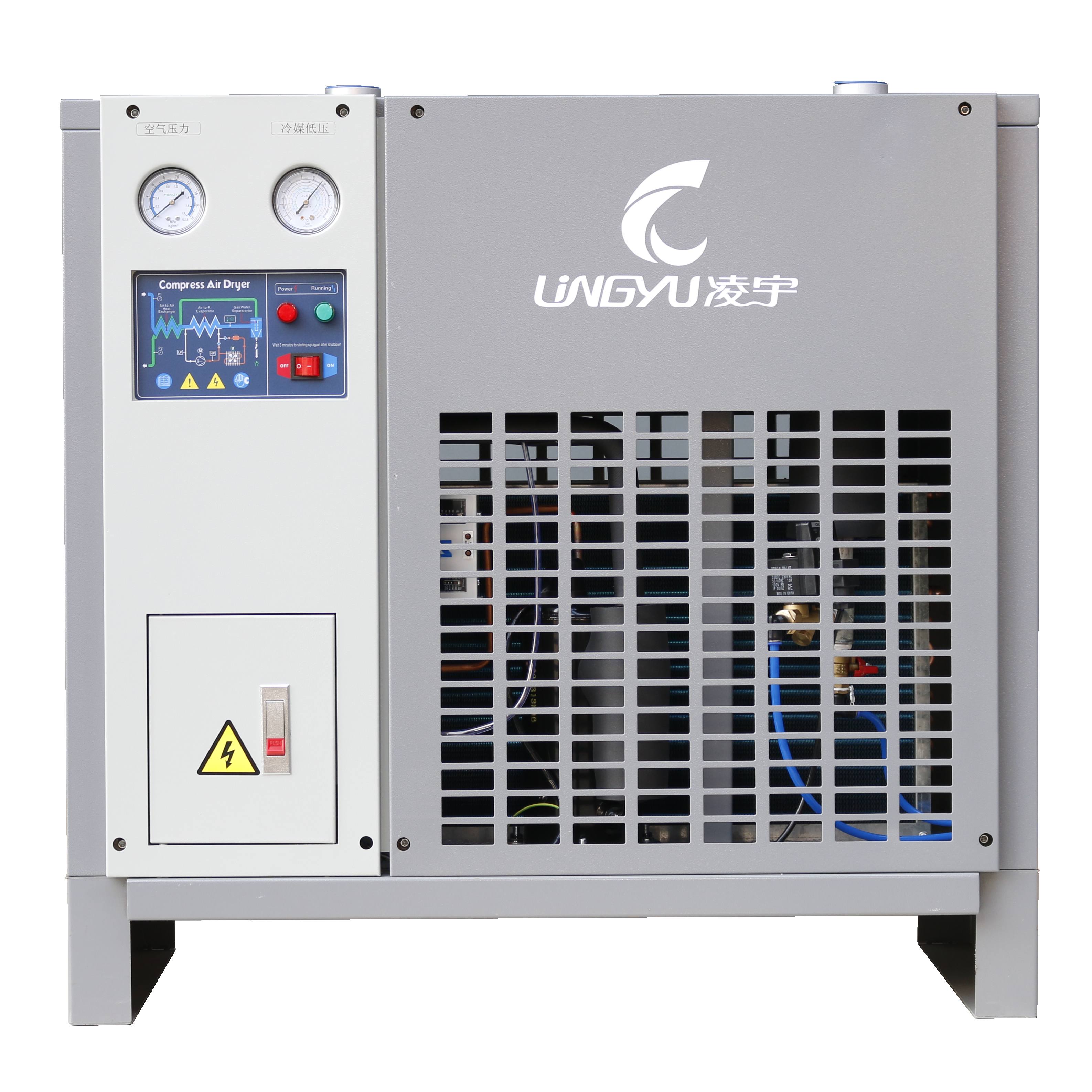

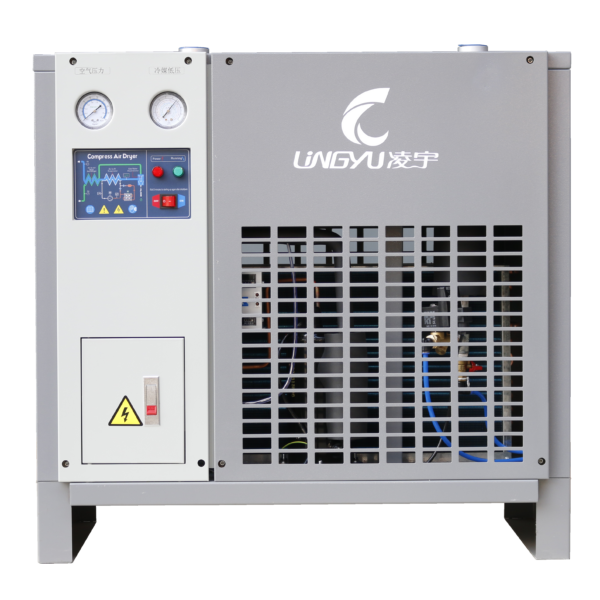

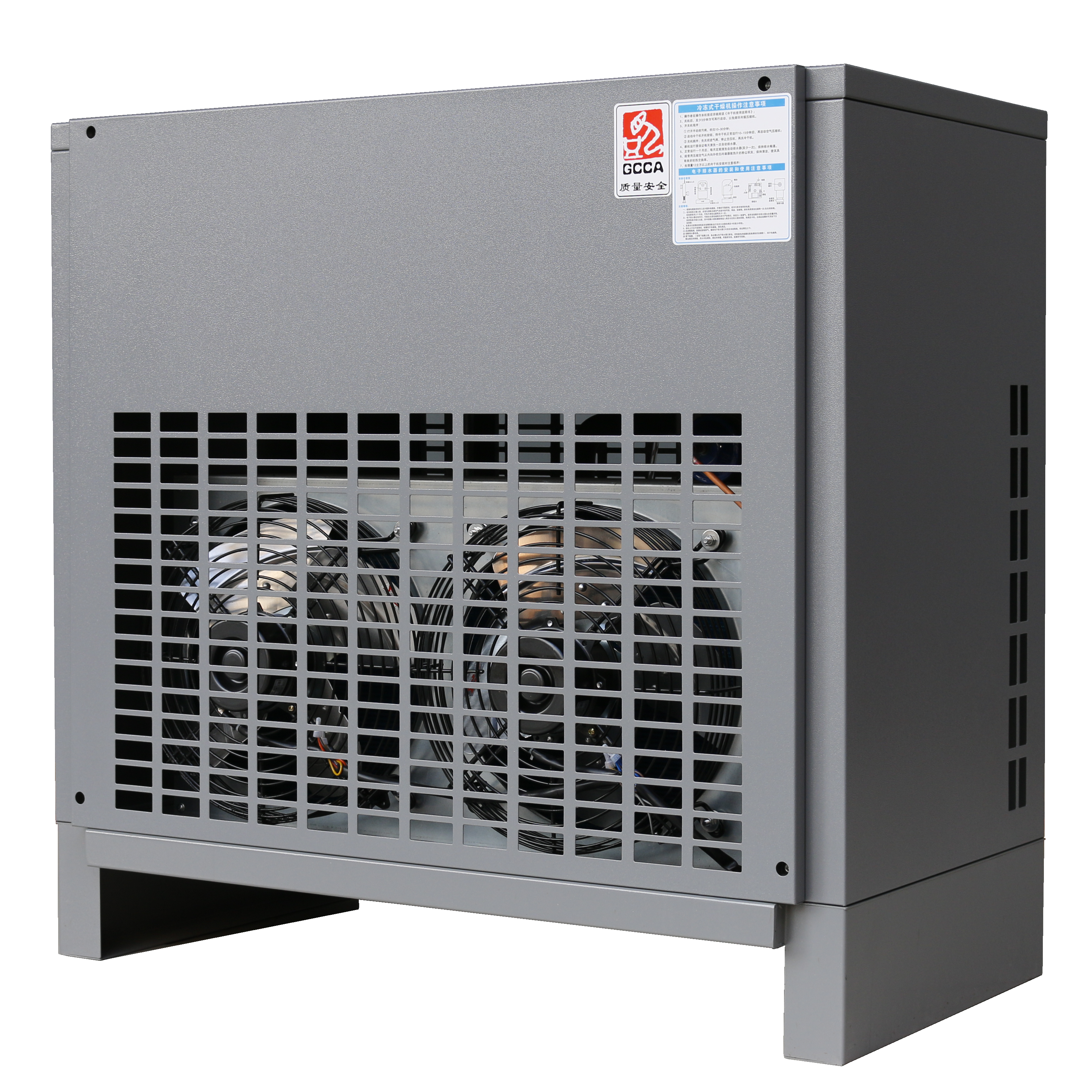

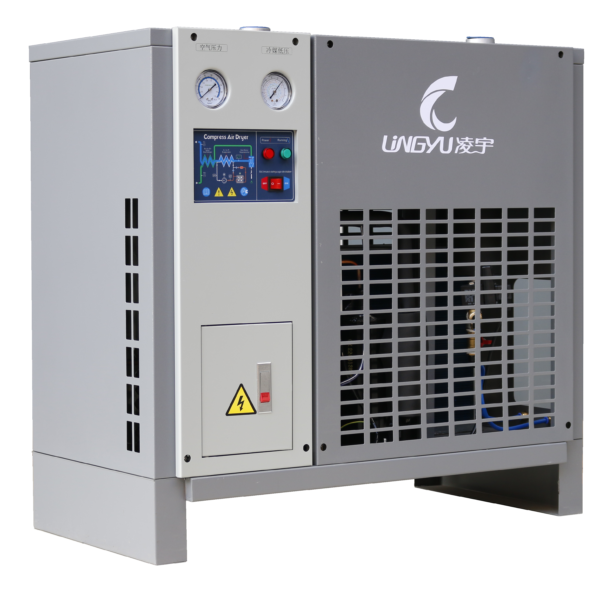

| Model | 75 CFM Refrigerated Air Dryer (Air-Cooled) |
| Air Flow Capacity | 75 CFM |
| Cooling Method | Air-Cooled |
| Refrigerant | R134a / R410A |
| Max Working Pressure | 10 bar |
| Pressure Dew Point | 2–10°C |
| Power Supply | 220V / 1Ph / 50Hz |
| Connection Size | 1” NPT |
| Dimensions (L×W×H) | 700 × 450 × 750 mm |
| Weight | 55 kg |
This compact air-cooled dryer provides long-term reliable operation with robust materials and quality refrigeration components.
Suitable for a wide range of industrial and commercial uses:
Workshops & Garages – Keep pneumatic tools dry and rust-free
Light Manufacturing – Maintain air quality in assembly and automation lines
Automotive Shops – Prevent water in paint booths, hoses, and tools
Packaging & Processing – Ensure consistent air supply for machinery
Lab & Medical Equipment – Supply clean, dry air for sensitive devices
Printing & Electronics – Protect components from moisture and water particles
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
Compact Capacity Range – Choose from 25, 35, or 50 CFM to match your compressor flow.
Air-Cooled Design – No water connection required; perfect for facilities without cooling water.
Stable Dew Point Control – Maintains 2–10°C (35.6–50°F) dew point for consistent dryness.
Energy Efficient – Equipped with low-power refrigeration systems for cost savings.
Automatic Drain Valve – Discharges moisture automatically.
Plug-and-Play Setup – Quick installation and operation in limited spaces.
Durable Construction – Built with powder-coated steel and corrosion-resistant components.
High Processing Capacity: Handles compressed air volumes up to 1130 SCFM, ideal for large-scale systems.
Air Cooled System: Eliminates the need for water cooling infrastructure, reducing installation and operational costs.
Stable Dew Point: Maintains a reliable pressure dew point between 2–10°C (35.6–50°F), preventing condensation and corrosion.
Efficient Refrigeration Circuit: Equipped with a durable scroll or rotary compressor for low energy consumption.
User-Friendly Interface: Real-time monitoring, alarms for high temperature, and system status indicators.
Automatic Condensate Drain: Ensures consistent moisture discharge without manual intervention.
The 1130 SCFM refrigerated air dryer (air cooled) is engineered for performance, reliability, and long-term value.
The air is pure, no secondary pollution, integrated skid-mounted design, compact structure, stable dew point, remarkable water removal effect.
Stainless steel plate heat exchanger with high heat exchange efficiency and compact structure.
Independent stainless steel steam-water separator with high water separation efficiency, timely separates condensed water and other impurities from compressed air and discharges them out of the machine.
The whole machine is made of stainless steel or aluminum alloy, which will not rust and prevent secondary contamination of compressed air.
Single chip intelligent control, real-time display of evaporation temperature, including over-temperature alarm, electrical fault, high pressure alarm, low pressure alarm and other functions.
Good treatment effect: equipped with an independent water distribution system and it is a multiple upgraded version, the water distribution efficiency is guaranteed;
Wide application conditions: hydrophilic aluminum foil is used, and the whole series is equipped with heat exchangers and pre-coolers as standard, which can better adapt to harsh working conditions
Wide application conditions: hydrophilic aluminum foil is used, and the whole series is equipped with heat exchangers and pre-coolers as standard, which can better adapt to harsh working conditions
Customized according to needs: color can be customized, PLC is optional, dry contacts, Modbus communication, Internet of Things communication, etc. can be customized according to customer needs
