Supports customization with a processing capacity of up to 17660 CFM (cubic feet per minute).
High-Performance Pneumatic Valves:Reliable and highly responsive pneumatic valves provide fast and stable switching with a long service life.
High-Torque Pneumatic Actuators:High-torque aluminum alloy pneumatic actuators ensure smooth, stable, and reliable operation.
High-Performance Desiccant:Premium desiccant provides excellent adsorption capacity and abrasion resistance, ensuring a stable pressure dew point over long-term operation with minimal dusting.
Intelligent Programmable Control:Equipped with a fully electronic programmable controller featuring an intuitive interface for easy operation and maintenance.
Low-Noise Operation:Low-noise check valves and high-performance silencers minimize noise during both normal operation and exhaust.
Automatic Repressurization:Before valve switching, the system automatically repressurizes and equalizes the pressure between the vessels. This ensures stable vessel pressure, minimizes pressure fluctuations and impact on the desiccant, and helps extend desiccant service life.

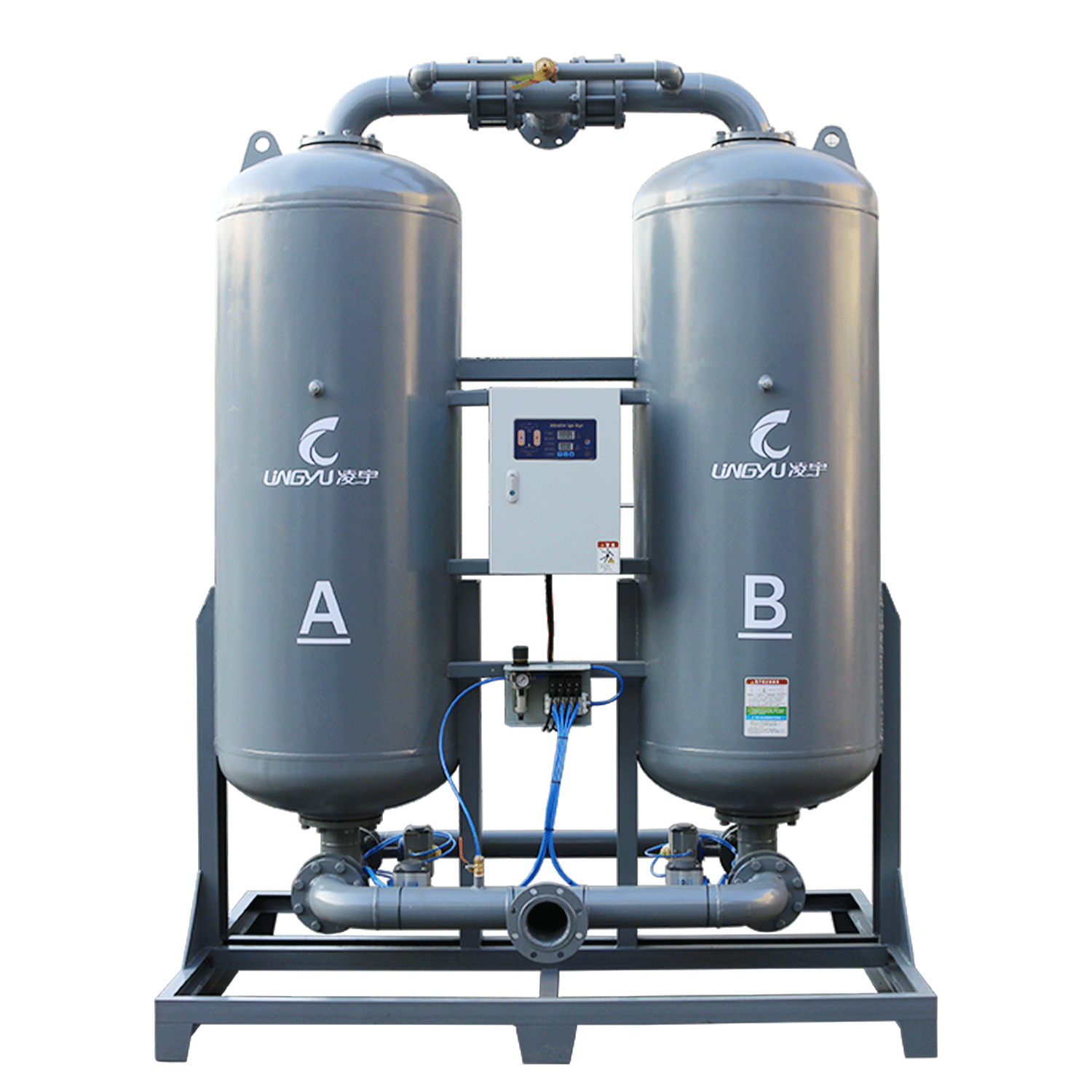

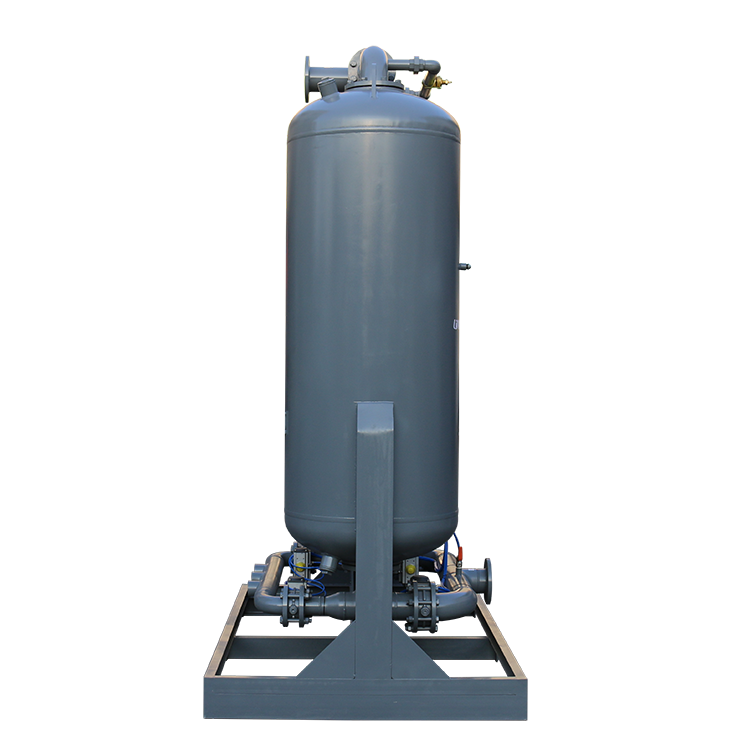

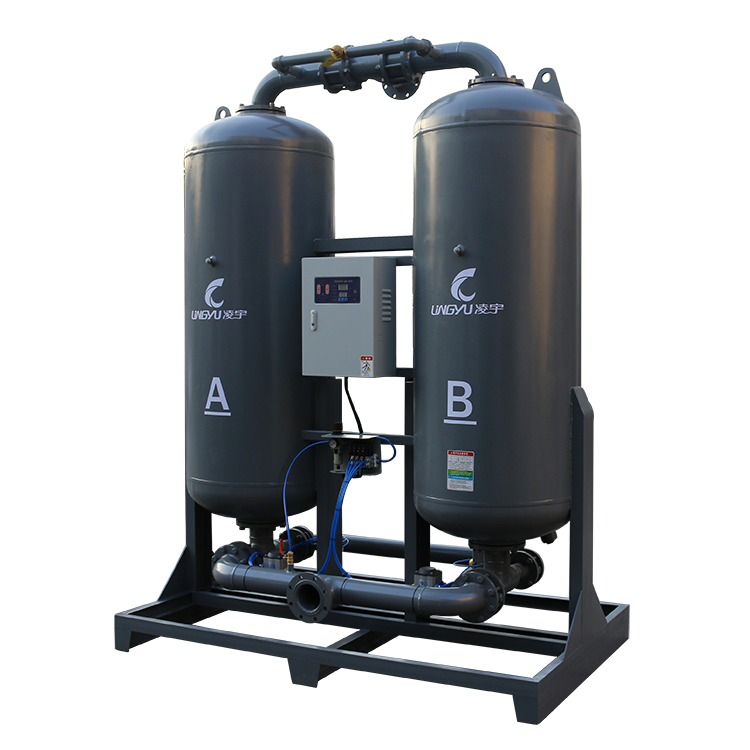

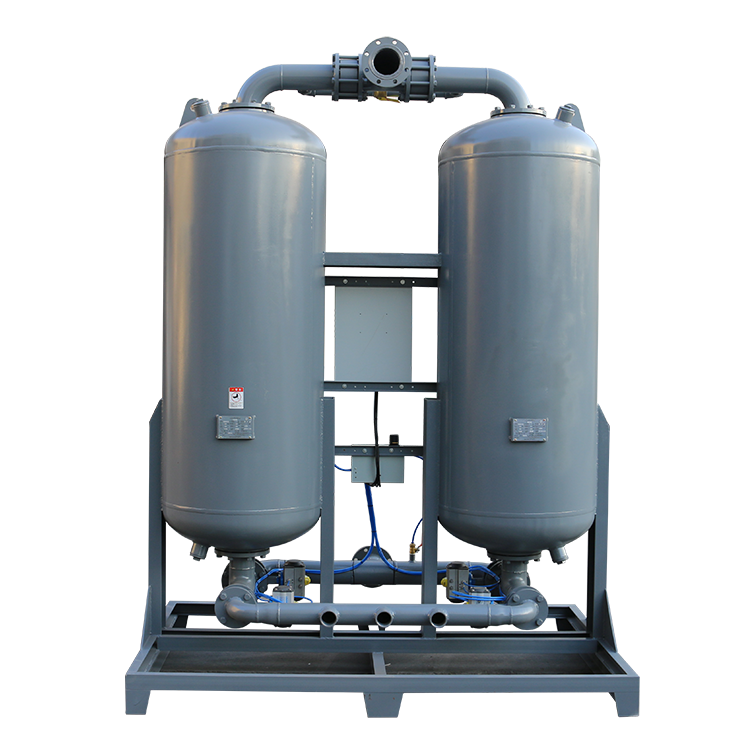

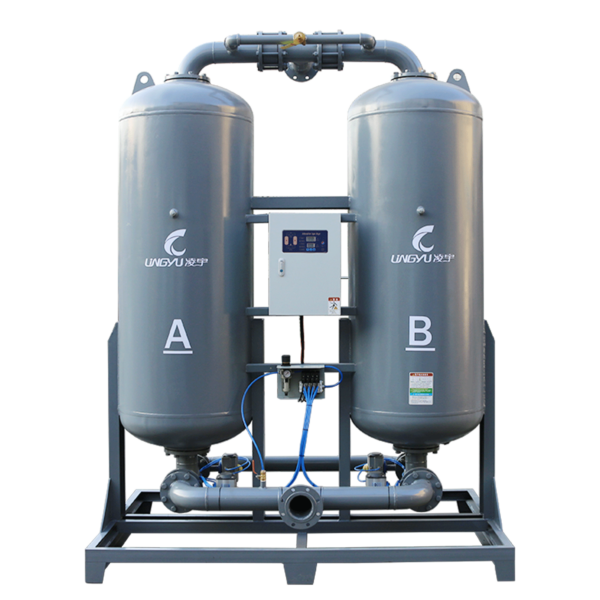

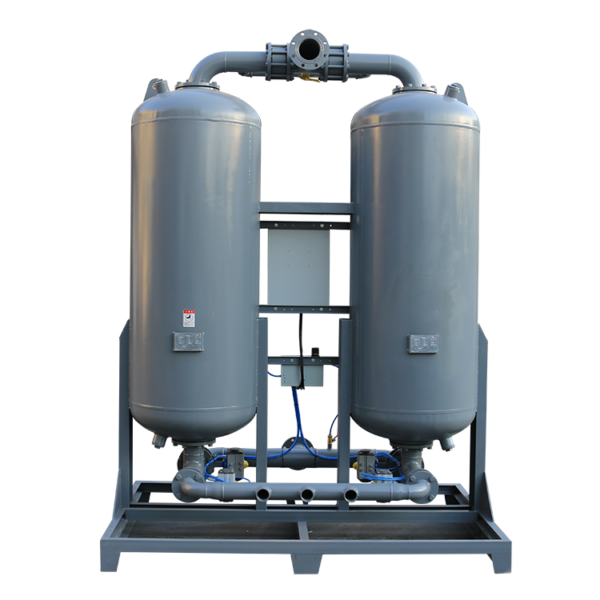

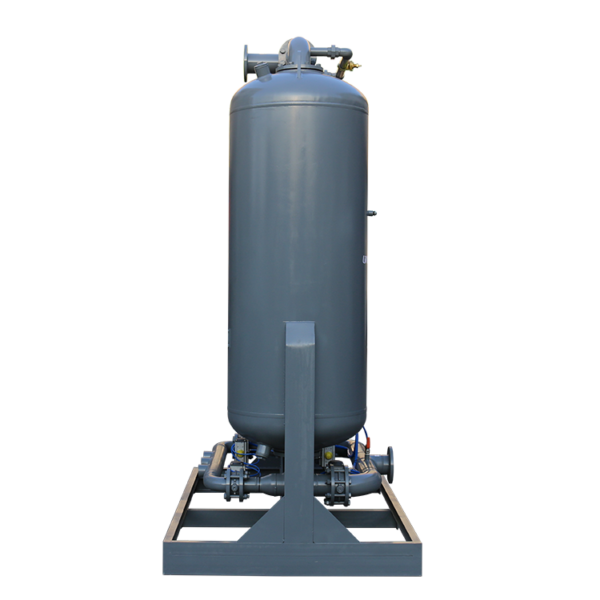

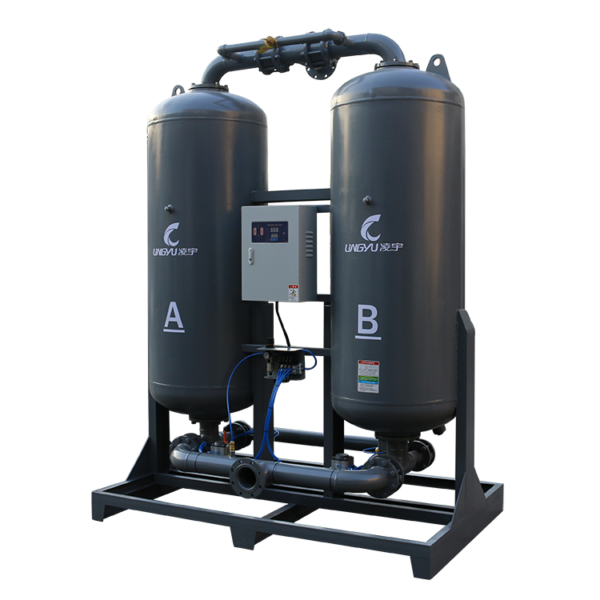

The Heatless Regenerative Desiccant Air Dryer operates on the principle of Pressure Swing Adsorption (PSA). When the partial pressure of water vapor is high, the desiccant adsorbs moisture from the compressed air. Under low water-vapor partial pressure, the adsorbed moisture is desorbed and released back into the gas phase, thereby regenerating the desiccant.
A portion of the dry compressed air produced by the dryer is used as purge air for regeneration. Since the purge air is taken directly from the product air, the system features a simple structure and convenient operation.
During heatless regeneration, the purge air provides the conditions required for desorption while also carrying the released moisture out of the system. As the PSA process is generally considered isothermal, no additional cooling stage is required. Desorption and regeneration of the desiccant are therefore completed simultaneously.
Applicable Fluids: Compressed air, non-corrosive air
Rated Inlet Pressure: 0.7 MPa (0.6–1.0 MPa customizable)
Rated Inlet Temperature: 10°C–30°C (maximum ≤ 40°C)
Regeneration Air Consumption: 8%–14%
Outlet Dew Point: ≤ –40°C
Adsorbent Type: Activated alumina + molecular sieve
Ambient Temperature: 2°C–45°C (optimal: 35°C)
| Model | Airflow Capacity (m³/min) | Power Supply (V/Hz) | Total Power (kW) | Air Inlet/Outlet | Overall Dimensions (L × W × H, mm) |
|---|---|---|---|---|---|
| LY-HH10NX | 1.5 | 220/50 | 0.1 | G1″ | 726 × 520 × 1802 |
| LY-HH20NX | 2.5 | 220/50 | 0.1 | G1″ | 840 × 500 × 1691 |
| LY-HH30NX | 3.8 | 220/50 | 0.1 | G1½” | 1010 × 500 × 1713 |
| LY-HH50NX | 6.5 | 220/50 | 0.1 | G1½” | 1160 × 600 × 1847 |
| LY-HH75NX | 10.5 | 220/50 | 0.1 | G2″ | 1195 × 600 × 2175 |
| LY-HH100NX | 13.5 | 220/50 | 0.1 | G2″ | 1256 × 700 × 2225 |
| LY-HH120NX | 17.0 | 220/50 | 0.1 | DN65 | 1346 × 970 × 2390 |
| LY-HH150NX | 21.5 | 220/50 | 0.1 | DN80 | 1460 × 930 × 2264 |
| LY-HH180NX | 25.0 | 220/50 | 0.1 | DN80 | 1459 × 930 × 2443 |
| LY-HH200NX | 28.5 | 220/50 | 0.1 | DN80 | 1560 × 1070 × 2450 |
| LY-HH250NX | 32.0 | 220/50 | 0.1 | DN80 | 1600 × 1050 × 2650 |
| LY-HH300NX | 37.0 | 220/50 | 0.1 | DN100 | 1700 × 1100 × 2680 |
| LY-HH350NX | 41.5 | 220/50 | 0.1 | DN100 | 1830 × 1150 × 2700 |
| LY-HH400NX | 45.0 | 220/50 | 0.1 | DN100 | 1830 × 1150 × 2790 |
| LY-HH450NX | 50.0 | 220/50 | 0.1 | DN100 | 2040 × 1240 × 2780 |
| LY-HH500NX | 55.0 | 220/50 | 0.1 | DN100 | 2040 × 1240 × 2875 |
| LY-HH550NX | 60.0 | 220/50 | 0.1 | DN100 | 2130 × 1300 × 2790 |
| LY-HH600NX | 65.0 | 220/50 | 0.1 | DN125 | 2210 × 1340 × 2970 |
| LY-HH700NX | 75.0 | 220/50 | 0.1 | DN125 | 2350 × 1380 × 2920 |
| LY-HH800NX | 85.0 | 220/50 | 0.1 | DN125 | 2350 × 1380 × 2920 |
| LY-HH900NX | 95.0 | 220/50 | 0.1 | DN150 | 2446 × 1430 × 3170 |
| LY-HH1100NX | 110.0 | 220/50 | 0.1 | DN150 | 2610 × 1580 × 3060 |
| LY-HH1300NX | 130.0 | 220/50 | 0.1 | DN150 | 2900 × 1400 × 3079 |
| LY-HH1500NX | 150.0 | 220/50 | 0.1 | DN200 | 3100 × 1580 × 3274 |
Note:Customized models are available for air flow above 130 m³/min or when special materials, specifications, or inlet temperature requirements are needed. All data is subject to change without prior notice.
The HH Series heatless regeneration adsorption dryers are widely used in industries requiring moisture-free compressed air, such as:
Chemical plants
Oil & gas facilities
Textile production
Automotive manufacturing
General pneumatic systems
Electronic chip testing
Instrument air supply
Environmental test chambers
Waveguide drying
FTIR spectrometers
Medical and dental air compressors
Gas analyzers
Air-operated pumps
HVAC control systems
Car wash automation
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
High-Performance Pneumatic Valves:Reliable and responsive pneumatic valves ensure fast switching, stable operation, and long service life.
High-Torque Pneumatic Actuators:High-torque aluminum alloy pneumatic actuators provide smooth, reliable operation.
High-Performance Desiccant:Premium desiccant offers excellent adsorption capacity and abrasion resistance, ensuring a stable dew point over long-term operation with minimal dusting.
Intelligent Programmable Control:Equipped with a fully electronic programmable controller featuring an intuitive interface for easy operation and maintenance.
Low-Noise Operation:Low-noise check valves and high-performance silencers minimize operating and exhaust noise.
Automatic Repressurization:Before valve switching, the system automatically repressurizes and equalizes the pressure between the vessels. This ensures stable vessel pressure, minimizes pressure fluctuations and impact on the desiccant, and helps extend desiccant service life.
It uses high-performance pneumatic valves, good adsorbent materials, and electronic controllers, which are simple to operate, have low operating noise, and have long service life.
