As China’s Dual Carbon initiative continues to accelerate alongside the country’s Western Development Strategy, improving the energy efficiency of industrial utility systems has become a key driver of sustainable, high-quality manufacturing. For the textile industry—one of the leading economic sectors in Northwest China—upgrading compressed air systems to deliver cleaner, more energy-efficient air offers significant economic and environmental benefits.
Recently, Guangdong Lingyu Energy Equipment Co., Ltd. successfully completed the delivery of a multi-million-yuan project. Four 1,600 m³/min Zero Purge Heat-of-Compression (HOC) Desiccant Air Dryers have been installed and commissioned for the centralized compressed air supply system of a large state-owned integrated energy enterprise in Northwest China.
The complete system is now operating under full-load conditions, providing a stable and reliable source of dry process air for textile manufacturing while delivering substantial energy savings and supporting the customer’s long-term low-carbon development goals.
Supporting Low-Carbon Textile Manufacturing Through Optimized Energy Infrastructure
The customer is a large state-owned integrated energy enterprise specializing in power generation, electricity distribution, district heating, and industrial steam transmission. Its industrial steam network primarily serves regional textile industrial parks, where production runs continuously throughout the year.
Because of the high-volume, around-the-clock compressed air demand, the customer required a drying system capable of delivering:
- Outstanding operational stability
- High energy efficiency
- Long service life with minimal maintenance
However, the existing conventional desiccant dryers faced significant challenges under Northwest China’s harsh operating conditions, characterized by large day-to-night temperature fluctuations and continuous heavy-duty production.
The previous system suffered from several critical issues:
- Regeneration consumed a large volume of finished compressed air, resulting in high compressor energy consumption.
- Fluctuating pressure dew points caused moisture accumulation inside pipelines, leading to corrosion, condensate formation, and quality defects in yarns and fabrics.
- Frequent equipment shutdowns and maintenance disrupted continuous production across the industrial park.
Customized High-Capacity Drying Solution

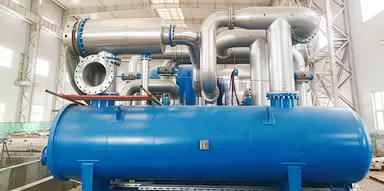

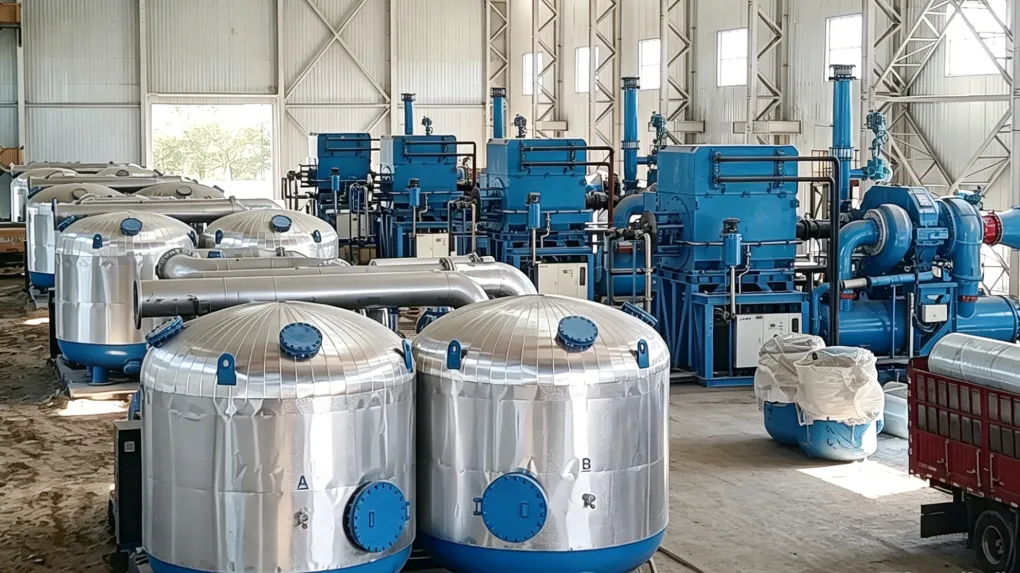

Following multiple rounds of technical evaluation and operating condition analysis, Lingyu developed a customized solution consisting of four Zero Purge Heat-of-Compression Desiccant Air Dryers, each with a treatment capacity of 1,600 m³/min, serving as the primary compressed air treatment equipment for the production facility.
The dryers regenerate the desiccant by utilizing the high-temperature waste heat from the air compressor discharge. Neither the heating regeneration cycle nor the cooling process consumes finished compressed air, significantly improving overall system efficiency.
With four dryers operating in parallel, the installation fully satisfies the park’s peak compressed air demand while delivering exceptional performance under demanding textile production conditions.
Key Advantages
1. High Energy Efficiency
Significantly Lower Operating Costs
Designed specifically for textile plants operating 24 hours a day, the Heat-of-Compression adsorption regeneration technology eliminates the need for purge compressed air during regeneration.
Compared with conventional desiccant dryers, the system delivers more than 55% energy savings, substantially reducing compressor power consumption and lowering long-term operating costs.
2. Reliable Dry Air Supply
Protecting Textile Product Quality
The dryers achieve a pressure dew point of up to −40°C, effectively eliminating moisture from the compressed air system at its source.
This ensures stable production quality by preventing problems such as:
- Yarn moisture absorption and sticking
- Fabric mildew and moisture damage
- Product defects caused by wet compressed air
To further enhance system reliability, the compressed air piping adopts hot-dip galvanized construction, providing up to 10 years of corrosion protection, minimizing pipeline deterioration and reducing the risk of supply interruptions.
3. Intelligent Control System
Optimized Performance Under Variable Demand
Each dryer is equipped with a Siemens touchscreen-based fully automatic control system.
The intelligent controller continuously adjusts operating conditions according to real-time compressed air demand, while a proportional control valve precisely regulates regeneration airflow.
The system operates efficiently across a load range of 30% to 110%, ensuring stable air supply throughout varying production cycles and supporting intelligent manufacturing operations.
End-to-End Quality Assurance and Turnkey Project Delivery
Considering the project’s remote location, large equipment size, and complex system integration requirements, Lingyu established a comprehensive quality management process covering every stage of the project.

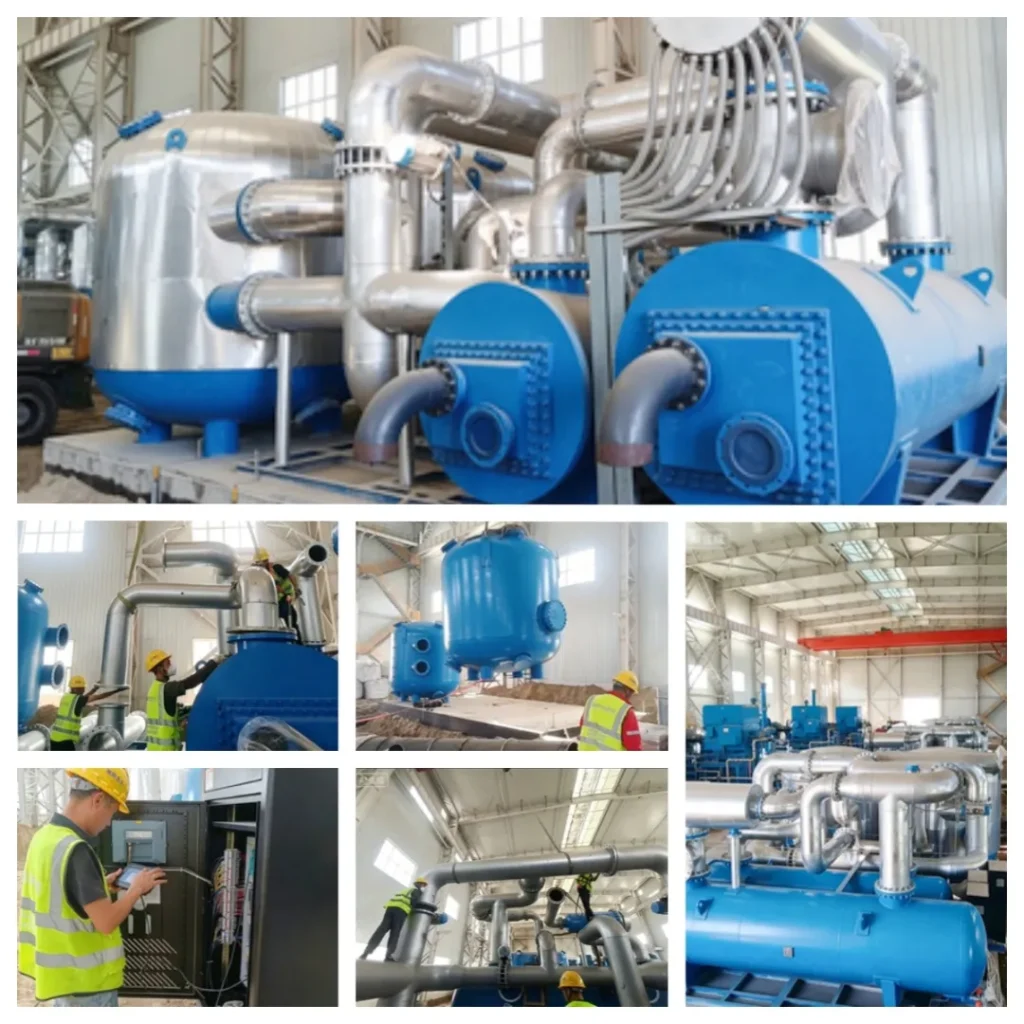

Each dryer underwent multiple rounds of factory performance testing before shipment. Customized transportation protection plans were implemented, while Lingyu’s professional service engineers supervised on-site installation, commissioning, and system startup.
Through this integrated project management approach, the customer received a complete turnkey solution—from manufacturing to final commissioning—delivered on schedule.
Driving the Green Transformation of Industrial Compressed Air Systems
The successful commissioning of this large-scale energy-saving project marks another milestone in Lingyu’s capability to deliver complete industrial compressed air treatment solutions for major infrastructure and integrated energy projects.
It also demonstrates the growing strength of Chinese-manufactured compressed air treatment equipment in supporting large-scale low-carbon industrial air supply systems.
Looking ahead, Lingyu will continue to align with China’s Dual Carbon strategy by focusing on energy-efficient compressed air systems and advanced industrial drying technologies.
Through continuous innovation, intelligent manufacturing, and comprehensive project delivery capabilities, Lingyu remains committed to providing customers worldwide with reliable, energy-saving compressed air treatment solutions that support the sustainable development of modern industry.
