Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).
Compact Capacity Range – Choose from 25, 35, or 50 CFM to match your compressor flow.
Air-Cooled Design – No water connection required; perfect for facilities without cooling water.
Stable Dew Point Control – Maintains 2–10°C (35.6–50°F) dew point for consistent dryness.
Energy Efficient – Equipped with low-power refrigeration systems for cost savings.
Automatic Drain Valve – Discharges moisture automatically.
Plug-and-Play Setup – Quick installation and operation in limited spaces.
Durable Construction – Built with powder-coated steel and corrosion-resistant components.
High-temperature compressed air containing moisture and oil first enters the air-cooled pre-cooler and the air-to-air heat exchanger, where it is pre-cooled to reduce its temperature. It then passes through the air-to-refrigerant evaporator, where the compressed air is cooled to a dew point of 2–10°C. During cooling, moisture, oil, and some impurities condense and are separated from the compressed air by the gas-liquid separator. The condensate is then discharged through an automatic drain valve. Finally, the dry compressed air passes through the air-to-air heat exchanger, where it is reheated to near ambient temperature, providing clean, dry compressed air for downstream use.
Inlet Air Pressure: 4 – 10 bar (58 – 145 psi)
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5 – 45°C (41 – 113°F)
Installation: Indoor, well-ventilated, clean area
Recommended Filters: Use pre- and post-filters for best performance
| Model | Rated Flow | Cooling Method | Refrigerant | Max Pressure | Dew Point | Power Supply | Connection Size | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| 25 CFM | 25 CFM | Air Cooled | R134a / R410A | 10 bar | 2–10°C | 220V / 1Ph / 50Hz | ½” NPT | 500×350×550 | 28 kg |
| 35 CFM | 35 CFM | Air Cooled | R134a / R410A | 10 bar | 2–10°C | 220V / 1Ph / 50Hz | ¾” NPT | 550×370×600 | 32 kg |
| 50 CFM | 50 CFM | Air Cooled | R134a / R410A | 10 bar | 2–10°C | 220V / 1Ph / 50Hz | ¾” NPT | 600×400×650 | 38 kg |

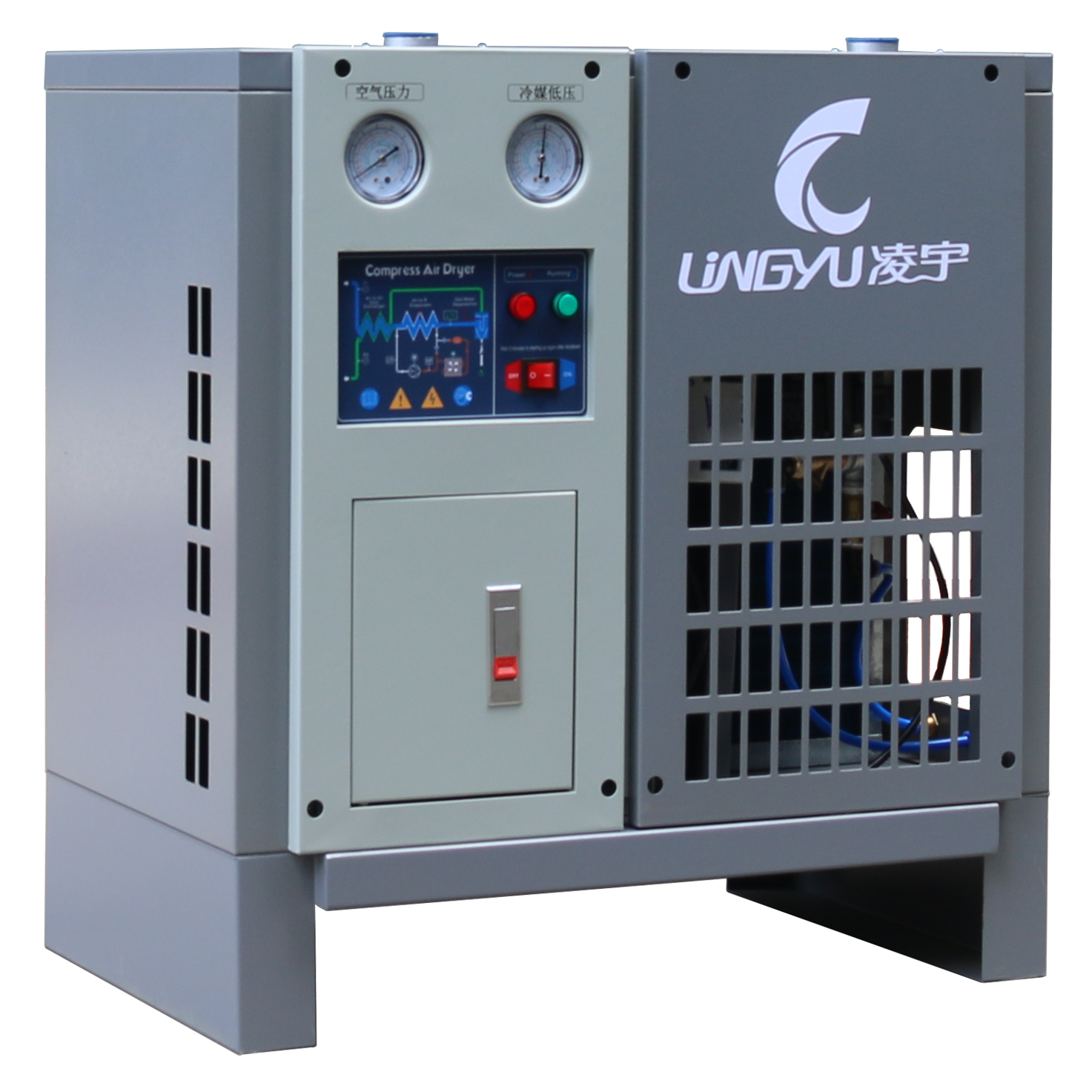

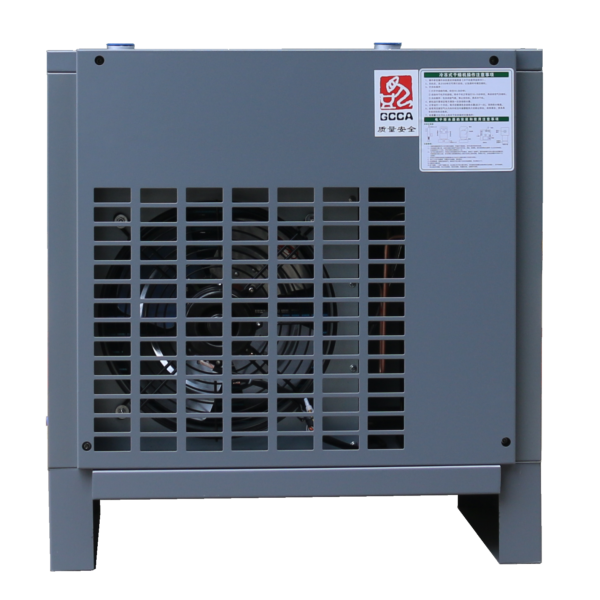

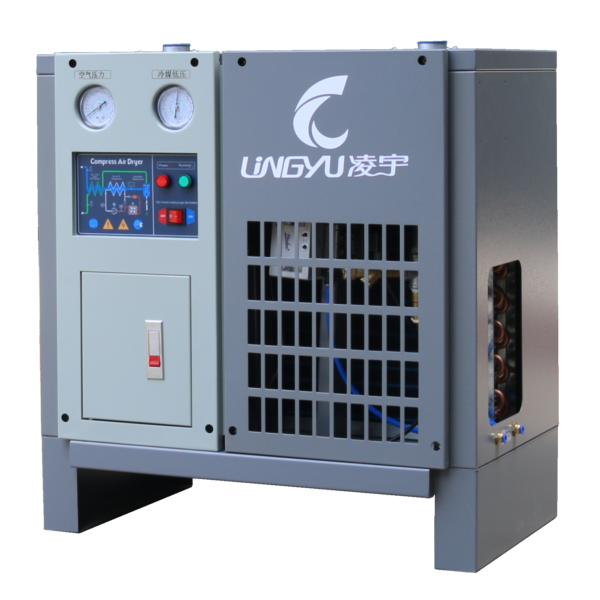

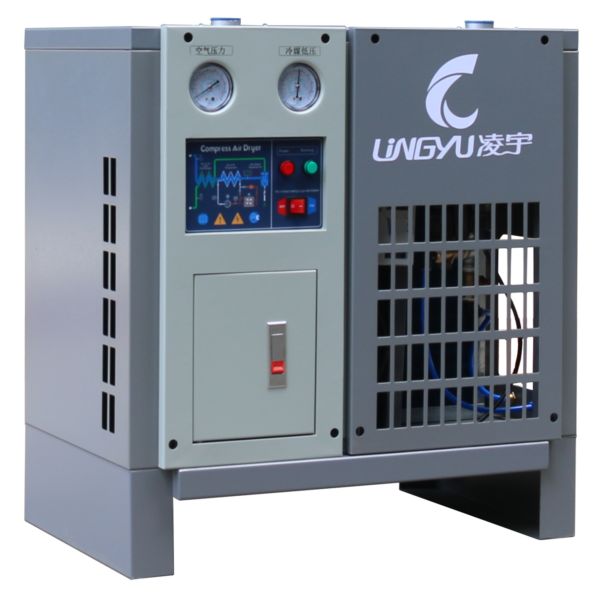

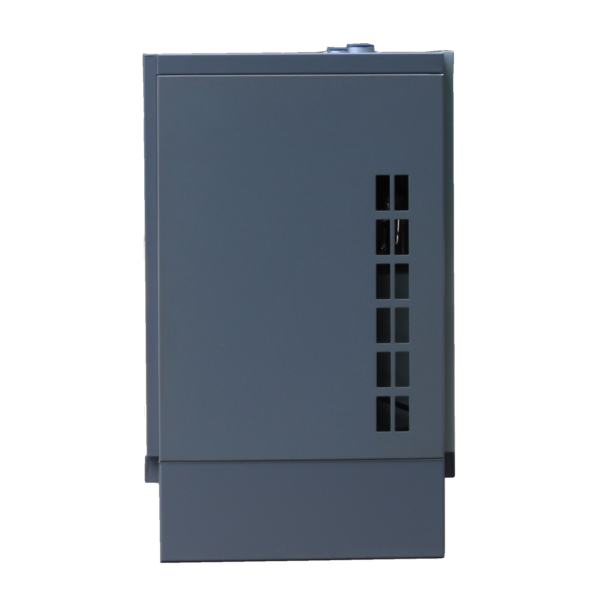

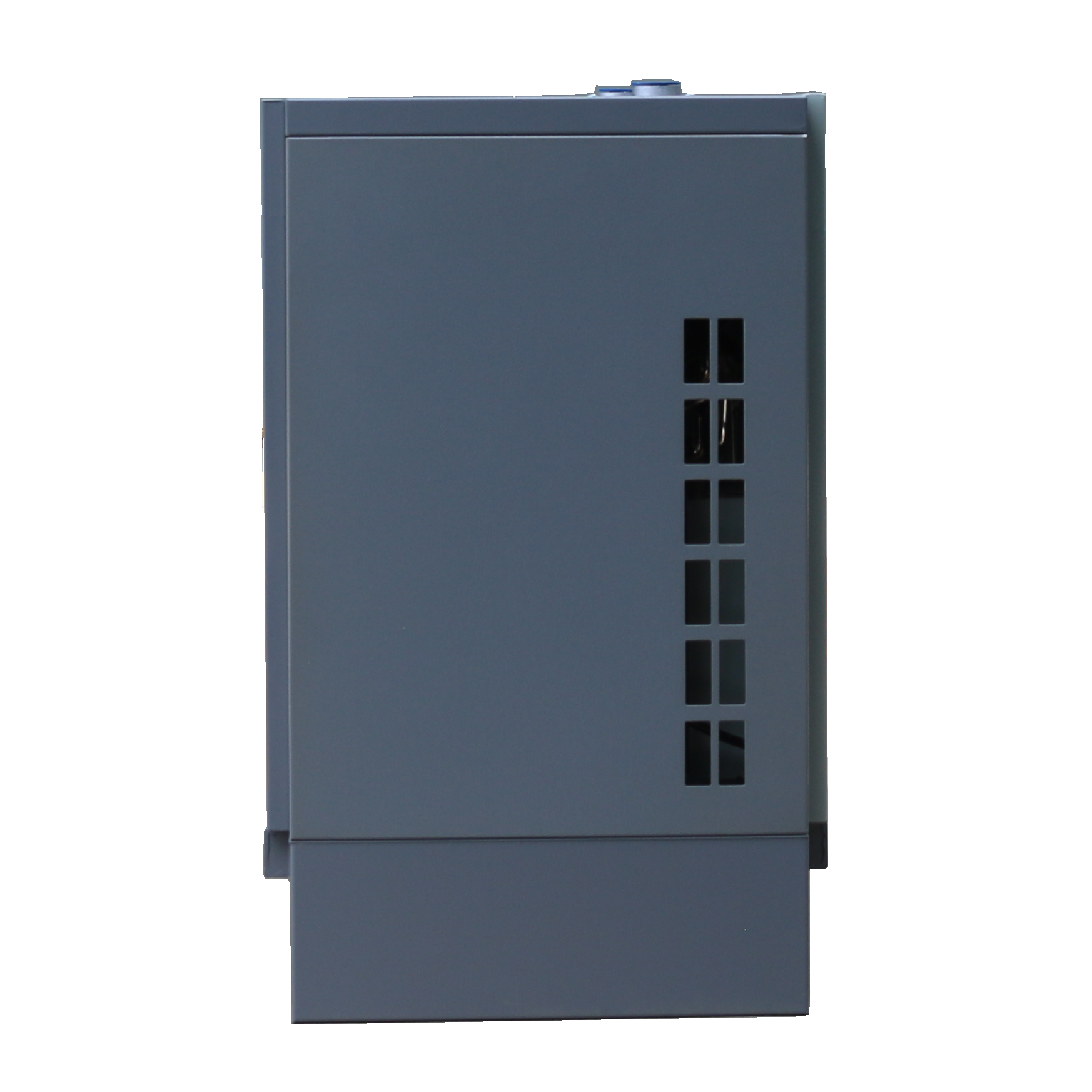

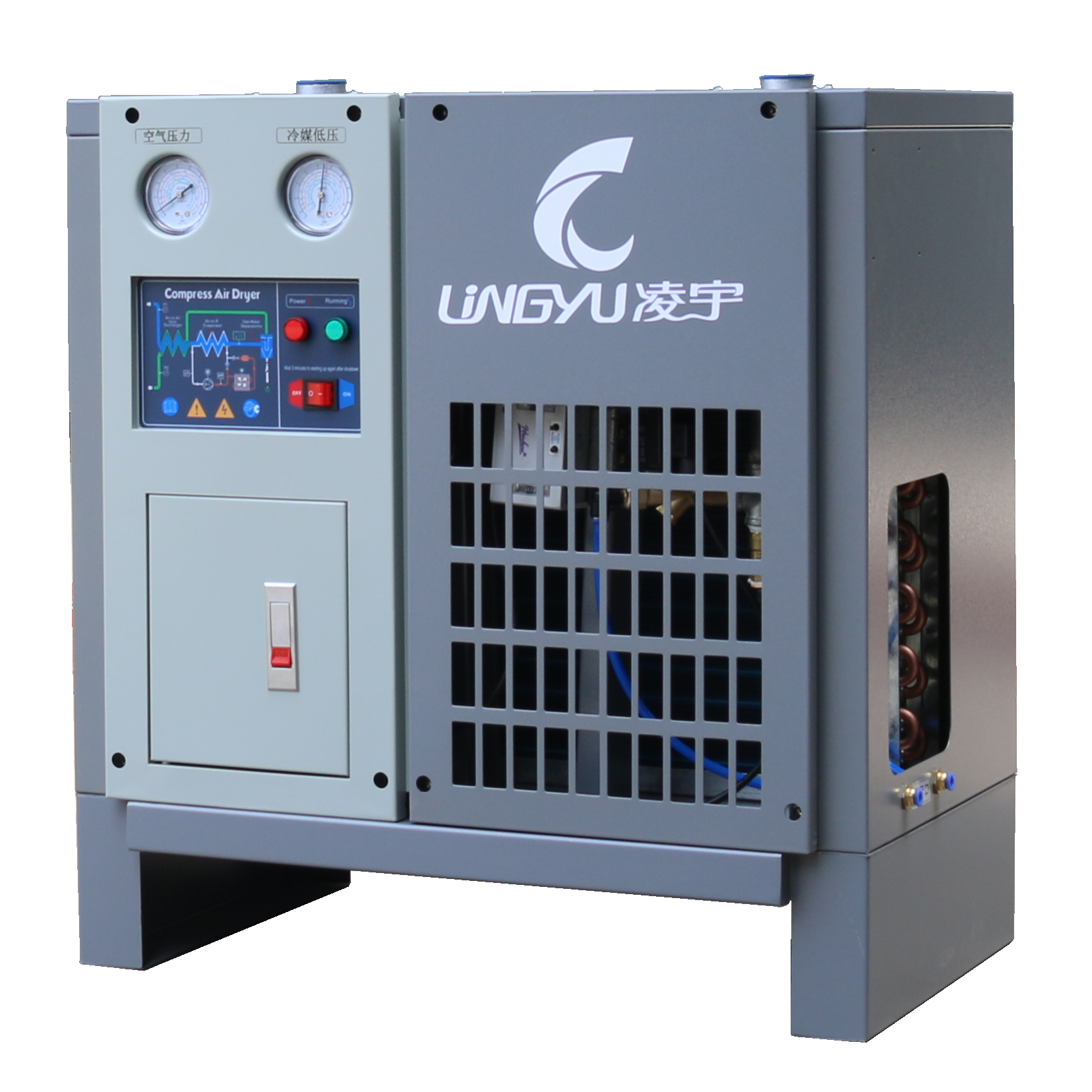

The Lingyu 25/35/50 CFM Refrigerated Air Dryer (Air Cooled) is suitable for:
🧰 Small Workshops: Prevent rust and moisture in air tools and painting systems
🏭 Light Manufacturing: Ensure dry air for packaging, automation, and pneumatic systems
🚗 Auto Repair Shops: Extend tool life and improve air compressor performance
🖨️ Printing & Electronics: Maintain clean, dry air in precision processes
🧪 Laboratories: Supply dry compressed air for sensitive instruments
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
High Processing Capacity: Handles compressed air volumes up to 1130 SCFM, ideal for large-scale systems.
Air Cooled System: Eliminates the need for water cooling infrastructure, reducing installation and operational costs.
Stable Dew Point: Maintains a reliable pressure dew point between 2–10°C (35.6–50°F), preventing condensation and corrosion.
Efficient Refrigeration Circuit: Equipped with a durable scroll or rotary compressor for low energy consumption.
User-Friendly Interface: Real-time monitoring, alarms for high temperature, and system status indicators.
Automatic Condensate Drain: Ensures consistent moisture discharge without manual intervention.
The 1130 SCFM refrigerated air dryer (air cooled) is engineered for performance, reliability, and long-term value.
Capacity: Precisely rated for 100 CFM, ensuring optimal moisture removal for consistent compressed air quality.
Air Cooled Design: No need for water cooling infrastructure — plug and play installation.
Energy Efficient: Incorporates a high-efficiency refrigeration compressor and heat exchanger to reduce power consumption.
Compact & Durable: Space-saving footprint with a heavy-duty steel casing for long-term durability.
Low Dew Point: Delivers a stable pressure dew point as low as 2–10°C (35.6–50°F).
Automatic Drain Valve: Prevents liquid buildup and minimizes maintenance time.
Simple Controls: User-friendly interface with operating indicators and safety alarms.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1 bar;
Frequency conversion energy saving: Brand inverter, frequency conversion range 30Hz~90Hz, by changing the electromechanical frequency of the dryer to match the actual working conditions;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensure the machine runs in the best state, and standard RS-485 communication interface.
Good treatment effect: equipped with an independent water distribution system and it is a multiple upgraded version, the water distribution efficiency is guaranteed;
Wide application conditions: hydrophilic aluminum foil is used, and the whole series is equipped with heat exchangers and pre-coolers as standard, which can better adapt to harsh working conditions
Wide application conditions: hydrophilic aluminum foil is used, and the whole series is equipped with heat exchangers and pre-coolers as standard, which can better adapt to harsh working conditions
Customized according to needs: color can be customized, PLC is optional, dry contacts, Modbus communication, Internet of Things communication, etc. can be customized according to customer needs
