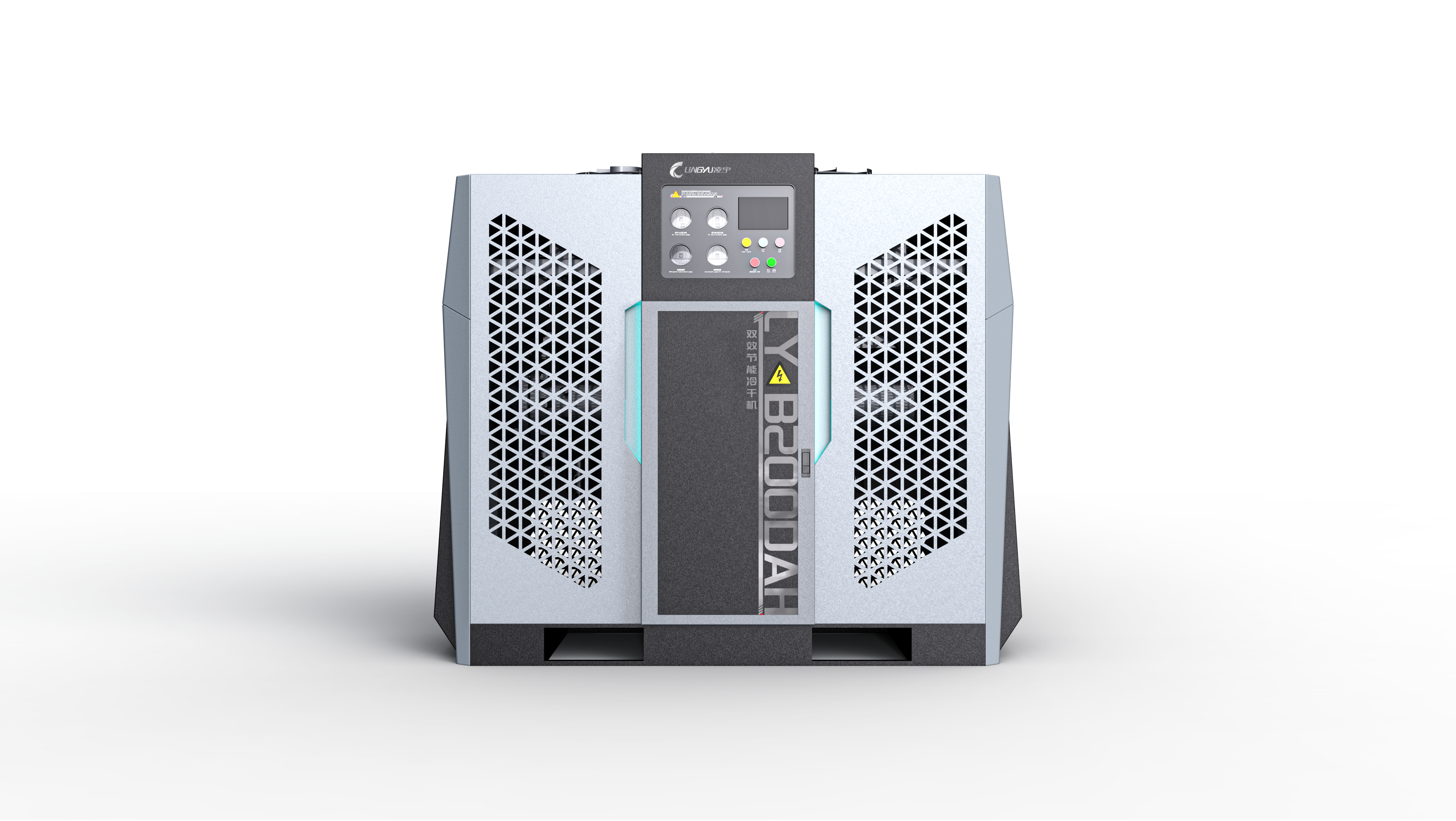

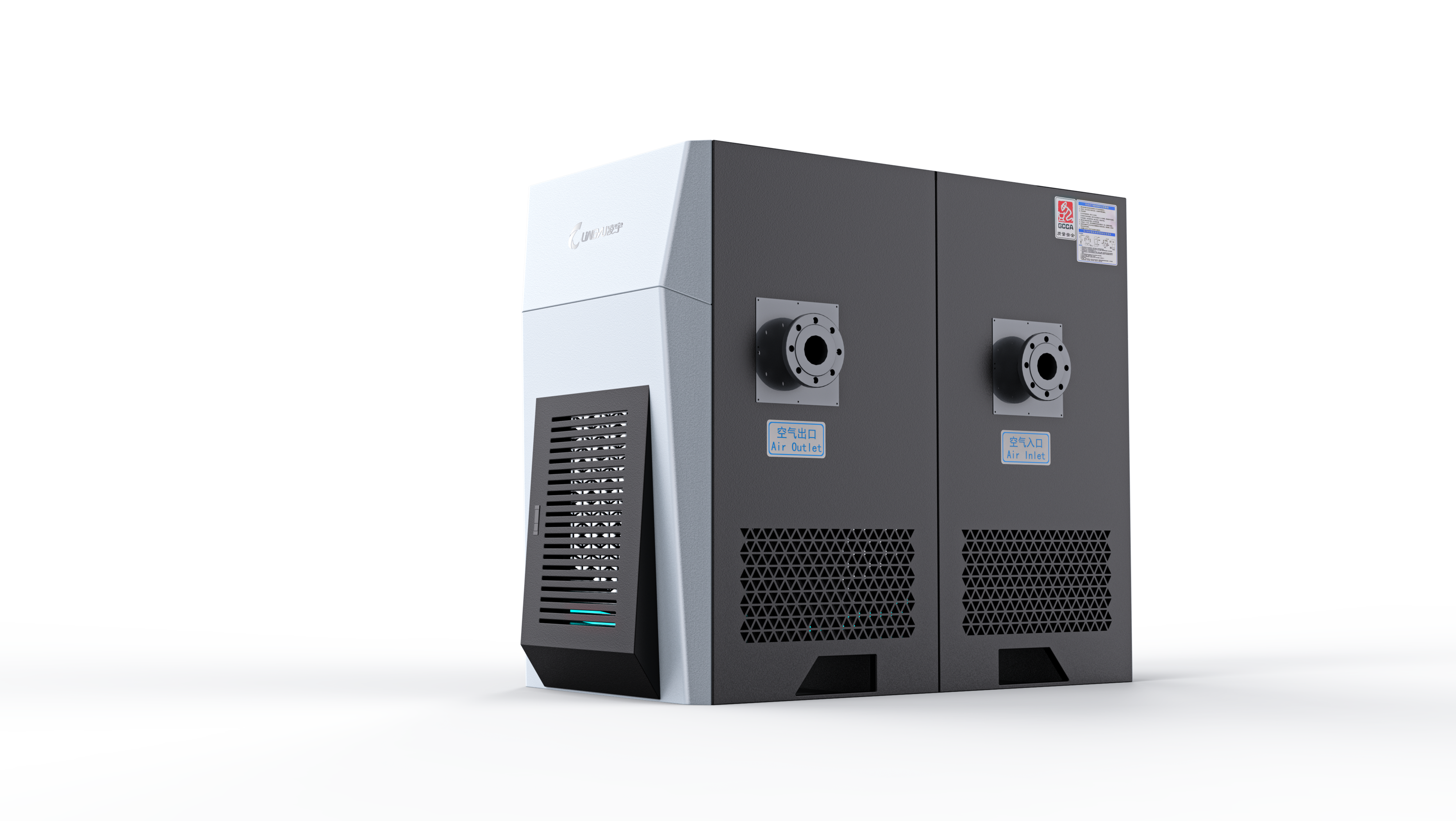

Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).
The compressed air first enters the pre-cooler for initial cooling, and then passes through the pre-cooling/reheating section of the high-performance 3-in-1 plate heat exchanger for further cooling. It subsequently enters the evaporator section, where it is rapidly cooled and the condensed moisture is separated.The treated low-temperature compressed air then returns to the pre-cooling/reheating heat exchanger, where it exchanges heat with the incoming hot compressed air. This reheats the dry compressed air before it is discharged from the dryer.The refrigeration system precisely adjusts the compressor speed according to changes in system load. The operating frequency is automatically regulated to match the actual air treatment demand, ensuring stable and energy-efficient operation.
Pre-Cooler
The pre-cooler reduces the temperature of high-temperature compressed air. To achieve high heat transfer efficiency within a compact structure, a plate-fin heat exchanger is used. Its aluminum alloy construction provides excellent thermal conductivity, high heat transfer efficiency, and a compact design.
High-Performance 3-in-1 Plate Heat Exchanger
A specially engineered 3-in-1 plate heat exchanger has been developed for this series. It features a low pressure drop and large heat transfer area, with more than 30% greater heat transfer area than conventional 3-in-1 plate heat exchangers of the same air flow capacity.
Variable-Frequency Control System
The control program is specially optimized for this series, providing high control accuracy, fast response, and comprehensive real-time monitoring. Parameters monitored include compressed air inlet and outlet temperatures, pressure dew point, compressed air pressure, evaporation temperature, condensing temperature, suction temperature, evaporation pressure, condensing pressure, and refrigerant discharge temperature. An RS-485 communication interface is standard across the entire series.
Variable-Frequency Compressor
For enhanced operating stability, the entire series is equipped with Mitsubishi permanent-magnet DC inverter compressors. These compressors feature smooth operation, a wide frequency range, and low noise. The internal rotor is treated with an anti-wear coating, ensuring stable output even at ultra-high operating speeds.
To ensure stable performance and reliable long-term operation, the Frequency Conversion Refrigerated Air Dryer should be used under the following recommended conditions:
For the best drying result, the dryer should be installed in a well-ventilated environment with stable inlet conditions. Proper pre-filtration is recommended to protect the internal heat-exchange system and maintain efficient condensate separation over long-term operation.
| Model | Airflow Capacity (m³/min) | Motor Power (kW) | Inlet Size | Weight (kg) | Overall Dimensions (L × W × H, mm) |
|---|---|---|---|---|---|
| LY-PB200AH | 28.5 | 1.5–5.5 | DN80 | 310 | 1500 × 950 × 1600 |
| LY-PB250AH | 32.0 | 1.5–6.2 | DN80 | 340 | 1500 × 950 × 1600 |
| LY-PB300AH | 37.0 | 2.1–7.8 | DN100 | 420 | 1750 × 1050 × 1825 |
| LY-PB400AH | 45.0 | 2.5–9.2 | DN100 | 460 | 1750 × 1050 × 1825 |
| LY-PB500AH | 55.0 | 3.1–10.5 | DN125 | 530 | 2100 × 1050 × 2000 |
| LY-PB600AH | 65.0 | 3.5–11.8 | DN125 | 585 | 2100 × 1050 × 2000 |
| LY-PB700AH | 75.0 | 3.8–14.5 | DN125 | 690 | 2200 × 1200 × 2180 |
| LY-PB800AH | 85.0 | 4.2–15.8 | DN125 | 720 | 2200 × 1200 × 2180 |
| LY-PB900AH | 90.0 | 5.0–18.5 | DN150 | 810 | 2400 × 1400 × 2410 |
| LY-PB1000AH | 100.0 | 6.2–21.5 | DN150 | 855 | 2400 × 1400 × 2410 |
| LY-PB1100AH | 110.0 | 6.5–23.5 | DN150 | 890 | 2400 × 1400 × 2410 |
| LY-PB1200AH | 120.0 | 7.0–24.5 | DN150 | 925 | 2400 × 1400 × 2410 |
| Model / Specification | Airflow Capacity (m³/min) | Input Power (kW) | Connection Size | Weight, A/W (kg) | Overall Dimensions, L × W × H (mm) |
|---|---|---|---|---|---|
| LY-PB100AN/WN | 13.5 | 1.1–3.5 | DN65 | 220 / 230 | 1250 × 800 × 1400 |
| LY-PB120AN/WN | 17.5 | 1.25–4.2 | DN65 | 245 / 255 | 1400 × 800 × 1600 |
| LY-PB150AN/WN | 22.0 | 1.4–5.1 | DN80 | 255 / 265 | 1400 × 800 × 1600 |
| LY-PB200AN/WN | 28.5 | 1.5–5.8 | DN80 | 280 / 280 | 1500 × 950 × 1600 |
| LY-PB250AN/WN | 32.0 | 1.52–6.2 | DN80 | 295 / 310 | 1500 × 950 × 1600 |
| LY-PB300AN/WN | 37.0 | 2.1–7.8 | DN100 | 350 / 365 | 1750 × 1050 × 1825 |
| LY-PB400AN/WN | 45.0 | 2.5–9.2 | DN100 | 380 / 390 | 1750 × 1050 × 1825 |
| LY-PB500AN/WN | 55.0 | 3.1–10.5 | DN125 | 450 / 465 | 2100 × 1050 × 2000 |
| LY-PB600AN/WN | 65.0 | 3.5–11.8 | DN125 | 480 / 490 | 2100 × 1050 × 2000 |
| LY-PB700AN/WN | 75.0 | 3.8–14.5 | DN125 | 580 / 585 | 2200 × 1200 × 2180 |
| LY-PB800AN/WN | 85.0 | 4.2–15.8 | DN125 | 610 / 620 | 2200 × 1200 × 2180 |
| LY-PB900AN/WN | 90.0 | 5.0–18.5 | DN150 | 715 / 730 | 2400 × 1400 × 2410 |
| LY-PB1000AN/WN | 100.0 | 6.2–21.5 | DN150 | 750 / 770 | 2400 × 1400 × 2410 |
| LY-PB1100AN/WN | 110.0 | 6.5–23.5 | DN150 | 780 / 820 | 2400 × 1400 × 2410 |
| LY-PB1200AN/WN | 120.0 | 7.0–24.5 | DN150 | 810 / 850 | 2400 × 1400 × 2410 |
Note: For capacities above 120 m³/min, or for special requirements related to materials or inlet temperature, customized solutions are available. All data is subject to change without prior notice.
The Frequency Conversion Refrigerated Air Dryer is widely used in industries that require clean, dry compressed air together with stable dew point performance and reduced energy consumption.
Provides dry compressed air for pneumatic components, cutting systems, and automated machining equipment, helping improve system stability and reduce moisture-related wear.
Suitable for sensitive production environments where moisture control is essential for product quality, equipment protection, and process consistency.
Supplies dry compressed air for spray painting, robotic systems, and assembly lines, helping improve coating quality and reduce defects caused by moisture.
Used in packaging, conveying, and process air systems where clean and dry compressed air supports hygiene standards and stable production performance.
Suitable for compressed air applications that require reliable moisture removal, stable air quality, and consistent equipment performance in controlled industrial environments.
Helps maintain clean and stable compressed air for printing machines, packaging systems, and automated production lines, improving efficiency and reducing downtime.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
Rated Air Flow
Handles compressed air flow up to 75 CFM, ensuring effective dehumidification.
Air-Cooled System
No water cooling required, simplifying installation and maintenance.
Stable Dew Point
Maintains a consistent 2–10°C (35.6–50°F) pressure dew point for dry, reliable air.
Low Energy Consumption
Optimized refrigeration components minimize power usage while maintaining performance.
Automatic Drain Valve
Continuously removes condensate to prevent water accumulation in the system.
Compact & Durable Design
Space-saving enclosure with powder-coated steel housing ensures long service life.
Easy Operation
Plug-and-play setup with simple control interface and indicator lights.
High Volume Capacity: Supports compressed air flow rates up to 1340 SCFM, ideal for large-scale operations.
Water Cooled System: Efficient heat removal through water circulation, reducing electrical load and improving cooling performance in hot environments.
Stable Dew Point Performance: Delivers consistent pressure dew point between 2–10°C (35.6–50°F).
Energy Efficient: Lower power consumption than air-cooled units in environments with available cooling water.
Compact Design: Smaller footprint compared to equivalent air-cooled models.
Automatic Drain System: Timely removal of condensate to prevent internal water accumulation.
Heavy-Duty Construction: Industrial-grade steel cabinet with rust-resistant finish.
The 1340 SCFM refrigerated air dryer (water cooled) is built for intensive-duty cycles and stable long-term operation.
High Stability:Key heat exchangers are manufactured in-house. Refrigeration compressors are mainly sourced from well-known brands such as Panasonic, Copeland, Danfoss, and Hanbell, together with high-quality refrigeration components.
High-Efficiency Moisture Separation:Equipped with an independently designed and continuously upgraded water separation system, ensuring reliable and efficient moisture removal.
Wide Operating Range:Hydrophilic aluminum foil is used, while heat exchangers and pre-coolers are standard across the entire series, ensuring reliable operation even under demanding conditions.
Intelligent Dual-Compressor Design:Models from 5 to 180 m³/min feature a 1+1 dual-compressor configuration. The second compressor automatically starts or stops according to system load, improving energy efficiency and adapting to applications with significant fluctuations in air demand.
High Customization Capability:Custom colors and optional PLC control are available. Dry contacts, Modbus communication, IoT connectivity, and other functions can also be customized to meet specific customer requirements.
Low energy consumption: the three-in-one plate heat exchanger is adopted, and the whole machine can save 20~30% of energy consumption;
Low pressure drop: the pressure loss of the whole machine is less than 0.015MPa, which is lower than the national standard;
Low dew point: under standard working conditions, the pressure dew point is as low as 2~10℃, and the electronic bypass valve is adopted, making the system more stable;
Environmentally friendly and durable: the whole series adopts environmentally friendly refrigerant R410a/R407C, which meets international environmental standards and has a maximum pressure of 1.6MPa;
