From manufacturing to pharmaceuticals, the quality of air in the compressed air system is a make-or-break deal for industrial operations. Moisture and contamination in the air can damage the equipment and cause product spoilage and a decrease in overall efficiency. Compressed air dryers are used to maintain high-quality air.
Among various types of compressed air dryers, the main types include refrigerated air dryers and desiccant air dryers. They remove impurities and moisture and provide dry and clean air. However, choosing the right air dryer specific to an industry is an important decision that one can take to ensure optimal performance.
Let’s dive deeper and understand some of the key differences, features, and benefits of both types of compressed air dryers and select which one is the right dryer for a specific industry.
Do I Need an Air Dryer for Compressed Air?
A compressed air dryer is a piece of equipment that removes impurities and moisture from the compressed air. As air undergoes compression, the level of water vapor rises significantly. This moisture can lead to various issues, potentially resulting in system malfunctions. Therefore, air dryers are essential for ensuring that the air remains clean and dry.
If we don’t have a good air dryer for our compressed air system, it can pose several risks, such as:
- Rust and corrosion, which damage pipes, tools, and other machinery.
- The performance of our pneumatic equipment is severely affected,which can even increase our overall operational costs.
- In the food, pharmaceutical, and electronic industries, moisture can cause contamination. It affectsproduct safety and quality, damaging our brand reputation and the health of the people likewise.
- We may have to experience costly downtime and repairs as excess moisture can cause blockades and freeze in the symptoms.
Choosing the right dryer that caters to our specific industry needs will protect our equipment and ensure consistent product quality while reducing maintenance costs. But how do we choose between a refrigerated air dryer or a desiccant air dryer?
Refrigerated Air Dryer vs. Desiccant Air Dryer
The main function of both refrigerated air dryers and desiccant air dryers is the same – to remove moisture from the compressed air. However, both of these dryers work on different principles and have distinct advantages. Here is a brief overview：
Refrigerated Air Dryer: It works by cooling the compressed air to a low temperature. The next steps are moisture condensation and removal. We use this type of dryer in general-purpose applications where dew points of around 37°F are sufficient. A refrigerated compressed air dryer is the most commonly used type because of its budget-friendly and low-maintenance features.
Desiccant Air Dryer: This type of dryer uses desiccant to absorb the moisture from the air. It is ideal for application in industries that require extremely low dew points.
Below is a comparison table that highlights the major differences between the refrigerated air dryer and desiccant air dryer:
Refrigerated vs. Desiccant Air Dryer | ||
| Refrigerated Air Dryer | Desiccant Air Dryer | |
Principle | Cools air to condense moisture | Uses desiccant materials to adsorb moisture |
Typical Dew Point | Around +37°F | -40°F or lower |
Energy Consumption | Moderate | Higher due to regeneration requirements |
Initial Investment Cost | Lower | Higher |
Maintenance | Low replacement frequency, primarily filter changes | Requires regular desiccant replacement and system checks |
Operating Complexity | Simple, user-friendly | More complex and requires careful monitoring |
Main Advantages | Cost-effective and easy to maintain | Provides very dry air and is suitable for sensitive applications |

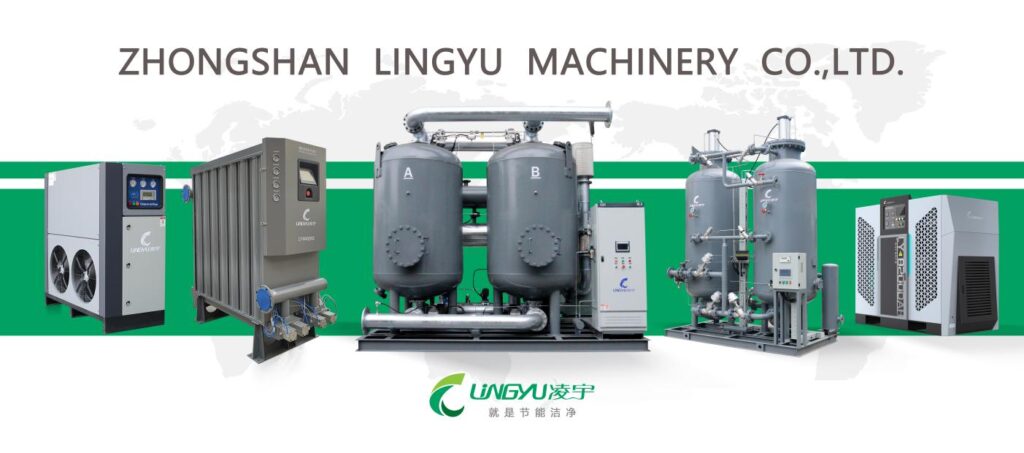

One-stop Compressed Air Treatment Solutions by Lingyu
When we are out there in search of the right air dryer for compressed air, we have to ensure that we are investing in the right equipment. It is very crucial for boosting the performance of your air compressor system. That’s where Lingyu comes in. As a leading compressed air dryer manufacturer, Lingyu offers solutions that fit the unique needs of industries worldwide.
With years of experience under our belt, we are an expert in refrigeration dryers, desiccant dryers, and combined compressed air dryers. Our core focus on innovation is not just to keep up with the times but to set the pace.
With over 2800 satisfied customers, we are a trusted partner when it comes to top-of-the-line compressed air treatment solutions. Our one-stop OEM services cater to your specific needs, offering refrigerated, desiccant, and combined options. Plus, our exceptional customer support provides ongoing maintenance. To learn more about tailored air treatment solutions, click here!
