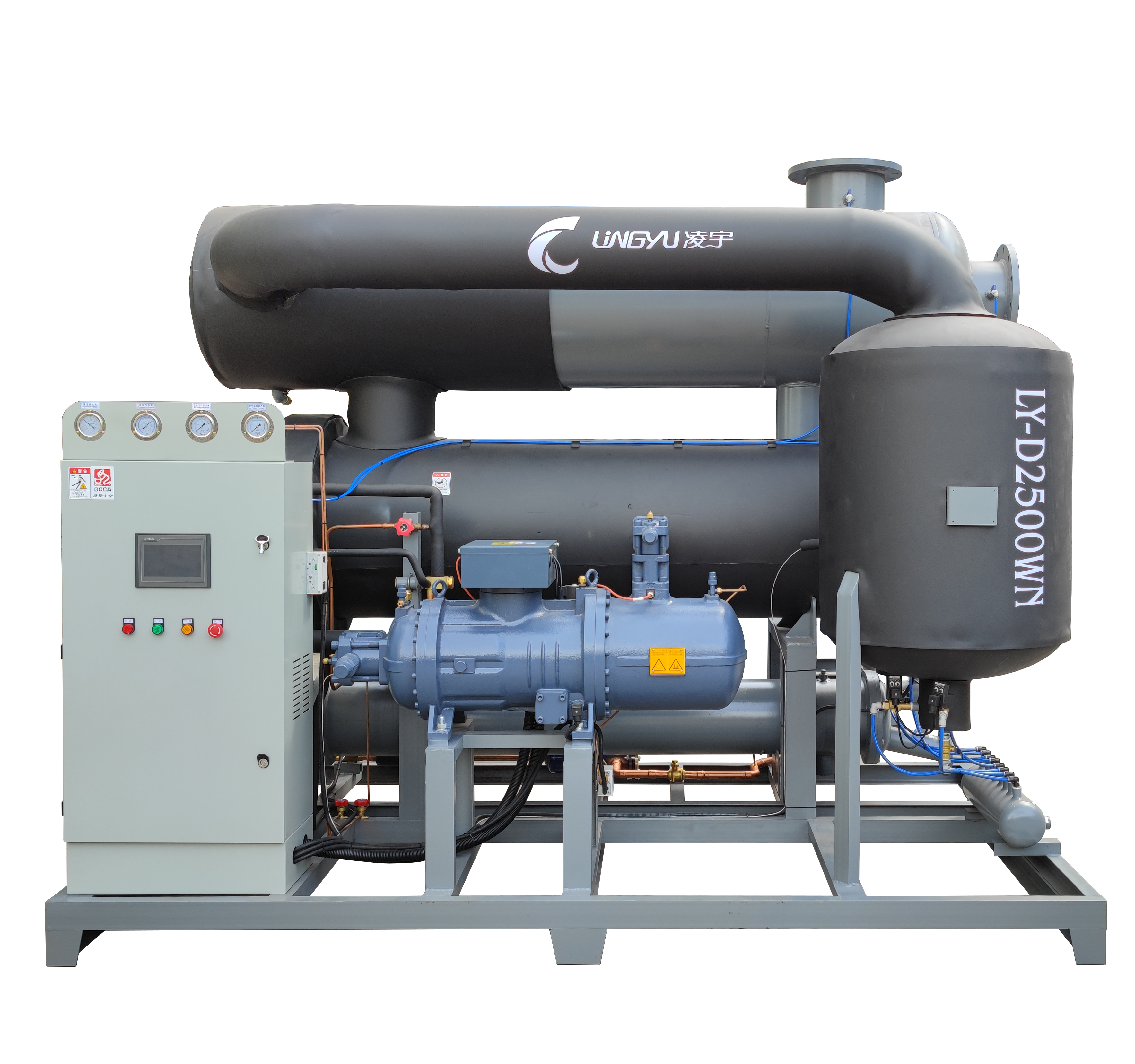

The air dryer refrigeration system is an essential component in compressed air treatment, designed to efficiently remove water vapor from compressed air. By using advanced refrigeration technology, our air dryer refrigeration system ensures a consistent pressure dew point, protecting downstream equipment from corrosion, contamination, and moisture damage. Whether in industrial manufacturing, food processing, or pharmaceutical applications, our system delivers reliable performance and energy efficiency.
Key Features of Our Air Dryer Refrigeration System
Efficient Moisture Removal
The air dryer refrigeration system removes up to 99% of water vapor, keeping your compressed air system dry and clean.Stable Dew Point Control
Maintains a consistent dew point between +2°C and +5°C, ensuring operational stability across a range of applications.Energy-Saving Operation
Intelligent temperature and pressure controls reduce energy consumption without compromising performance.Low Maintenance Design
Built-in automatic drains, corrosion-resistant heat exchangers, and accessible components ensure minimal maintenance.Environmentally Friendly Refrigerants
Utilizes eco-safe refrigerants such as R134a and R410A, meeting international environmental standards.Compact and Modular Structure
Easy to integrate with new or existing compressed air systems thanks to its space-saving design.
Operating Conditions & Technical Requirements
To ensure optimal function of the air dryer refrigeration system, the following working conditions must be met:
| Parameter | Requirement |
|---|---|
| Inlet Air Temperature | 5°C – 45°C (41°F – 113°F) |
| Ambient Temperature | 5°C – 40°C (41°F – 104°F) |
| Operating Pressure | 4 – 10 bar (58 – 145 psi) |
| Pressure Dew Point | +2°C ~ +5°C |
| Cooling Method | Air-cooled or Water-cooled |
| Power Supply | 220V/1Ph or 380V/3Ph (customizable) |
Technical Specifications
Here are typical models of our air dryer refrigeration system with technical parameters:
| Model | Capacity (CFM) | Power (kW) | Cooling Type | Dew Point |
|---|---|---|---|---|
| LY-D50AH | 220 | 1.5 | Air-cooled | +3°C |
| LY-D100AH | 476 | 3.1 | Air-cooled | +3°C |
| LY-D300WH | 1306 | 6.9 | Water-cooled | +3°C |
| LY-D800WH | 3000 | 13.8 | Water-cooled | +3°C |
| LY-D1600WH | 5650 | 23.9 | Water-cooled | +3°C |
📌 Custom sizes and voltages are available upon request. Contact us for details about your required air dryer refrigeration system.
Application Scenarios
The air dryer refrigeration system is widely used in industries where clean, dry compressed air is essential:
Manufacturing Plants – Protect pneumatic tools, cylinders, and valves from moisture-related damage.
Automotive Workshops – Improve spray painting quality and air tool life.
Food & Beverage – Prevent moisture contamination in packaging and bottling lines.
Pharmaceutical Production – Ensure dry air for cleanroom environments.
Textile Industry – Eliminate moisture that may affect fabric processing.
Frequently Asked Questions (FAQ)
What is the function of an air dryer refrigeration system?
The air dryer refrigeration system removes moisture from compressed air by cooling the air and condensing water vapor into liquid, which is then drained away.
How does the air dryer refrigeration system differ from desiccant dryers?
Unlike desiccant dryers, which use adsorption to remove moisture, the air dryer refrigeration system uses a mechanical refrigeration cycle. It is more energy-efficient for applications requiring a dew point around +3°C.
How long does the air dryer refrigeration system last?
With proper maintenance, our air dryer refrigeration system can last 8–10 years or more.
Can this system handle high ambient temperatures?
Yes, models with water-cooling or built-in condensers are suitable for environments up to 45°C. Please consult us for the right air dryer refrigeration system for your location.
Is installation complicated?
Not at all. Our air dryer refrigeration system is designed for easy installation and integration into most compressed air systems.
Why Choose Our Air Dryer Refrigeration System?
✅ Factory-direct pricing
✅ Over 15 years of industry expertise
✅ CE and ISO certified
✅ Global delivery with technical support
✅ Custom engineering available
Request a Quote Now
Looking for a high-quality air dryer refrigeration system that fits your needs and budget? Contact us now to get expert advice and the best solution for your application.
